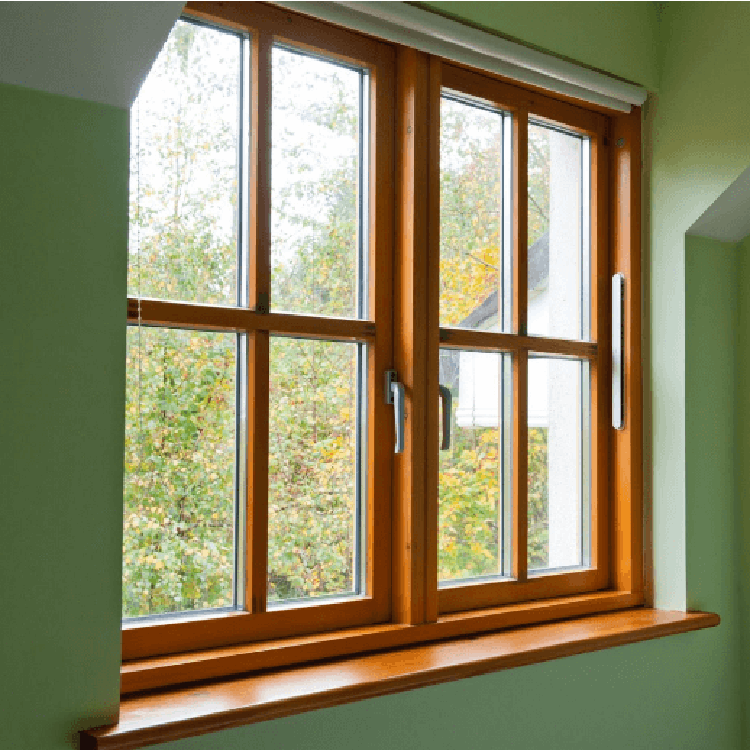

Aluminum Wood Casement Window Double Glazed – European

Large Price Grill European Design House Glass Double Glazed Australia Alu Wooden Color Casement Aluminium Windows. modern, hotel, swing, alc case window018

Design Style	modern
Application	hotel
Opening Method	swing
Model Number	alc case window018
Place of Origin	Fujian, China
Warranty	More Than 5 Years

Product Overview

Engineered for the Australian and European markets, this casement window combines a structural aluminum frame with a wood-grained color finish to complement residential architecture. Double-glazed panels and a grill design provide thermal efficiency and a traditional aesthetic, supported by an industrial-grade construction process at competitive factory pricing.

Key Specifications

Material	6063-T5 aluminum alloy frame with wood-color powder coating
Door Thickness	Frame depth 50 mm; sash depth 38 mm
Fire Rating	Not rated; meets standard residential building codes
Core	Double-glazed unit: 5 mm tempered glass + 12 mm air gap + 5 mm tempered glass
Finish	Wooden color (RAL or custom color options); powder-coated exterior
Max Size	Single sash: 600 mm (W) x 1200 mm (H); multi-sash: up to 1800 mm (W) x 1500 mm (H)
Warranty	5 years on frame and hardware

Available Options

Single, double, or triple sash configurations
Wooden color finishes: oak, walnut, mahogany, or custom RAL
Grill patterns: Georgian, prairie, or diamond
Glass options: low-E coating, argon gas fill, or laminated glass

Applications

Residential windows in Australian homes requiring thermal insulation
European-style villas and apartment buildings
Renovation projects where traditional grill aesthetics are desired
Housing developments needing cost-effective, double-glazed fenestration

Customization Capabilities

Frame color, grill pattern, and glass type can be tailored per project. Sash configurations and overall dimensions are adjustable to fit specific window openings without compromising structural integrity.

Packaging & Shipping

Each window is individually wrapped with foam corners and shrink film, then packed in plywood crates for container shipping. FOB or CIF terms available for Australian and European ports.

Why Choose Us

Factory-direct pricing with minimum order quantities as low as 50 units
Industrial-grade 6063-T5 aluminum ensures frame stability and corrosion resistance
Double-glazed units meet Australian energy efficiency standards (WERS rated)

Frequently Asked Questions

What is the thermal performance of the double glazing?

The 5+12A+5 mm double-glazed unit achieves a U-value of approximately 2.8 W/m²K, suitable for moderate Australian climates. Low-E coating or argon fill can reduce U-value to 2.0 W/m²K.

Can the wood-color finish withstand UV exposure?

Yes. The powder coating is UV-stable and tested for 1000 hours in QUV accelerated weathering, maintaining color retention per AS 3715 standards.

What grill patterns are available for the double-glazed windows?

Georgian (square), prairie (horizontal/vertical bars), and diamond patterns are standard, with custom grid spacing available upon request.

What is the typical lead time for a container order?

Production takes 20–25 working days after design approval and deposit. Sample orders can be shipped within 15 working days.

How are the windows packaged for sea freight to Australia?

Each window is individually protected with foam and shrink wrap, then packed in heavy-duty plywood crates. A 40-foot container holds approximately 200–250 windows depending on size.

Get A Quote

Manufacturing Capability

Built For Stable Production & Global Supply

Integrated manufacturing workflow covering production, quality control, export packaging, and container loading.

Factory

Modern manufacturing facilities designed for stable production capacity and international export supply.

Production

Standardized production workflow ensures consistent quality and efficient order management.

CNC Processing

Precision CNC equipment improves dimensional accuracy and manufacturing consistency.

Spray Line

Professional surface finishing systems support stable coating quality and color consistency.

Quality Control

Dedicated QC inspections are carried out during production and before shipment.

Packaging

Reinforced export packaging protects products during international transportation.

Container Loading

Optimized loading plans improve shipping efficiency and reduce transportation risks.

Factory FAQ

Frequently Asked By Global Buyers

Common questions about MOQ, production, customization, export packaging, shipping, and OEM cooperation.

Our MOQ depends on product type, finishes, and customization requirements. Mixed container orders are supported.

Standard lead time is usually 15–35 days after confirming drawings, finishes, and deposit payment.

Yes. OEM, logo branding, custom packaging, and exclusive product configurations are available.

We provide Chinese, German, and Italian hardware options based on market and project requirements.

Selected systems are available with FD30 and FD60 fire-rated configurations for commercial projects.

We export to Europe, North America, the Middle East, Southeast Asia, Australia, and other global markets.

Products use reinforced export packaging with foam protection, corner guards, and waterproof wrapping.

Yes. Custom sizes, finishes, colors, glass options, and architectural adaptations are supported.
