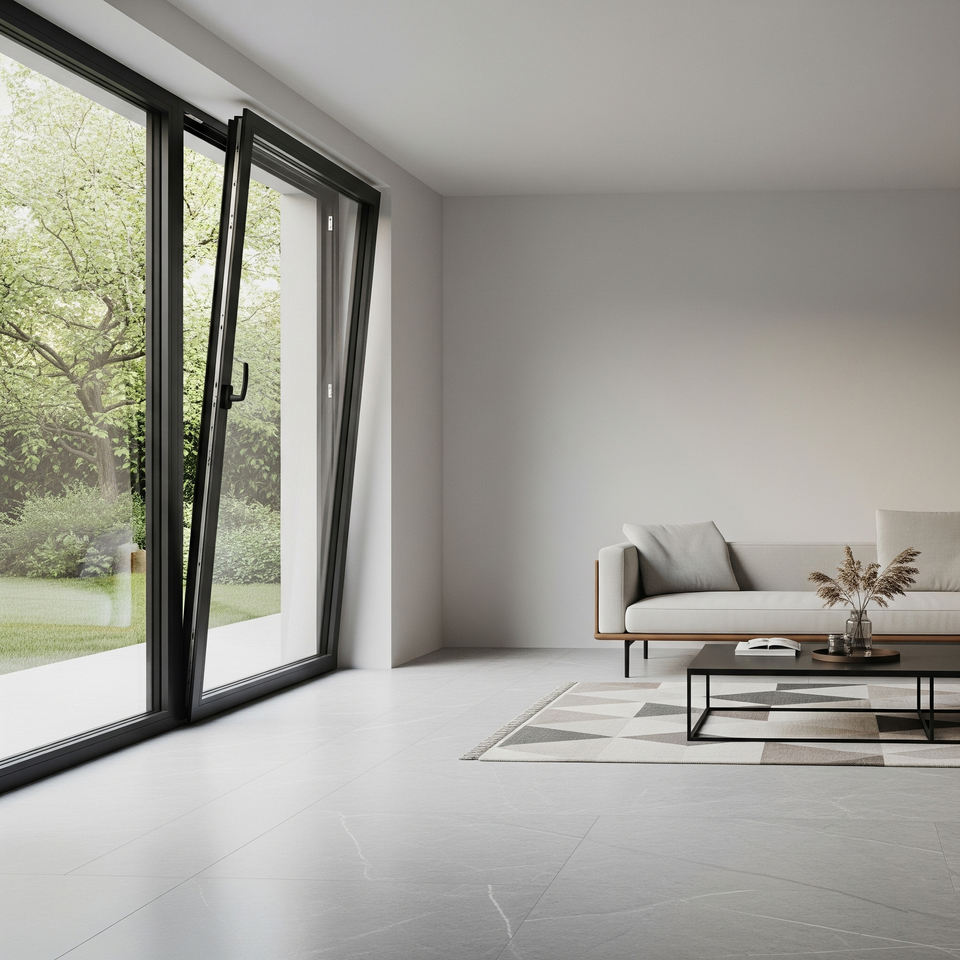

Product Overview
Engineered from 6063-T5 aluminum alloy with multi-chamber thermal break profiles, this tilt-turn window system meets AAMA 2604-05 certification for performance. AAMA-certified weatherstripping and EPDM gaskets provide waterproof and wind pressure resistance up to 3000 Pa, ensuring structural integrity in severe weather conditions.
Key Specifications
| Material | 6063-T5 aluminum alloy with thermal break |
| Door Thickness | 70 mm frame profile |
| Fire Rating | Not applicable (window system) |

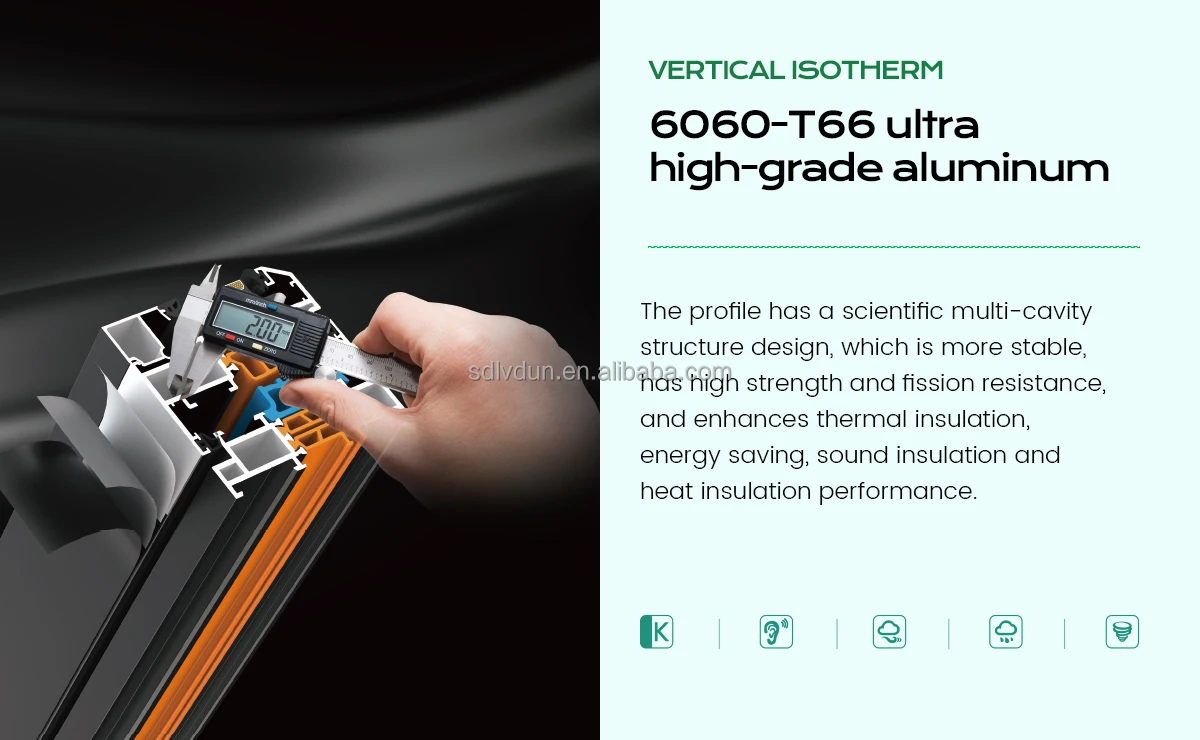

| Core | Multi-chamber hollow profile with polyamide thermal strip |
| Finish | Anodized or powder-coated (RAL colors available) |
| Max Size | 2400 mm x 1800 mm |
| Warranty | 10 years against material defects |
Available Options
- Standard sizes: 1200×1500 mm, 1500×1800 mm, 1800×2100 mm; custom dimensions available
- Finish colors: 30+ RAL colors, including matte black, white, silver, bronze
- Hardware options: multi-point locking system with tilt-turn mechanism (Hoppe or similar grade)

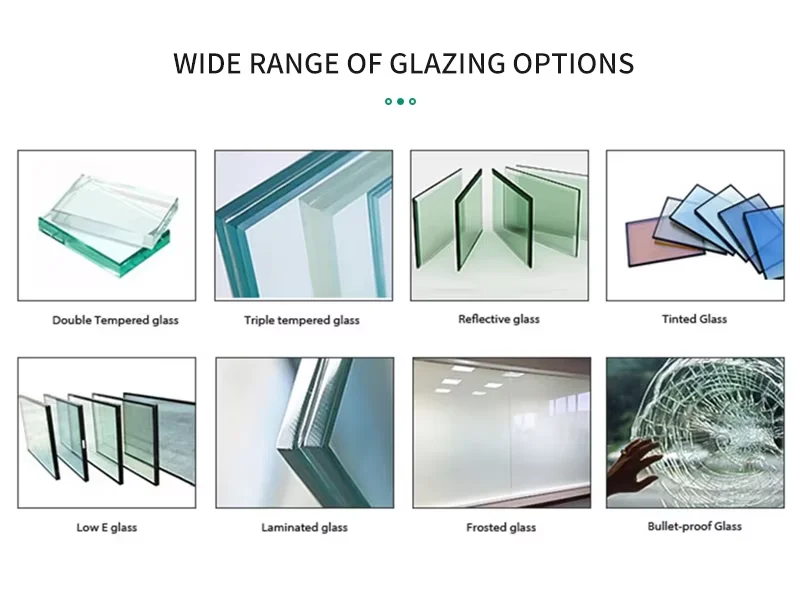

- Glass options: double-glazed (5mm+12A+5mm) or triple-glazed (5mm+12A+5mm+12A+5mm) with Low-E coating
Applications
- Residential high-rise apartments requiring airtight and watertight fenestration
- Coastal residential projects where saltwater resistance and wind-driven rain protection are critical
- Commercial office buildings with strict energy efficiency requirements (EN 14351-1 compliant)
- Renovation projects for historic buildings needing modern performance without altering facade appearance
Customization Capabilities
Customizable frame profiles (color, thermal break width), glass thickness (up to 44 mm), and screen mesh options (aluminum-wood or stainless steel). Integrated blinds or mosquito screens available upon request.
Packaging & Shipping
Each window unit wrapped in protective PE film, corner-protected with foam, and packed in plywood crates for export. Shipments via LCL or FCL containers with full fumigation certification.
Why Choose Us
- 20 Years of OEM/ODM experience supplying tilt-turn systems to European and North American distributors
- Third-party tested for water penetration (tested to 600 Pa) and wind load resistance (tested to 3000 Pa)
- Competitive MOQ of 50 units per design, with sample orders available for pre-production approval
Frequently Asked Questions
What is the maximum wind pressure this window can withstand?
Tested to 3000 Pa wind load resistance per ASTM E330, suitable for hurricane-prone regions up to Category 2 wind zones. Frame deflection remains under L/175 at maximum load.
Can the window be customized with different glass types?
Yes, options include double-glazed Low-E for thermal insulation, laminated glass for sound reduction (STC 35+), or tempered glass for impact resistance. Maximum glass thickness is 44 mm.
Is this window suitable for bathrooms or kitchens with high humidity?
Designed for waterproofing with EPDM sealing and drainage channels. The tilt-turn function allows ventilation without compromising weather resistance, making it suitable for humid environments.
What is the minimum order quantity for custom sizes?
MOQ for custom sizes is 50 units per design. Standard sizes have no MOQ, and sample orders (1-2 units) are available at full price with lead time of 15-20 working days.
How is the window packaged for export shipping?
Each unit is wrapped in PE film, corner-protected with foam, and packed in plywood crates. Crates are strapped and marked with handling instructions. FCL containers can hold up to 80 units per 40HQ container.
Get A Quote
Contact us for customized quotation, volume pricing, and project specifications. Response within 24 hours.
Why Choose JUSEN
A Professional Door Manufacturer China Buyers Rely On
01
Energy Efficiency
02
Custom Manufacturing
03
Quality Control
04
Factory Capability
Technical Data
Technical Specifications
| Design Style | modern |
|---|---|
| Application | bathroom |
| Opening Method | swing |
| Model Number | LD-X76 |
| Place of Origin | Shandong, China |
| Warranty | More Than 5 Years |
