Aluminum Casement Wi | Aluminum Window China
Manufacturer in China
apartment door. minimalist design. Custom sizes available. OEM/ODM from JuSen factory, China. More Than 5 Years warranty.
- Factory Direct Manufacturer
- OEM & ODM Available
- Custom Size Production
- Global Export Experience
Product Overview

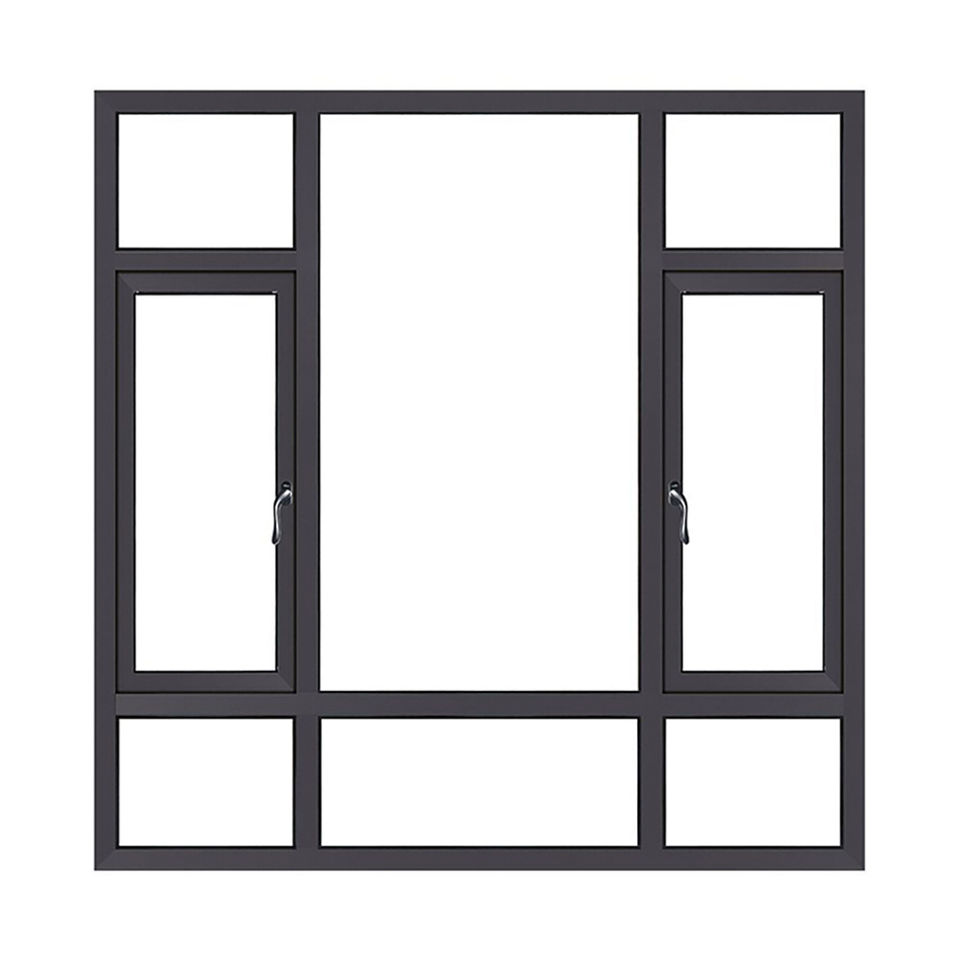

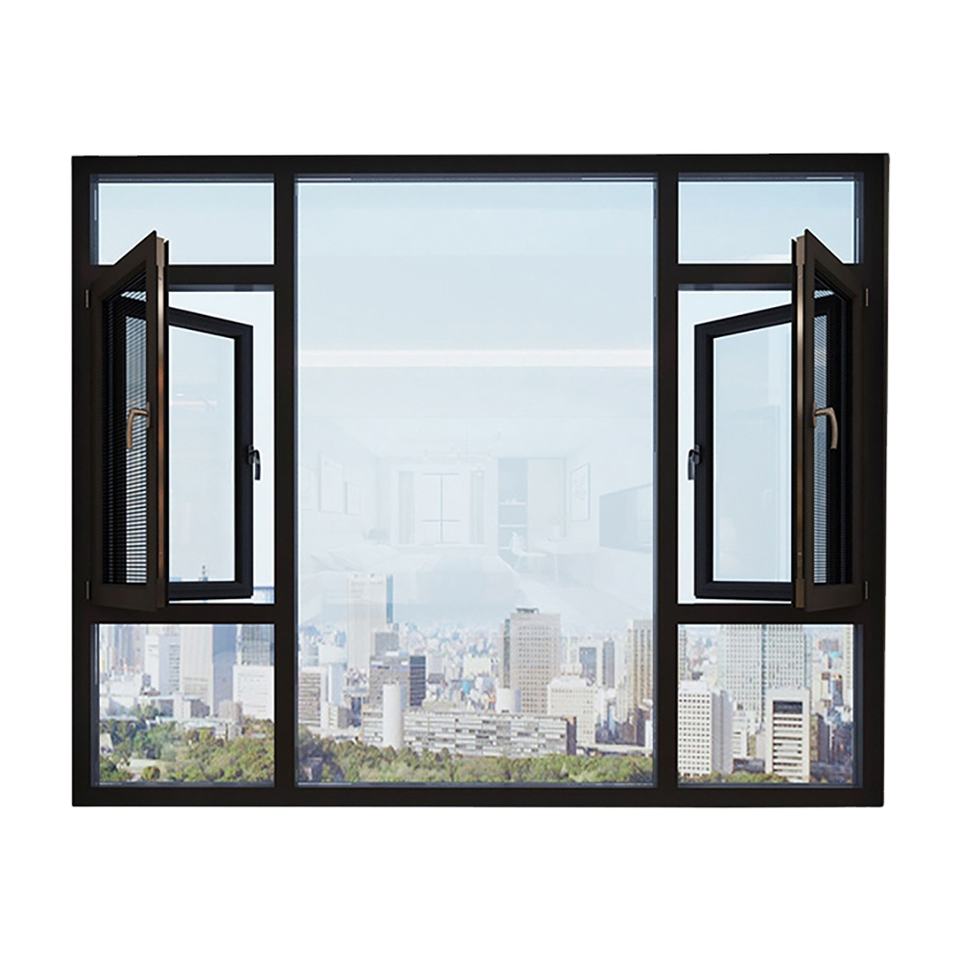

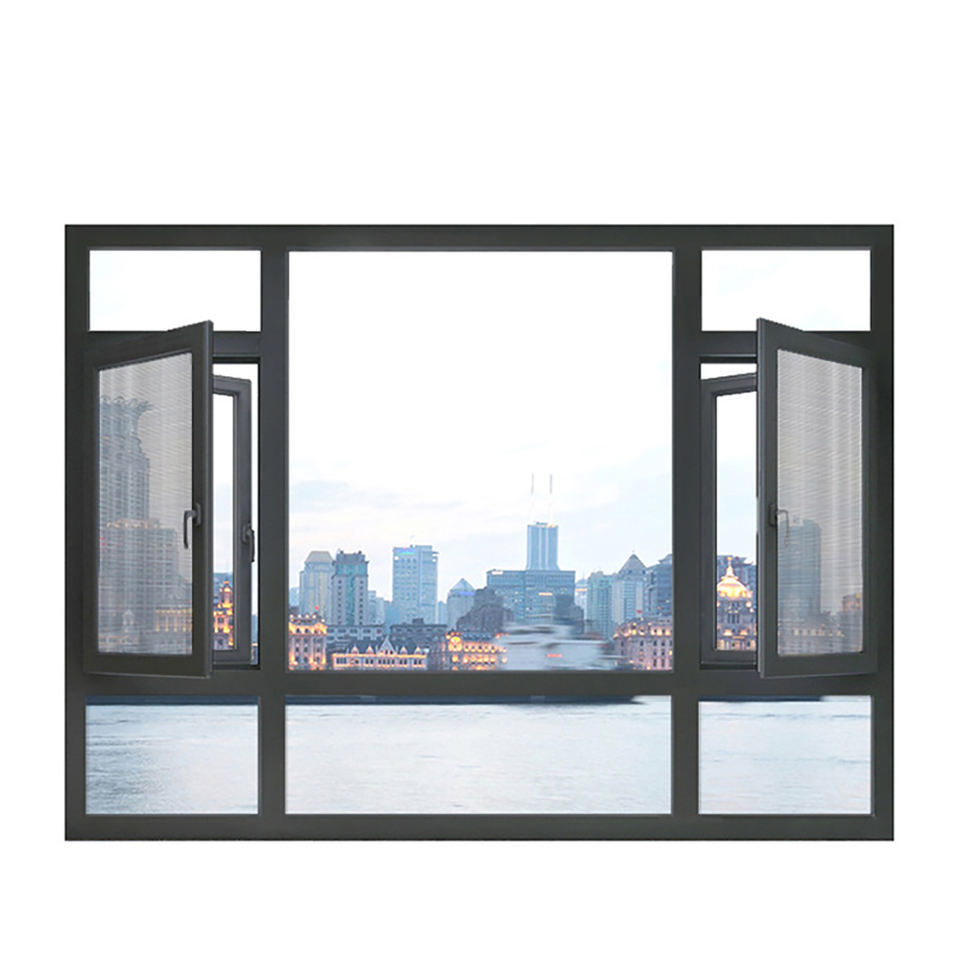

Foshan Factory Price Tempered Glass Standard Aluminum Casement Windows With Security Mesh utilize 6063-T5 aluminum alloy frames with a minimum wall thickness of 1.5mm, paired with 5mm fully tempered glass and integrated 304-grade stainless steel security mesh. These windows meet EN 14351-1 performance standards for air permeability, water tightness, and wind load resistance, designed for durable, industrial-grade applications.
Key Specifications
| Material | 6063-T5 aluminum alloy, 1.5mm frame thickness |
| Glass | 5mm tempered glass (fully tempered per ASTM C1048) |
| Security Mesh | 304 stainless steel, 0.8mm wire diameter, 11×11 mesh opening |
| Opening Type | Side-hung casement with multi-point locking |
| Finish | Powder coated (standard RAL colors) or anodized |
| Max Size | 1800mm x 2400mm (single sash) |
| Warranty | 5 years on frame and mesh, 1 year on hardware |
Available Options
- Size options: custom widths from 600mm to 1800mm, heights from 900mm to 2400mm
- Finish/color options: standard RAL 9016, 9005, 7016, plus custom RAL powder coating
- Hardware options: multi-point locking system (Hoppe or similar-grade), concealed hinges, or standard hinges
- Glass options: single 5mm tempered, double glazing (5mm+12A+5mm), or laminated glass
- Security mesh options: 304 stainless steel or galvanized steel, with black or silver coating
Applications
- Residential apartment windows requiring integrated insect and security protection
- Industrial warehouse ventilation openings with forced entry prevention
- School and institutional buildings needing child-safe, impact-resistant fenestration
- Commercial storefronts in high-crime areas where mesh deters break-ins
Customization Capabilities
Frame profile depths can be increased from standard 50mm to 70mm for enhanced thermal performance, and mesh density can be adjusted from 11×11 to 16×16 openings per inch. Color matching to existing building facades is available with minimum order quantities of 50 units.
Packaging & Shipping
Each window is individually wrapped in bubble film, corner-protected with EPE foam, and packed in export-grade plywood crates with steel strapping. Standard FOB shipment from Foshan port with 20-30 working days lead time for 200-unit containers.
Why Choose Us
- Direct factory pricing from Foshan with no middleman markup, verified by on-site inspections
- EN 14351-1 certified production line with ISO 9001 quality management system
- Custom mesh and glass combinations available with 48-hour sample turnaround for bulk orders
Frequently Asked Questions
What is the tensile strength of the 304 stainless steel security mesh used in these casement windows?
The 304-grade stainless steel mesh has a minimum tensile strength of 520 MPa with 0.8mm wire diameter, tested per ASTM A240. It resists cutting with standard hand tools and provides 200 psi puncture resistance.
Can the powder coating color be matched to existing window frames from other manufacturers?
Yes, we offer custom RAL color matching with a delta E ≤ 1.0 tolerance. Provide a physical color sample or RAL code, and we will produce a 30x30cm coated panel for approval before production. Minimum order for custom colors is 50 units.
Are these casement windows suitable for coastal environments with high salt spray exposure?
The standard 6063-T5 aluminum with powder coating offers 500-hour salt spray resistance per ASTM B117. For extreme coastal zones, we recommend upgrading to anodized finish (AA15) which provides 1000+ hours salt spray resistance. Mesh should be specified as 316 stainless steel for corrosive environments.
What is the minimum order quantity for a mixed container of different sizes and colors?
Mixed containers are accepted with a minimum of 150 units total. Each size and color variant must have at least 10 units. We can combine up to 4 different sizes and 3 colors in one 20-foot container. Full container orders (200+ units) receive a 5% volume discount.
How is the security mesh attached to the frame to prevent tampering or removal?
The mesh is mechanically crimped into an extruded aluminum spline channel on the interior side of the frame, secured with stainless steel screws at 150mm intervals. The spline is covered with a snap-fit PVC trim that requires a specialized removal tool, preventing easy detachment from the exterior.
Get A Quote
Contact us for customized quotation, volume pricing, and project specifications. Response within 24 hours.
Why Choose JUSEN
A Professional Door Manufacturer China Buyers Rely On
01
Energy Efficiency
02
Custom Manufacturing
03
Quality Control
04
Factory Capability
Technical Data
Technical Specifications
| Design Style | minimalist |
|---|---|
| Application | Apartment |
| Opening Method | swing |
| Place of Origin | Guangdong, China |
| Warranty | More Than 5 Years |
