Product Overview

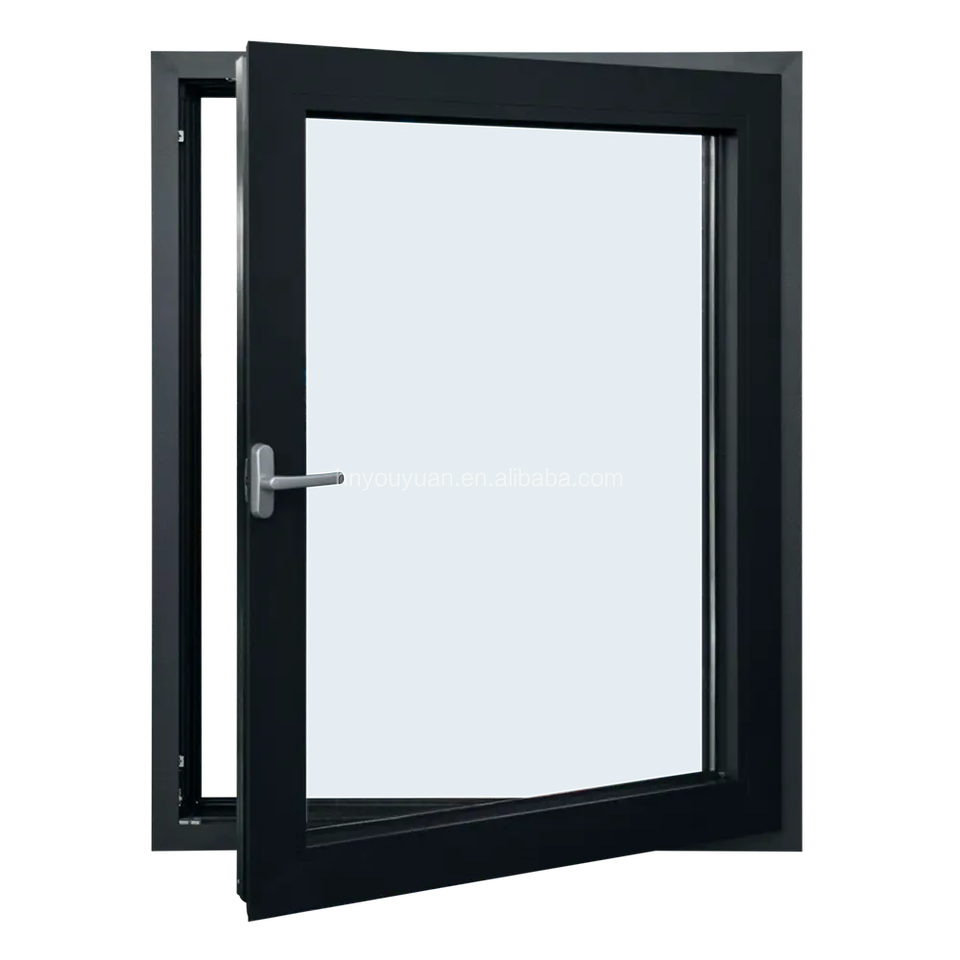

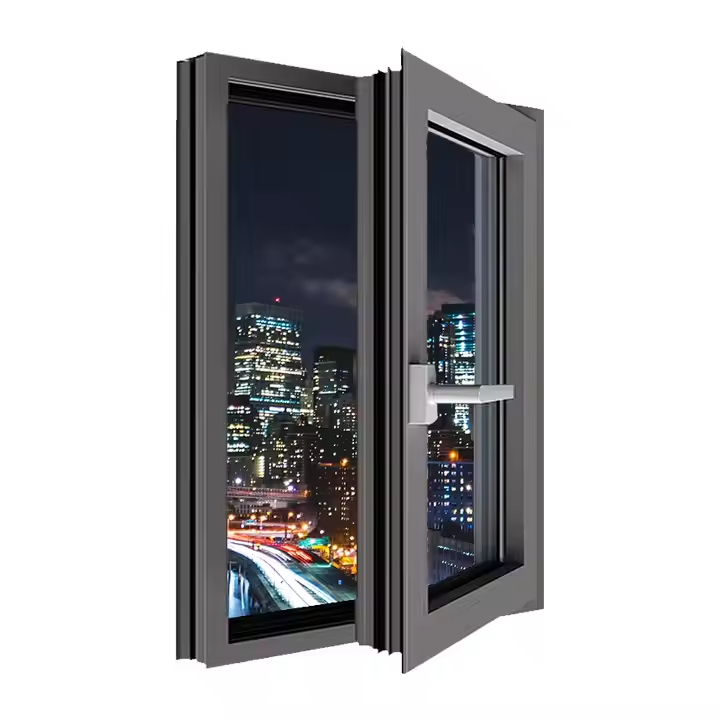

Engineered with 6063-T5 aluminum alloy frames and thermal break technology, these double glazed casement windows deliver enhanced thermal insulation for energy-efficient building envelopes. Argon gas-filled double glazing with low-E coating minimizes heat transfer, while integrated louver curtains provide adjustable light control within a sealed unit.

Key Specifications

Available Options

• Standard sizes: 600×1200 mm, 900×1500 mm, 1200×1800 mm; custom dimensions available
• Frame finish: powder coating (RAL colors), anodized silver, or wood grain foil
• Hardware: multi-point locking system, concealed hinges, or folding handles
• Glass options: tinted, reflective, or laminated inner pane for sound reduction

Applications

• Residential high-rise apartments requiring thermal insulation and built-in shading
• Office buildings with floor-to-ceiling window walls needing glare reduction
• Hotel guest rooms where integrated curtains reduce cleaning and maintenance
• Passive house projects meeting stringent energy performance standards

Customization Capabilities

Frame dimensions, louver slat width (25 mm or 50 mm), and glass coating can be tailored to project specifications. Custom RAL colors and integrated insect screens are available upon request.

Packaging & Shipping

Each window unit is individually wrapped with EPE foam and corner protectors, then packed in sturdy wooden crates for export. Standard shipping via 20ft or 40ft container, with FOB or CIF terms available.

Why Choose Us

• 10+ years of OEM/ODM experience supplying aluminum windows to global distributors
• ISO 9001:2015 certified factory with annual capacity exceeding 50,000 units
• Strict quality control: air permeability and water tightness tested to EN 12207 and EN 12208

Frequently Asked Questions

What is the thermal insulation performance of these windows?

With a 5+12A+5 mm double glazing unit filled with argon gas and low-E coating, the U-value is typically ≤ 1.6 W/m²K. Using a 70 mm thermal break frame can improve this to ≤ 1.4 W/m²K, suitable for passive house applications.

Can the integrated louver curtain be replaced or repaired?

The louver mechanism is enclosed within the sealed glazing cavity and is not user-serviceable. However, the entire sealed unit can be replaced by a certified installer if the curtain or glass is damaged, without replacing the entire frame.

Are these windows suitable for coastal or high-humidity environments?

Yes. The 6063-T5 aluminum alloy is corrosion-resistant, and the powder coating finish provides additional protection against salt spray. For extreme coastal zones, we recommend anodized finish or marine-grade hardware.

What is the minimum order quantity for custom sizes?

For standard sizes, MOQ is 50 units. Custom dimensions require a minimum of 100 units per size and a lead time of 25–30 days after sample approval.

How are the windows packaged for long-distance shipping?

Each window is protected with EPE foam padding, corner cardboard, and shrink wrap. They are then loaded into plywood crates with wooden pallets, ensuring no movement during transit. Crates are stackable for container efficiency.

Get A Quote

Contact us for customized quotation, volume pricing, and project specifications. Response within 24 hours.
