Aluminum Roller Shutter Door with Security Slats – Commercia

Product Overview

Engineered from 6063-T5 aluminum alloy slats, these rolling shutters incorporate interlocking profiles to achieve forced-entry resistance for commercial perimeter security. Each shutter assembly is precision-rolled to meet dimensional tolerances of ±2mm, with a galvanized steel guide rail system and a powder-coated finish rated for 1,000-hour salt spray resistance.

Key Specifications

Available Options

• Slat gauge: 1.2mm, 1.5mm, or 2.0mm aluminum thickness

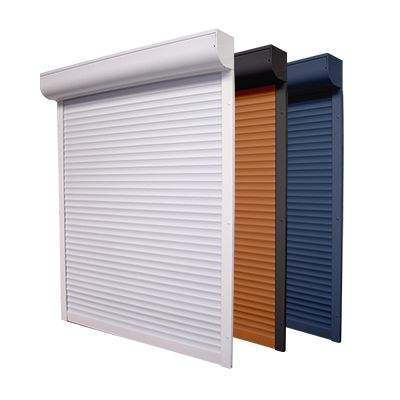

• Finish: over 200 RAL colors, anodized silver, or custom wood-grain
• Operation: manual chain-hoist, electric motor with remote, or integrated smart building interface
• Infrared safety beams, photoelectric sensors, and emergency manual release

Applications

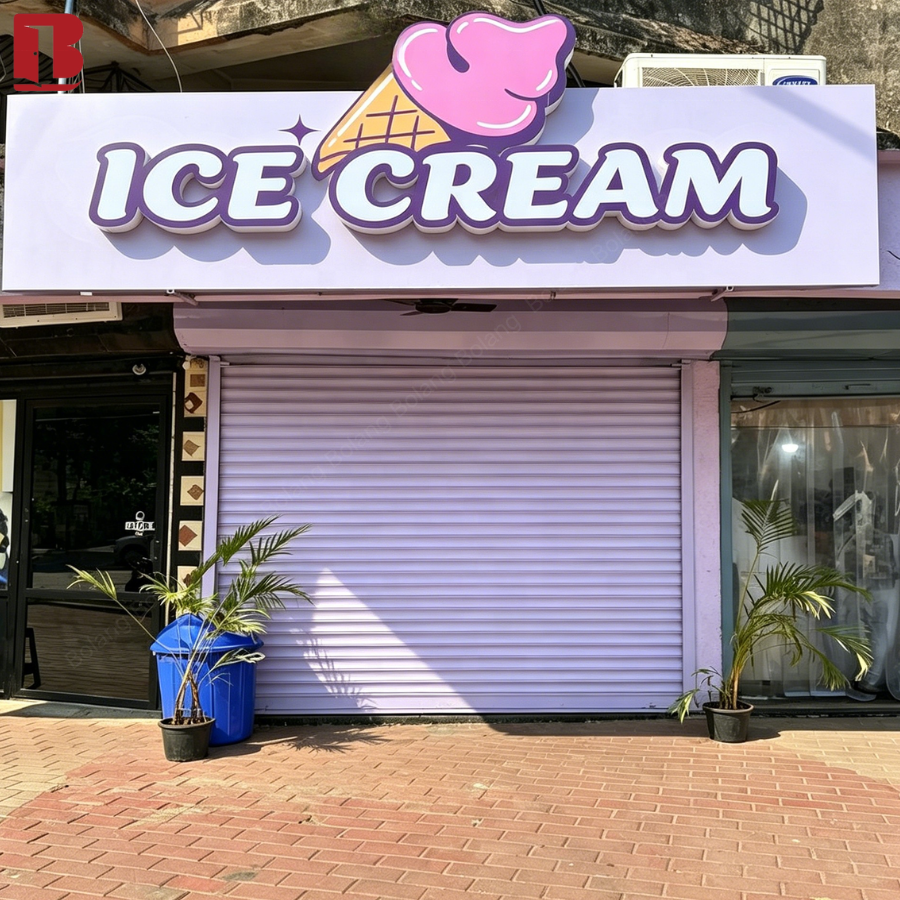

• Retail storefronts and shopping center kiosks requiring after-hours security
• Warehouse loading docks and industrial yard entry points
• Parking garage entrances and vehicle access control points
• Commercial storage facilities and self-storage unit closures

Customization Capabilities

Slat profile depth, guide rail dimensions, and motor mounting brackets can be tailored to specific opening sizes and wall structures. Custom wind-load ratings up to 1,200 Pa are achievable with reinforced slats and heavier gauge materials.

Packaging & Shipping

Each shutter is rolled onto a steel core, wrapped in polyethylene film, and secured in a wooden crate with foam end caps. Standard lead time is 25-35 working days for custom dimensions, with FOB or CIF shipping terms available.

Why Choose Us

• Factory-direct pricing with ISO 9001:2015 certified production line
• Custom slat profiles and finish matching to existing architectural standards
• UL 325 compliant safety systems and optional impact testing reports

Frequently Asked Questions

What is the difference between 1.2mm and 2.0mm slat thickness for security?

1.2mm slats are suitable for basic visual deterrence and light commercial use, while 2.0mm slats provide increased resistance against forced entry with a higher breaking load. The 2.0mm option also reduces slat deflection under wind load, making it preferable for wide openings over 4,000mm.

Can the shutter be integrated with an existing building automation system?

How does the powder coating finish perform in coastal or high-humidity environments?

The standard polyester powder coating passes a 1,000-hour salt spray test per ASTM B117. For extreme coastal or chemical exposure, a PVDF (Kynar 500) finish option is recommended, which provides additional UV and corrosion resistance.

What is the maximum wind load the shutter can handle without damage?

Standard slat assemblies are designed for wind loads up to 700 Pa. With reinforced slats (2.0mm thickness) and wind-lock guide rails, the system can withstand up to 1,200 Pa, suitable for regions with typhoon or hurricane exposure.

What are the lead time and shipping packaging details for a custom order?

Custom-sized shutters require 25-35 working days from order confirmation. Each unit is individually crated with foam padding and steel banding for ocean freight. FOB Shenzhen or CIF destination port terms are available; please provide project dimensions and quantity for a precise shipping quote.
