Aluminum Roller Shutter Windproof Thermal Insulation –

Product Overview

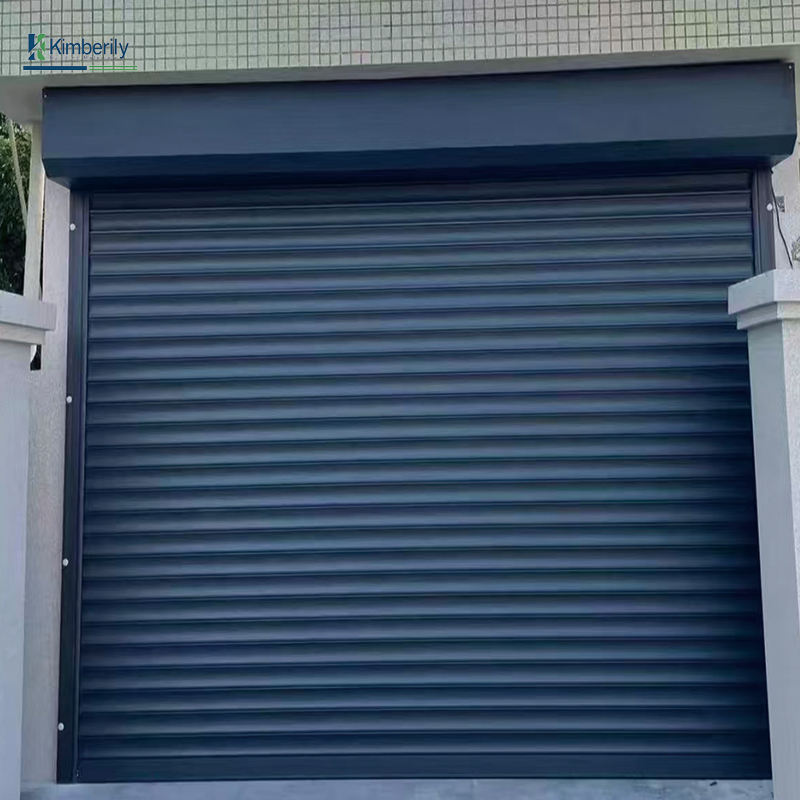

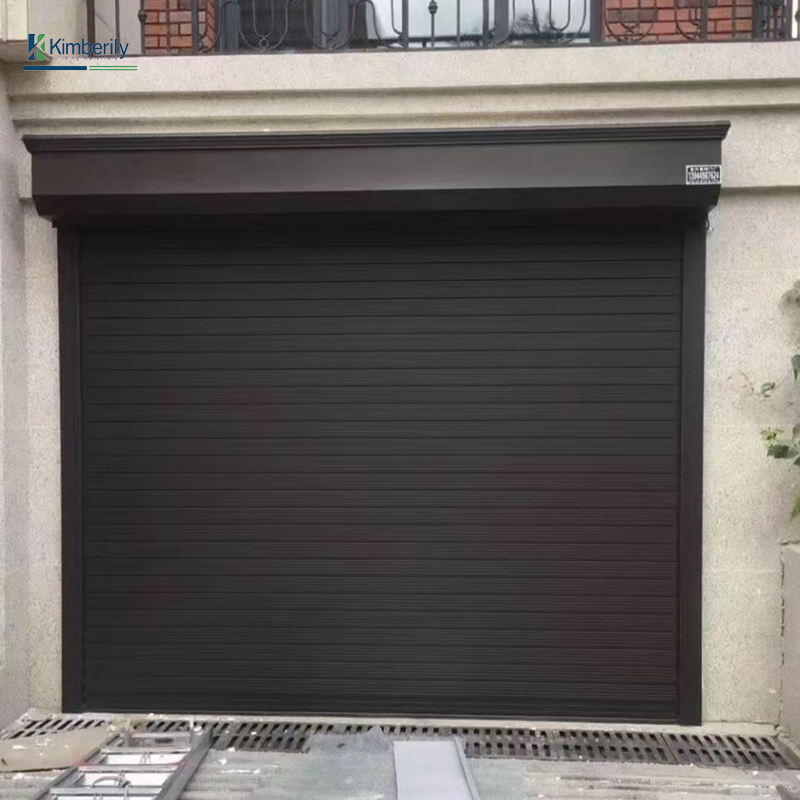

Engineered for demanding industrial environments, this electric aluminum alloy roller shutter integrates a thermal-insulated core with a windproof slat design to withstand high-velocity gusts and maintain interior climate stability. Constructed from 6063-T5 aluminum alloy with a double-layer slat profile, it provides a secure barrier for entry and garage applications across Southeast Asia and Malaysia.

Key Specifications

Available Options

• Width: 2,500 mm, 3,500 mm, 4,500 mm, or 6,000 mm
• Height: 3,000 mm, 4,000 mm, or 5,000 mm
• Finish: RAL 9006, RAL 9010, or custom RAL color
• Motor: AC 220V/50Hz tubular motor (200 Nm torque) or DC 24V battery backup
• Control: Wall switch, remote control, or smartphone app (Wi-Fi/Bluetooth)
• Slat profile: Flat or micro-ribbed for enhanced rigidity

Applications

• Industrial warehouse entry doors in high-wind coastal regions of Malaysia

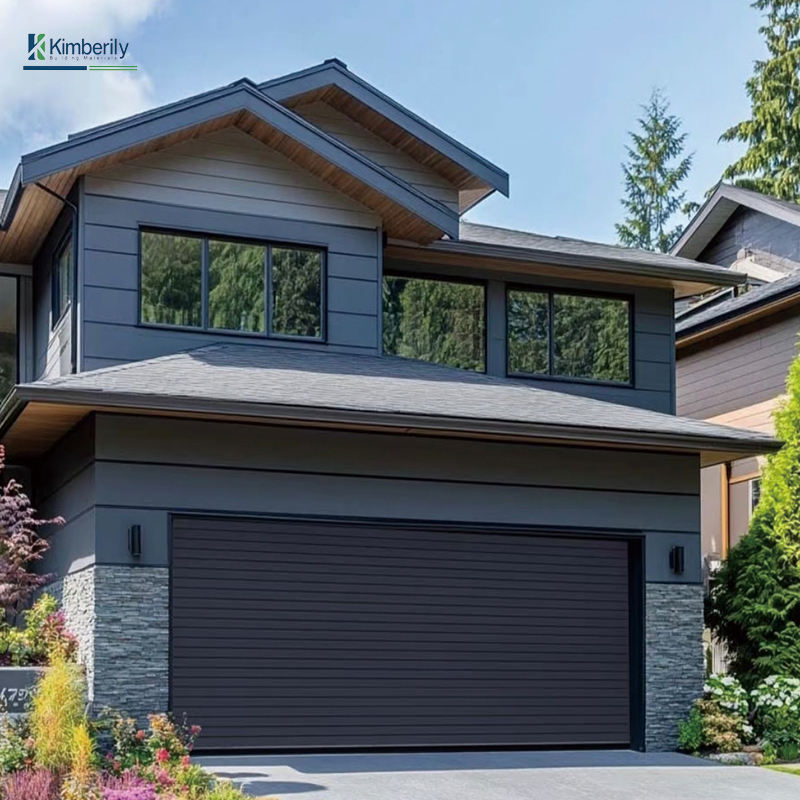

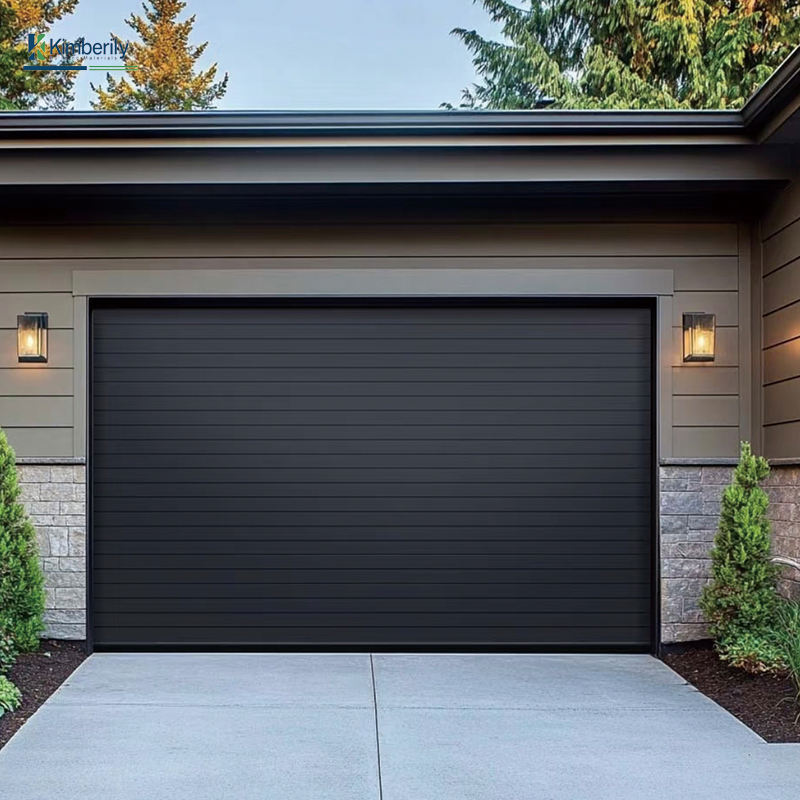

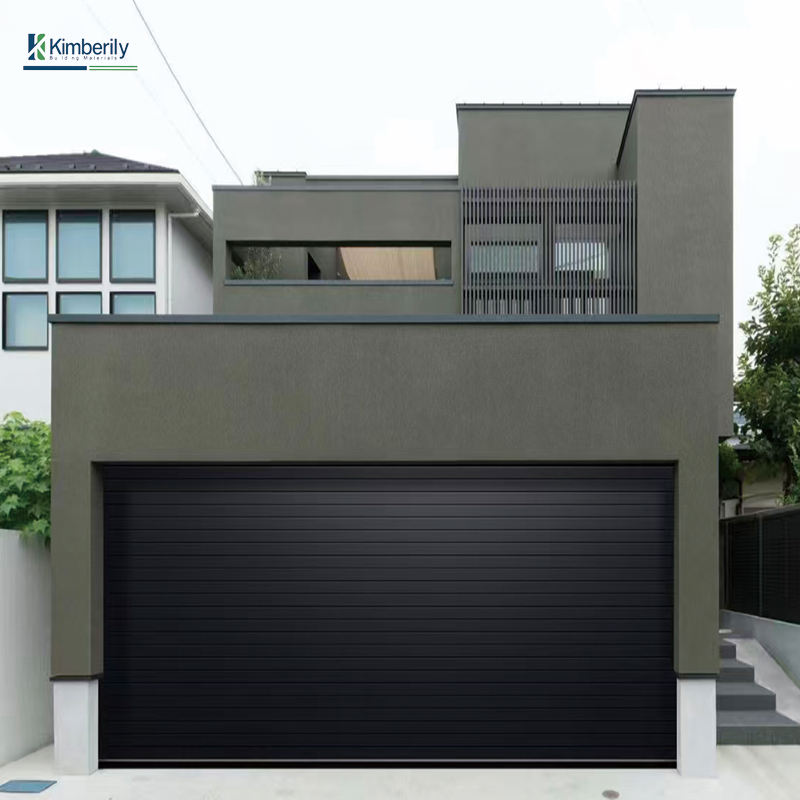

• Garage openings for logistics centers requiring thermal insulation
• Secure perimeter barriers for manufacturing plants in Southeast Asia
• Loading dock doors with windproof sealing for cold storage facilities

Customization Capabilities

Slat width, motor type, control system, and color can be tailored to specific project requirements. For industrial-grade applications, wind load class, insulation thickness, and guide rail profile can be adjusted to meet local building codes.

Packaging & Shipping

Each shutter is disassembled into slats, guide rails, motor unit, and control box, individually wrapped in PE foam and packed in export-grade plywood crates. Standard lead time is 25–30 working days for FOB Shenzhen, with full container load (FCL) shipping for large orders.

Why Choose Us

• Factory-direct manufacturing with ISO 9001:2015 quality management system
• Experienced in supplying roller shutters for tropical climates with high humidity and UV exposure
• Custom engineering support for wind load and thermal performance calculations

Frequently Asked Questions

What is the thermal insulation value (U-value) of this roller shutter?

The polyurethane foam core provides a U-value of approximately 2.8 W/m²·K for the closed shutter assembly, reducing heat transfer by up to 40% compared to non-insulated aluminum shutters. The exact value depends on slat profile and overall dimensions.

Can the color be customized to match existing building facades?

Yes, any RAL color is available for the powder-coated finish. Minimum order quantity for custom colors is 50 square meters. Standard RAL 9006 and RAL 9010 are available without MOQ.

Is this shutter suitable for use in high-humidity coastal areas like Penang or Johor?

Yes, the 6063-T5 aluminum alloy is corrosion-resistant, and the powder coating adds a protective layer against salt spray. The guide rails are fitted with nylon weather seals to prevent moisture ingress. For extreme coastal environments, anodized finish is recommended as an upgrade.

What is the maximum wind speed this shutter can withstand when fully open?

When fully retracted, the shutter slats are stacked inside the hood and do not face wind load. In the closed position, the wind load rating is Class 5 per EN 12424, equivalent to 120 km/h sustained winds. For higher wind zones, a reinforced guide rail system can be specified.

What is the standard lead time for a 4,500 mm (W) x 4,000 mm (H) shutter?

Standard production takes 25–30 working days from confirmed order and deposit. For urgent projects, expedited delivery can be arranged within 15 working days at a 15% surcharge. Shipping time to Malaysia via sea freight is approximately 7–10 days.

Get A Quote

Contact us for customized quotation, volume pricing, and project specifications. Response within 24 hours.
