Aluminum Glass Garage Door See Through Overhead Sectional Garage DoorFrameless Garage Doors 16 X 8. aluminum, modern, finished, Garage
| Door Material | aluminum |
|---|---|
| Design Style | modern |
| Surface Finish | finished |
| Application | Garage |
| Opening Method | Remote Control Overhead Lifting |
| Place of Origin | Guangdong, China |
| Warranty | 3 Years |
Product Overview

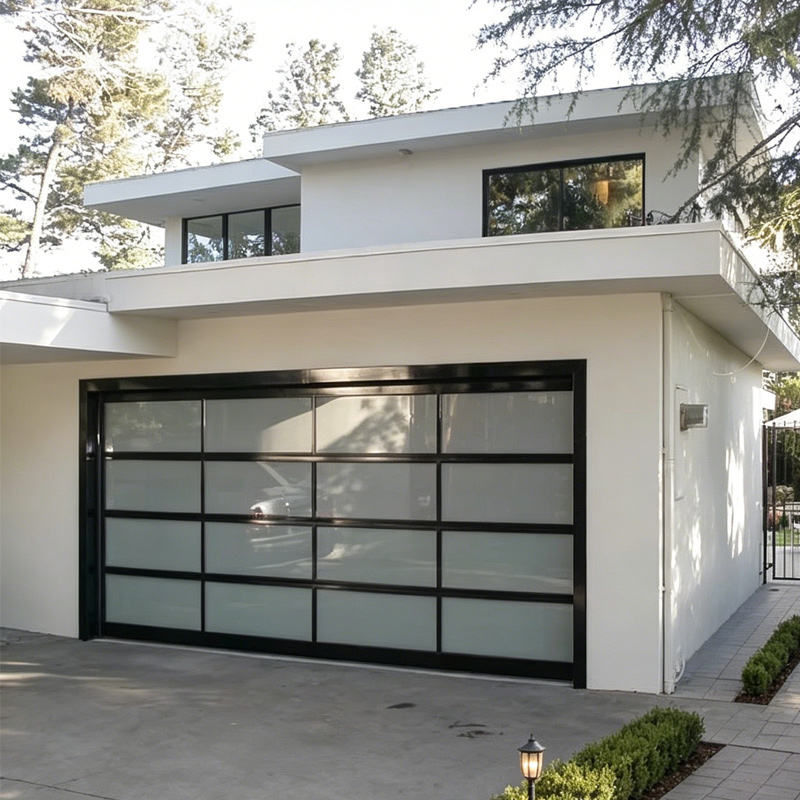

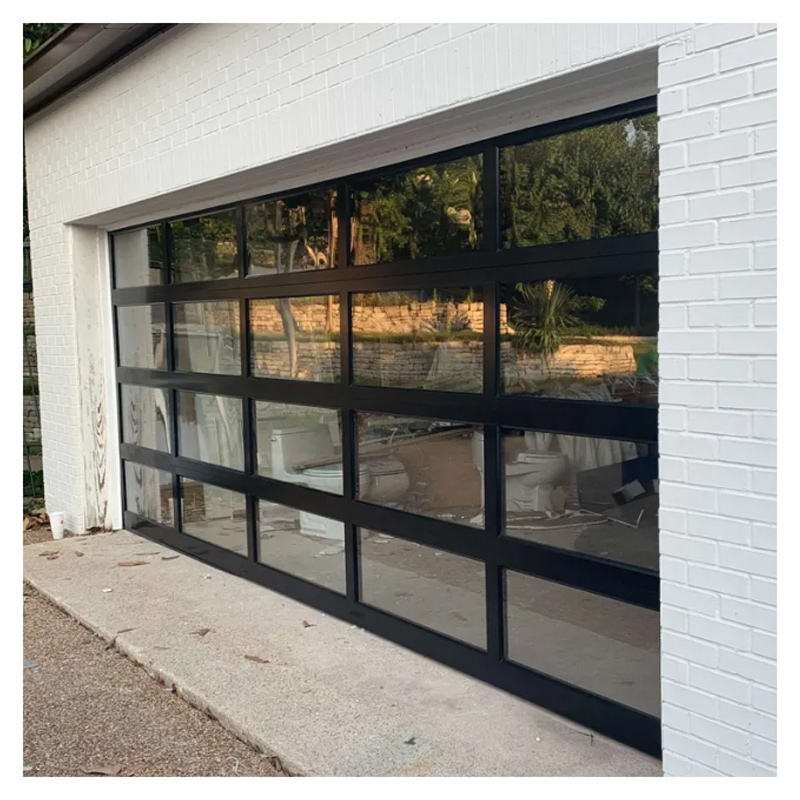

JuSen Doors’ see-through overhead sectional garage door combines a frameless aluminum frame with tempered glass panels, offering uninterrupted visibility and a modern aesthetic for commercial or residential applications. Constructed from 6063-T5 aluminum alloy sections with a durable powder-coated finish, this 16’ x 8’ door is designed for high-traffic entryways requiring natural light and visual transparency.
Key Specifications
| Material | 6063-T5 aluminum alloy frame, tempered glass panels (4mm-6mm thickness) |
| Door Thickness | 1.75 inches (44 mm) overall section thickness |
| Fire Rating | Not applicable – non-fire-rated design for standard openings |
| Core | Aluminum frame with clear or frosted tempered glass infill; no solid core |
| Finish | Powder-coated RAL colors (standard: white, black, silver, bronze) |
| Max Size | 16 ft width x 8 ft height (custom sizes available up to 20 ft x 10 ft) |
| Warranty | 5 years against manufacturing defects |
Available Options
- Custom widths from 8 ft to 20 ft; heights from 7 ft to 10 ft
- Finish colors: RAL 9010, 9005, 7016, 8017, plus custom RAL matches

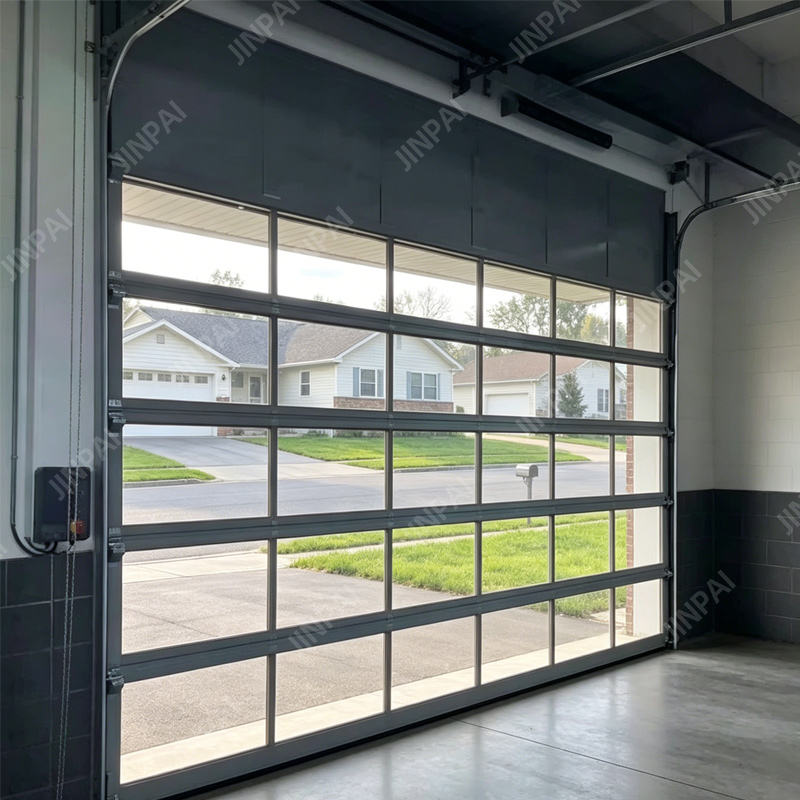

- Hardware: torsion spring system, low-headroom track, or high-lift track

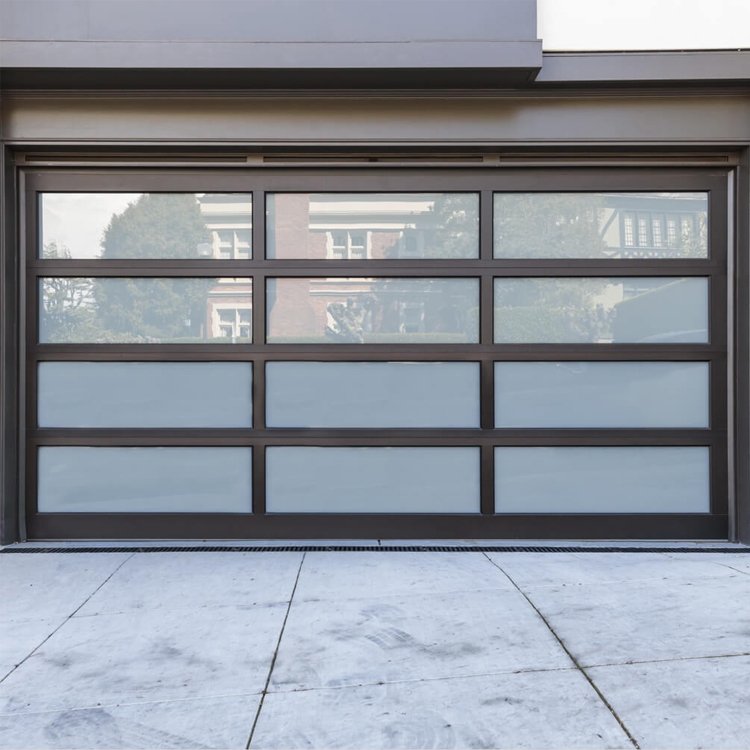

- Glass options: clear tempered, frosted, tinted (gray/bronze), or laminated safety glass
Applications
- Showroom entrances requiring natural daylight and product visibility
- Restaurant patios or outdoor dining areas with retractable overhead doors
- Car dealership service bays for vehicle display and access
- Retail storefronts merging indoor and outdoor spaces
Customization Capabilities
Section dimensions, glass type, finish color, and track configuration can be tailored to fit non-standard openings or specific wind-load requirements (up to 20 psf).
Packaging & Shipping
Each door is disassembled into labeled sections, wrapped in protective film, and packed in reinforced cardboard boxes on pallets. Shipping via FOB Ningbo or CIF terms with full container loads (FCL) for bulk orders.
Why Choose Us
- Direct factory pricing with no middlemen for volume orders of 50+ units
- Proprietary anodizing line ensures consistent finish thickness of 60 microns
- All tempered glass meets EN 12150 and ANSI Z97.1 safety standards
Frequently Asked Questions
What aluminum alloy grade is used for the frame sections?
The frame is extruded from 6063-T5 aluminum alloy, which provides good corrosion resistance and strength-to-weight ratio for sectional doors. All extrusions are heat-treated to T5 temper for dimensional stability.
Can the glass panels be replaced with solid panels for privacy?
Yes, solid aluminum panels or insulated sandwich panels can be substituted for glass in specific sections. This requires custom fabrication and may affect overall door weight and spring tension calibration.
Is this door suitable for coastal or high-humidity environments?
The 6063-T5 aluminum frame with powder coating resists salt spray corrosion per ASTM B117 testing. However, hardware components (springs, cables, rollers) should be specified as stainless steel for coastal areas to prevent rust.
What is the minimum headroom requirement for installation?
Standard track configuration requires a minimum of 12 inches of headroom above the opening. Low-headroom track kits are available for applications with only 6-8 inches of clearance.
How are the glass panels secured in the frame sections?

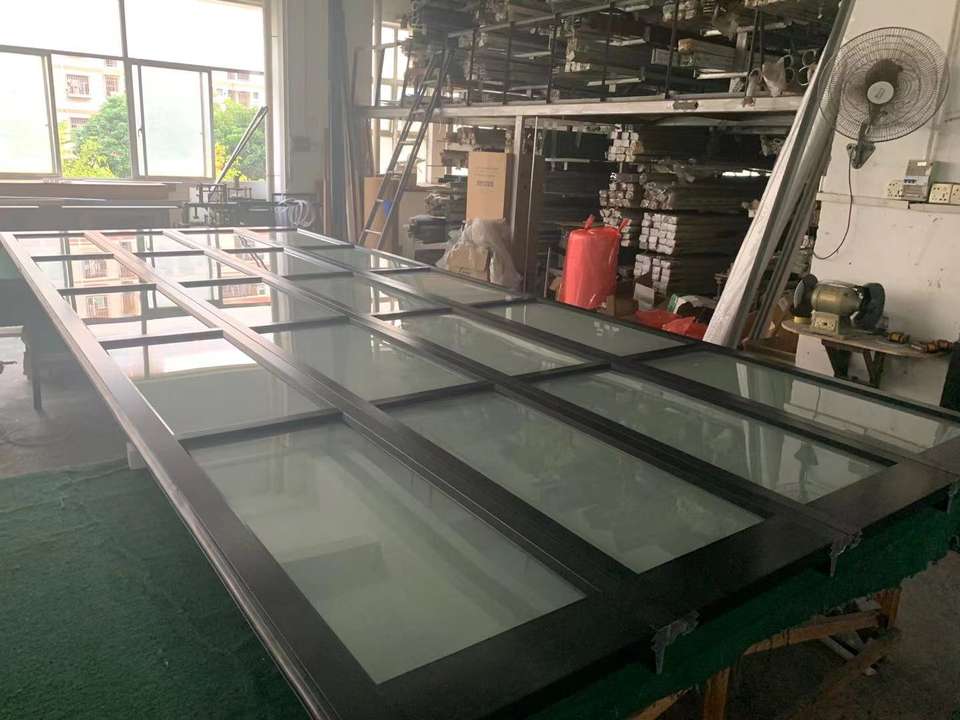

Each tempered glass panel is set into extruded aluminum channels with EPDM rubber gaskets and retained by snap-in aluminum trim. This frameless design eliminates visible screws while ensuring weather tightness.
Get A Quote
Contact us for customized quotation, volume pricing, and project specifications. Response within 24 hours.
Built For Stable Production & Global Supply
Integrated manufacturing workflow covering production, quality control, export packaging, and container loading.
Factory
Modern manufacturing facilities designed for stable production capacity and international export supply.
Production
Standardized production workflow ensures consistent quality and efficient order management.
CNC Processing
Precision CNC equipment improves dimensional accuracy and manufacturing consistency.
Spray Line
Professional surface finishing systems support stable coating quality and color consistency.
Quality Control
Dedicated QC inspections are carried out during production and before shipment.
Packaging
Reinforced export packaging protects products during international transportation.
Container Loading
Optimized loading plans improve shipping efficiency and reduce transportation risks.
Frequently Asked By Global Buyers
Common questions about MOQ, production, customization, export packaging, shipping, and OEM cooperation.
Our MOQ depends on product type, finishes, and customization requirements. Mixed container orders are supported.
Standard lead time is usually 15–35 days after confirming drawings, finishes, and deposit payment.
Yes. OEM, logo branding, custom packaging, and exclusive product configurations are available.
We provide Chinese, German, and Italian hardware options based on market and project requirements.
Selected systems are available with FD30 and FD60 fire-rated configurations for commercial projects.
We export to Europe, North America, the Middle East, Southeast Asia, Australia, and other global markets.
Products use reinforced export packaging with foam protection, corner guards, and waterproof wrapping.
Yes. Custom sizes, finishes, colors, glass options, and architectural adaptations are supported.
