Product Overview

Engineered from 6063-T5 aluminum alloy profiles with a 0.5mm-0.8mm skin thickness, these sectional garage doors feature a folding rolling-up mechanism operated via intelligent remote control. Each panel is insulated with a high-density polyurethane foam core (density ≥45kg/m³), achieving a thermal transmittance of U=0.5 W/m²K and meeting EN 14351-1 standards for air permeability and water tightness.

Key Specifications

Available Options

• Custom width from 2000mm to 6000mm; height from 2000mm to 3000mm

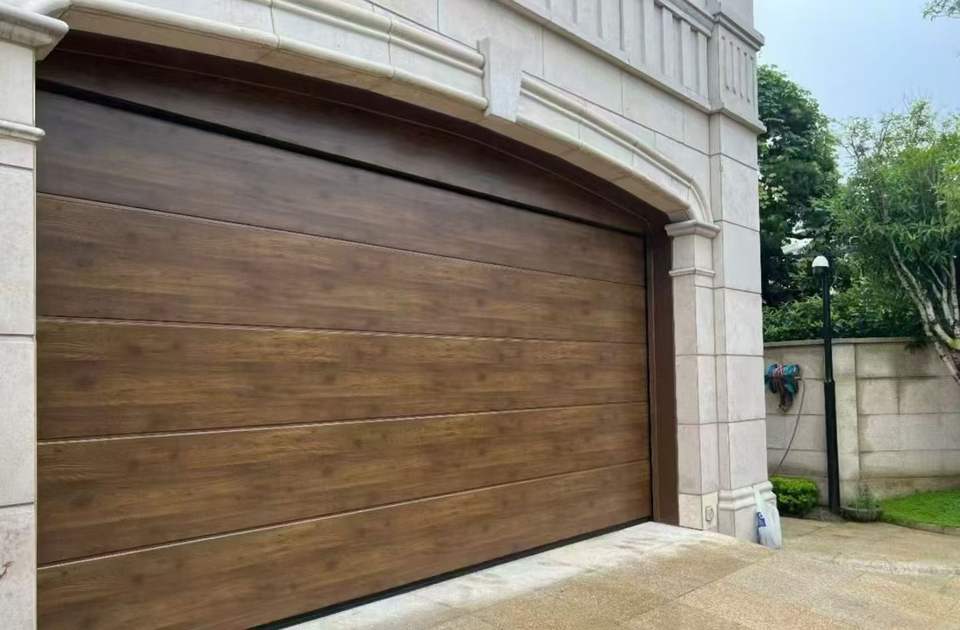

• Over 200 RAL powder-coat colors, plus wood grain (oak, walnut, mahogany) or silver anodized finish
• Intelligent remote control system (rolling code 433MHz) with wall-mounted keypad and smartphone app compatibility

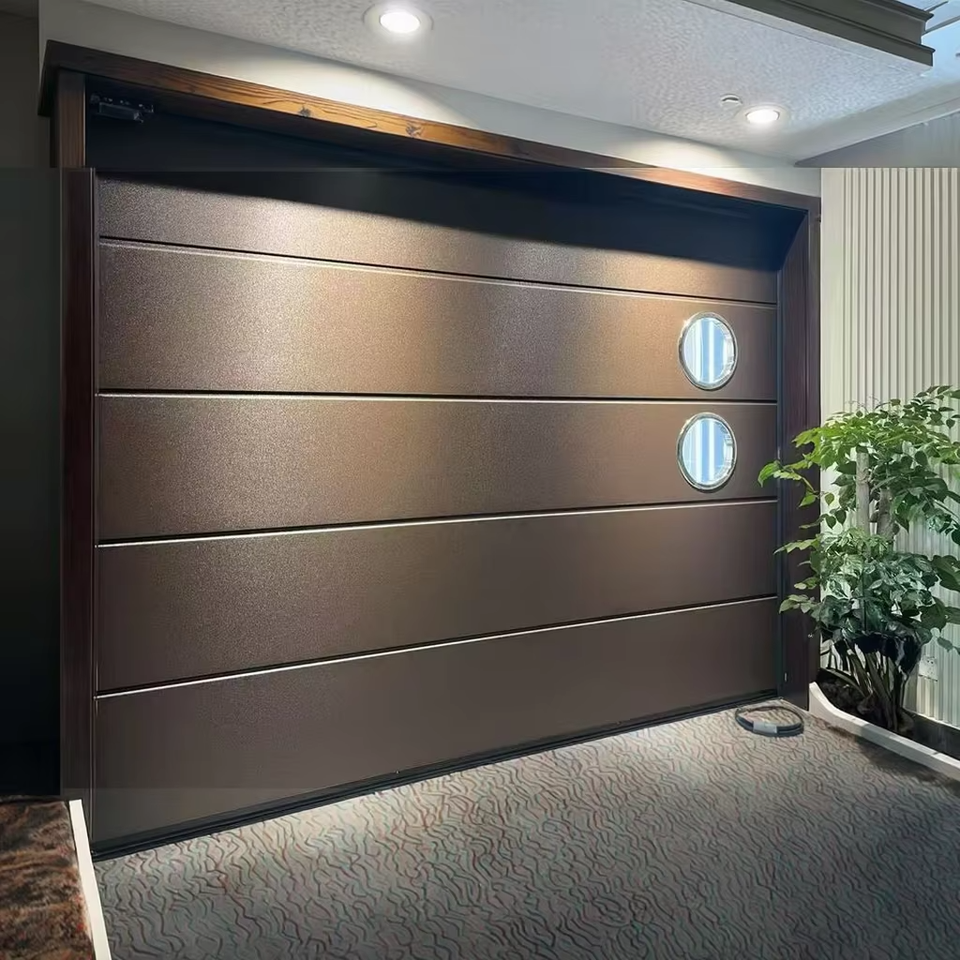

• Optional glass panels (tempered 5mm single glazing or 4+12A+4 insulated glass)

Applications

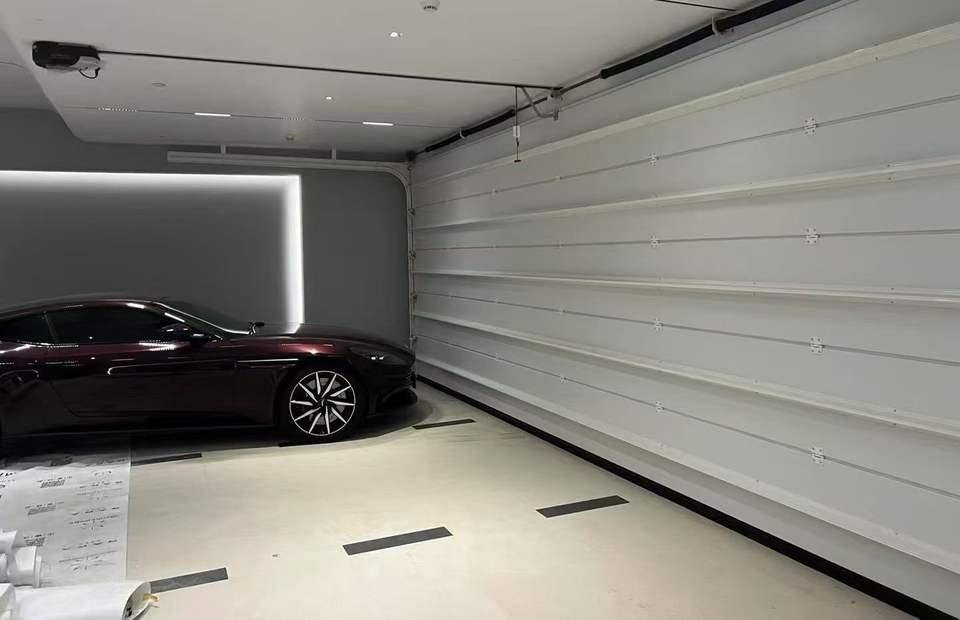

• Residential villa garages requiring space-saving overhead folding operation
• Commercial showrooms and auto dealerships needing large-span, remote-controlled access
• Warehouse loading bays for high-frequency, automated opening and closing

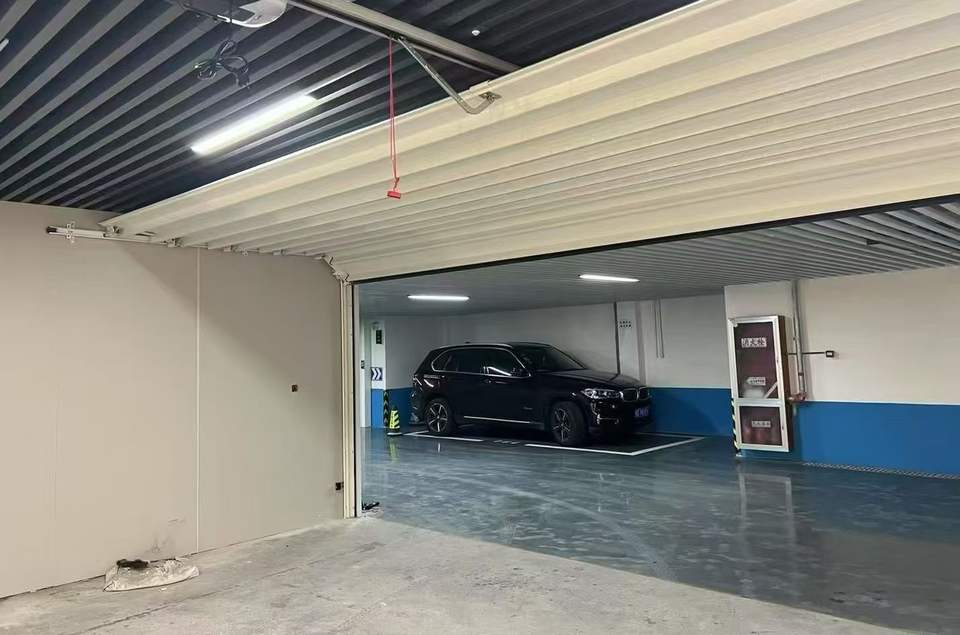

• Underground parking lots with limited headroom where sectional doors are preferred

Customization Capabilities

Panel width, height, color, and insulation thickness can be tailored to project openings. Motor power (500N to 1200N) and remote control frequency (433MHz or 868MHz) are configurable based on door weight and local regulations.

Packaging & Shipping

Each door is packed in reinforced wooden crates with foam padding between panels and polyethylene wrapping for moisture protection. Shipping via 20ft or 40ft containers, with door sections pre-assembled for on-site installation.

Why Choose Us

• 20 Years of OEM experience supplying garage doors to European and Middle Eastern distributors
• Full testing reports for air permeability (Class 4), water tightness (Class 3), and wind load resistance (up to 1200 Pa)
• Flexible MOQ starting from 10 units per order, with sample doors available for approval

Frequently Asked Questions

What is the maximum wind load resistance for these aluminum sectional garage doors?

These doors are tested to withstand wind loads up to 1200 Pa (equivalent to approximately 120 km/h wind speed) based on EN 12424 standard. For higher wind zones, optional reinforcement bars can be added to the bottom panel.

Can I integrate the remote control with my existing smart home system?

The 433MHz rolling code remote can be paired with most universal smart home hubs (e.g., Apple HomeKit via a bridge). Custom RS485 or Wi-Fi modules are available for direct integration with systems like Control4 or Crestron.

Are these doors suitable for high-humidity coastal environments?

Yes, the 6063-T5 aluminum alloy is corrosion-resistant, and the powder-coated finish provides additional protection. For severe salt spray conditions, anodized finish is recommended; we can supply salt spray test reports per ASTM B117.

What is the minimum order quantity (MOQ) for custom colors?

Standard RAL colors have a MOQ of 10 doors. Custom RAL or wood grain finishes require a MOQ of 50 doors due to powder-coating setup costs. Sample panels can be produced for approval before bulk production.

How are the doors packed for sea freight, and what is the typical lead time?

Each door is disassembled into panel sections, wrapped in foam and stretch film, then packed in a plywood crate. Lead time is 15-20 working days for standard sizes and colors, and 25-30 working days for fully custom orders.
