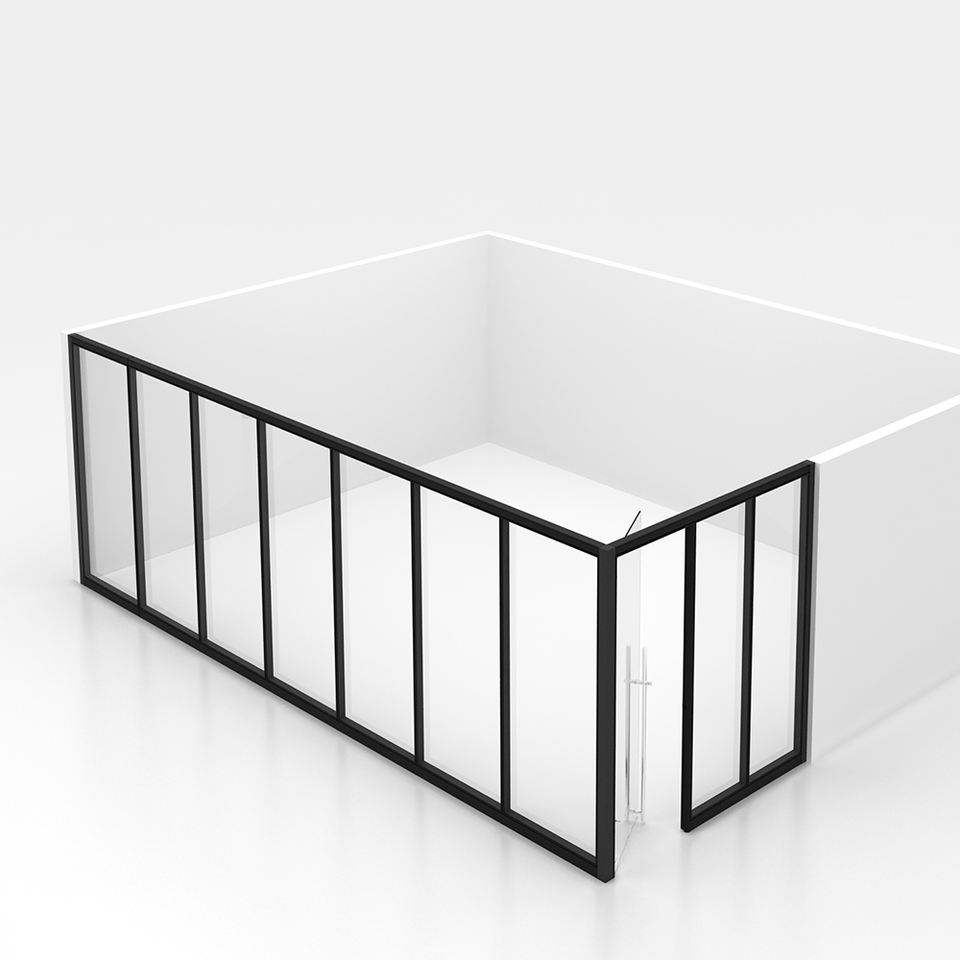

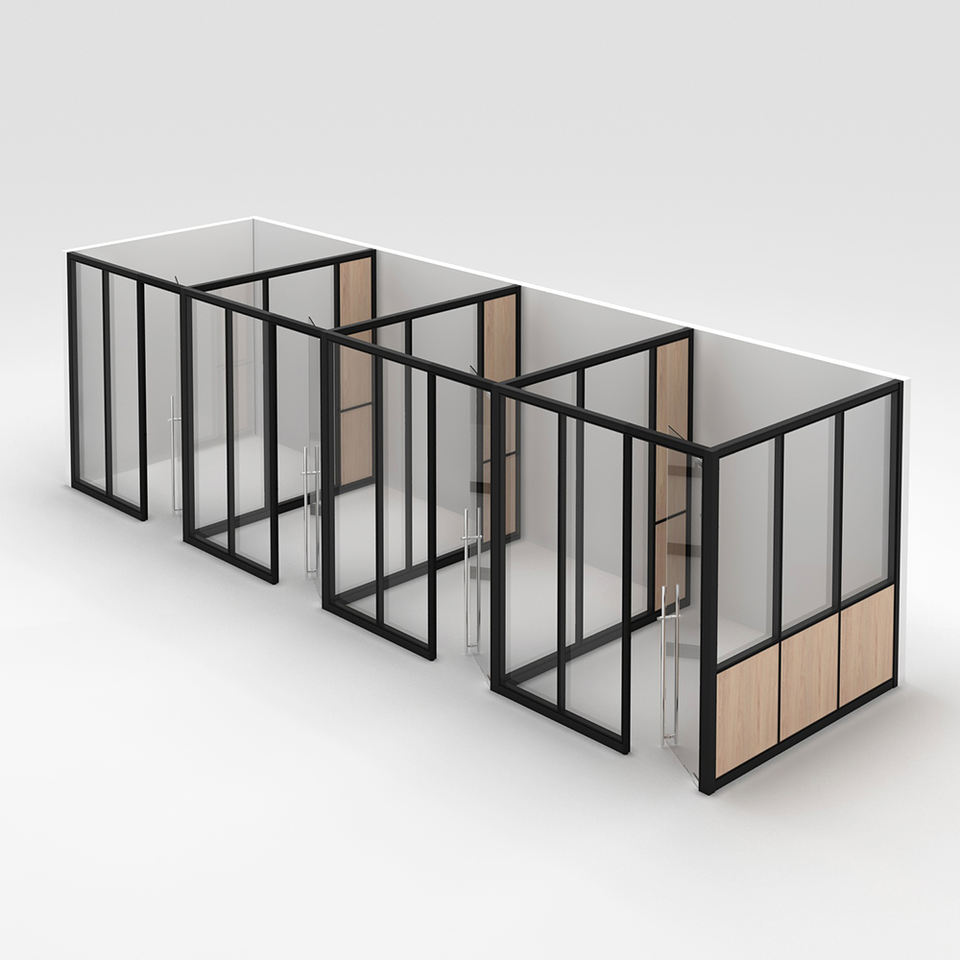

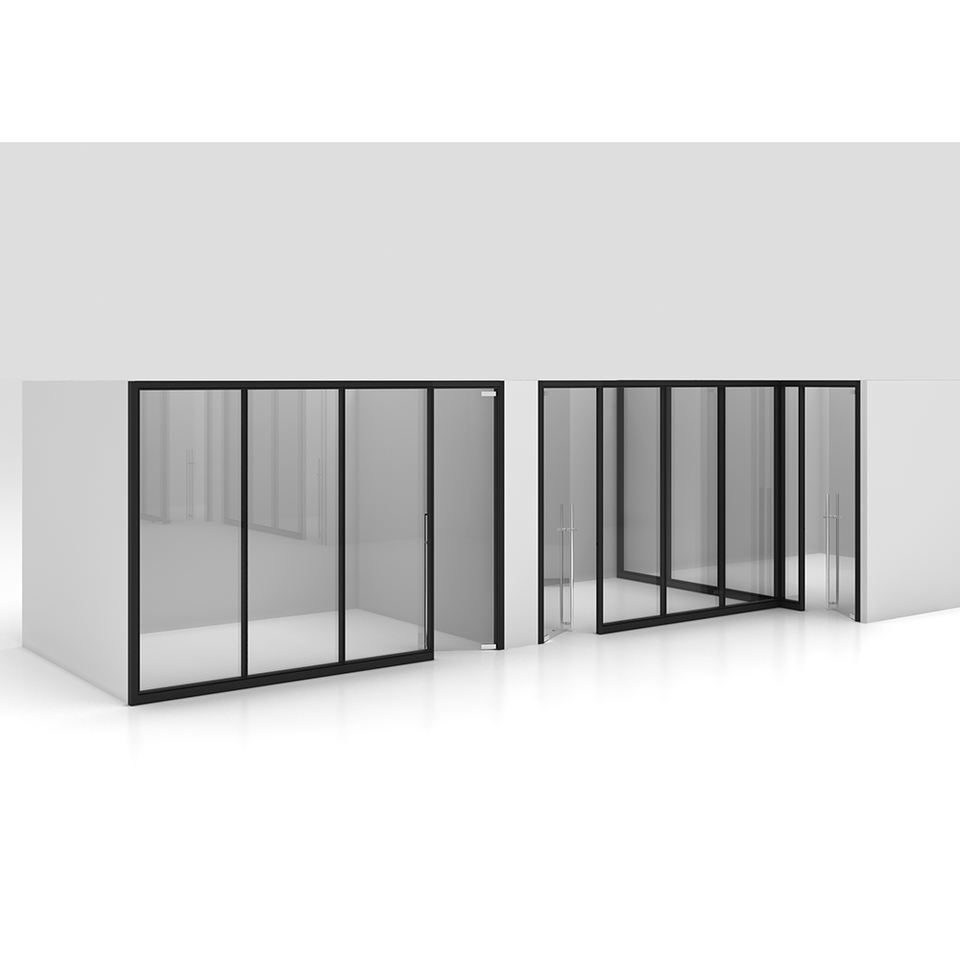

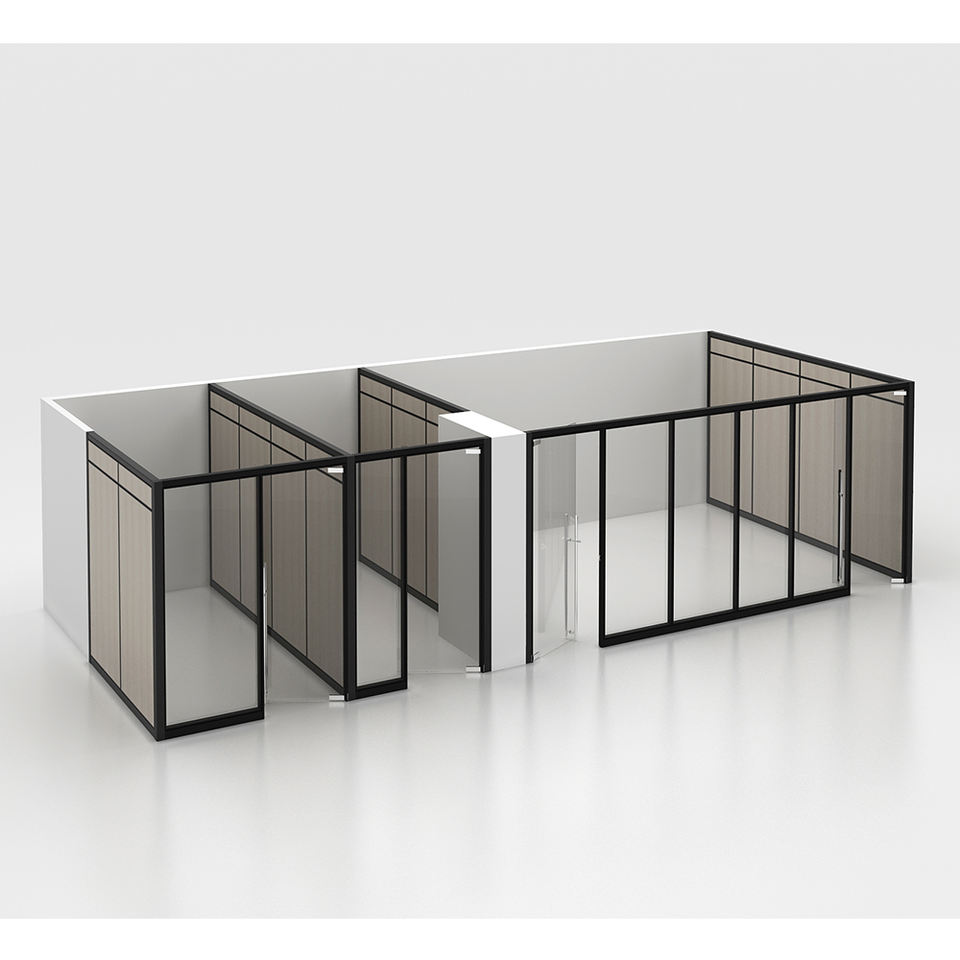

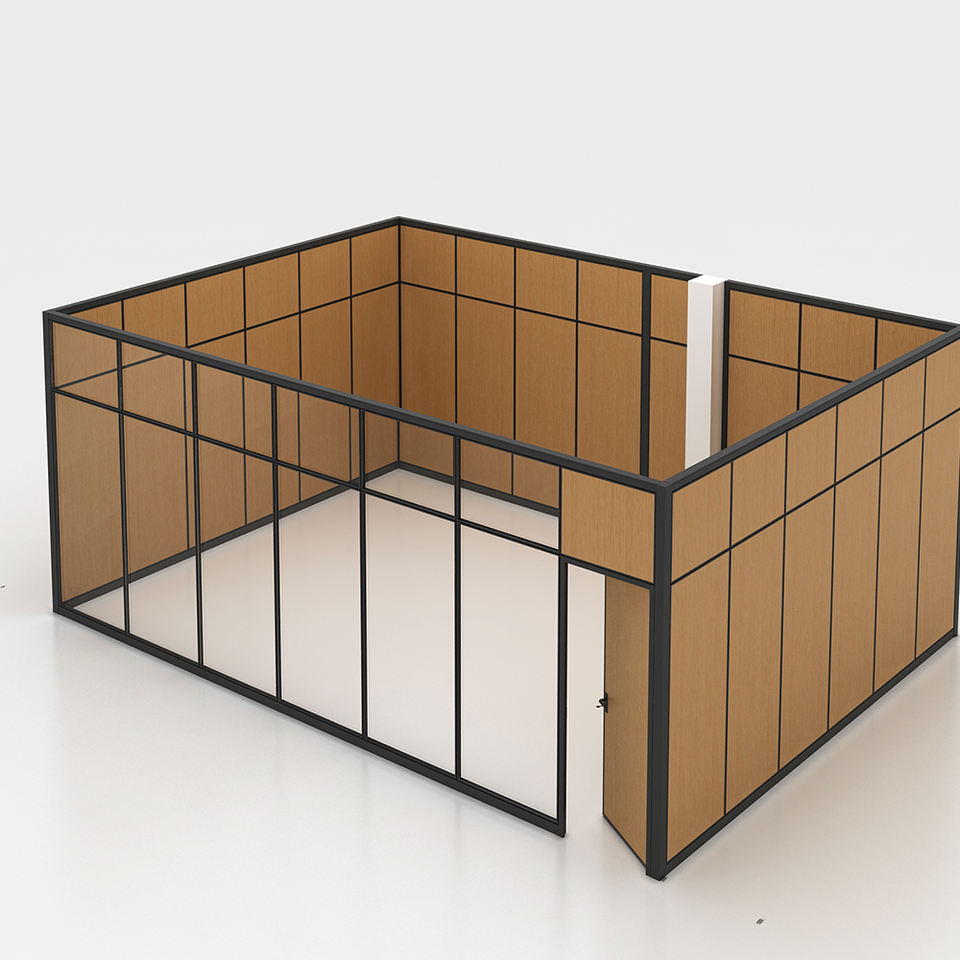

Aluminum Framed Glass Partition Wall – Modular Office

Product Overview

Engineered for modern commercial interiors, this glass partition wall system utilizes 6063-T5 aluminum alloy profiles with a 1.5mm wall thickness for structural rigidity. The modular frameless design supports 12mm or 15mm tempered glass panels, achieving sound transmission class (STC) ratings up to 40 dB in standard configurations. Certified under EN 12150 for thermally toughened safety glass, the system integrates seamlessly with existing ceiling and floor tracks.

Key Specifications

Available Options

• Panel widths: 600mm, 800mm, 1,000mm, or 1,200mm
• Finish: RAL powder coating (any color), brushed stainless steel, or matte black
• Glass type: clear, frosted, laminated, or low-iron ultra-clear
• Hardware: flush handles, push-to-open magnetic locks, or concealed sliding tracks
• Sealing: brush seals, silicone gaskets, or acoustic drop seals

Applications

• Private offices in corporate headquarters requiring sound separation between workstations
• Executive conference rooms with floor-to-ceiling glass for open visual connectivity
• Medical clinic waiting areas where hygiene and natural light are prioritized
• Boutique hotel lobbies using floor-to-ceiling partitions to define lounge zones

Customization Capabilities

Custom panel heights up to 3,600mm available with reinforced profiles. Integrated power and data pass-through channels can be added within the vertical mullions. Custom RAL colors match any corporate branding palette.

Packaging & Shipping

Each glass panel is individually wrapped in PE film and sandwiched between plywood boards with foam corner protectors. Aluminum profiles are bundled with protective tape and shipped in 6-meter wooden crates. Standard FOB delivery from Ningbo or Shanghai ports.

Why Choose Us

• Direct factory pricing with no middlemen, offering 15-25% cost advantage over branded systems
• ISO 9001:2015 certified production line with automated CNC cutting and anodizing
• Global shipping to 40+ countries with full documentation (B/L, packing list, CO)

Frequently Asked Questions

What is the maximum unsupported height for this glass partition system?

The standard system reaches up to 3,000mm with 1.5mm aluminum profiles. For heights up to 3,600mm, we recommend reinforced profiles with 2.0mm wall thickness and additional ceiling anchors. Each configuration is verified via deflection calculations per EN 1999.

Can the partition walls be disassembled and relocated?

Yes, the modular clip-in design allows full reuse of both glass panels and aluminum profiles. The system uses no permanent adhesives; all connections are mechanical via interlocking extrusions and set screws. Relocation typically requires new floor and ceiling tracks only.

Is this system suitable for high-traffic commercial environments like shopping malls?

Yes, the 12mm tempered glass meets EN 12600 Class 1(B)1 impact resistance. The aluminum profiles are rated for 200kg/m² wind load when anchored to concrete ceilings. For mall applications, we recommend laminated glass (2x 6mm) for enhanced safety against accidental impact.

What is the minimum order quantity (MOQ) for customized RAL colors?

MOQ for custom powder coating is 50 square meters per color. Standard silver anodized finish has no MOQ. For small orders under 50m², we can match RAL colors with a 15% surcharge on finishing costs.

How are the glass panels sealed to prevent dust and noise leakage?

Each glass-to-aluminum joint uses dual-seal technology: a primary EPDM gasket compressed during installation and a secondary silicone bead applied at the factory. For acoustic-rated partitions, we add a compressible foam drop seal at the bottom that engages when the door is closed.
