Product Overview

Engineered for luxury hotel environments, these temporary mobile dividers combine a 6063-T5 aluminum alloy frame with a multi-layer acoustic core achieving STC 45-50 ratings. The sliding folding mechanism operates on a concealed top-hung track system, supporting panel heights up to 4,000mm without bottom guides. Each panel features a powder-coated finish with optional wood veneer laminates for seamless integration with hotel interior schemes.

Key Specifications

Available Options

• Panel widths from 600mm to 1,200mm; heights up to 4,000mm
• RAL 9010, 9016, 7016, 9005, or custom color matching to hotel brand standards
• Bottom seal options: automatic drop seal or magnetic sweep for floor contact
• Glass panel inserts: 5mm tempered laminated glass or 8mm acoustic glass

Applications

• Hotel ballroom subdivision for simultaneous events requiring noise isolation
• Conference center flexible meeting rooms with movable wall configurations
• Restaurant private dining areas created from open-plan spaces during service hours
• Exhibition hall temporary booth separation in luxury hospitality shows

Customization Capabilities

Surface finishes can match any RAL or wood veneer reference, with custom panel dimensions and acoustic performance levels. Hardware color and handle designs are available in brushed stainless steel, matte black, or satin brass to complement hotel interior specifications.

Packaging & Shipping

Each panel is individually wrapped in protective foam and corrugated cardboard, with corner guards applied to all edges. Standard export packing in seaworthy plywood crates for FCL shipments, with custom crate sizes for LCL consolidation.

Why Choose Us

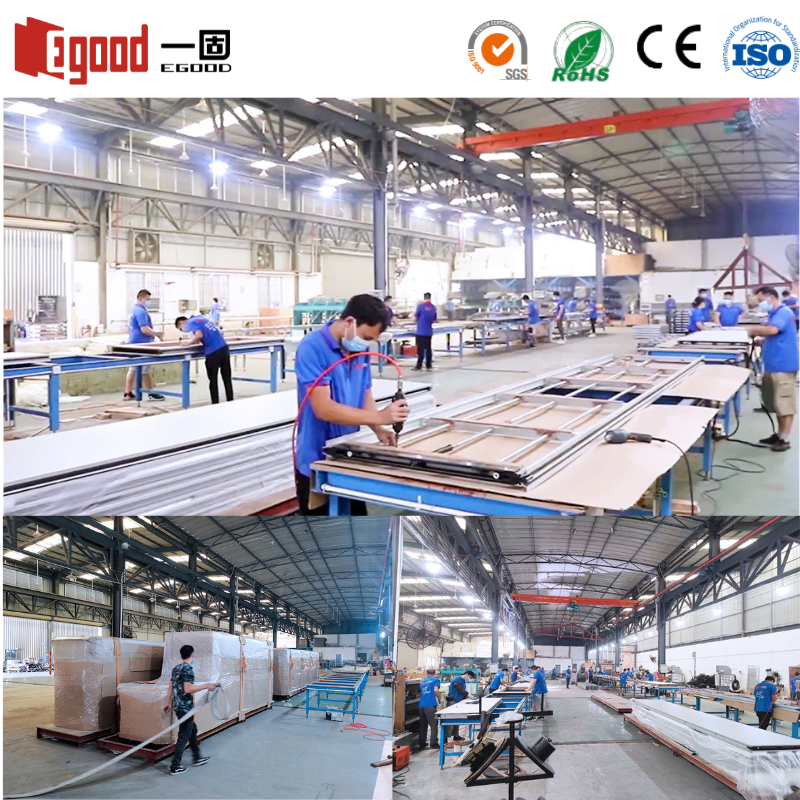

• Direct factory production with in-house powder coating line ensuring color consistency across large orders
• Acoustic testing reports available for STC 45 and 50 configurations from third-party labs
• 5-year structural warranty with spare parts inventory maintained for all moving components

Frequently Asked Questions

What acoustic performance can I expect from these movable wall partitions?

Standard configuration achieves STC 45 with a 65mm panel thickness. Upgrading to 75mm panels with double acoustic seals and mineral wool core increases STC to 50. All acoustic data is verified by independent laboratory testing per ASTM E90.

Can the finish match existing hotel interior woodwork or wall colors?

Custom RAL powder coating and wood veneer matching is available. Provide a color chip or RAL code, and we produce a 300mm x 300mm sample panel for approval before production. Minimum order for custom finishes is 50 panels.

Are these partitions suitable for use in hotel guest room corridors or just public spaces?

Designed primarily for public areas like ballrooms and conference rooms. For guest room corridors, we recommend our acoustic-rated swing doors or sliding systems with lower height profiles (2,400mm max) to match standard ceiling heights.

What is the typical lead time for a hotel project order?

Standard production lead time is 25-30 working days after sample approval. For orders exceeding 200 panels, allow 35-40 working days. Express production (15 working days) available for small quantities under 50 panels with a 20% surcharge.

How are the panels packaged for long-distance ocean freight?

Each panel is individually wrapped in 5mm foam sheeting, then placed in a corrugated cardboard sleeve with reinforced corners. Panels are stacked vertically in plywood crates with internal bracing. Crates are palletized and shrink-wrapped for container loading. Maximum 12 panels per crate.
