Wood Grain Steel Mod | Office Partition China
Manufacturer in China
office door. modern design. Custom sizes available. OEM/ODM from JuSen factory, China.
- Factory Direct Manufacturer
- OEM & ODM Available
- Custom Size Production
- Global Export Experience
Product Overview

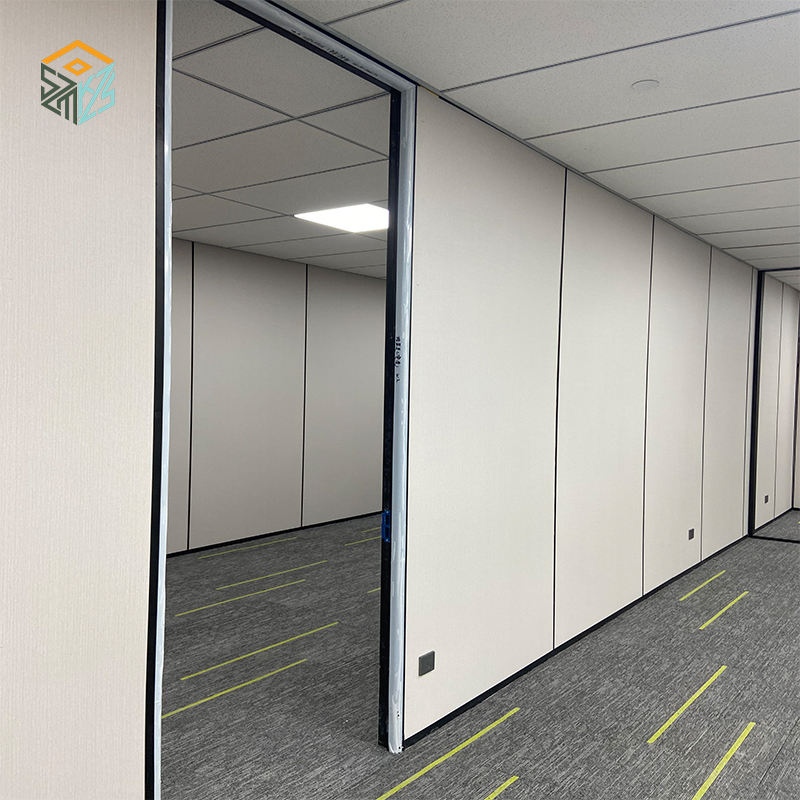

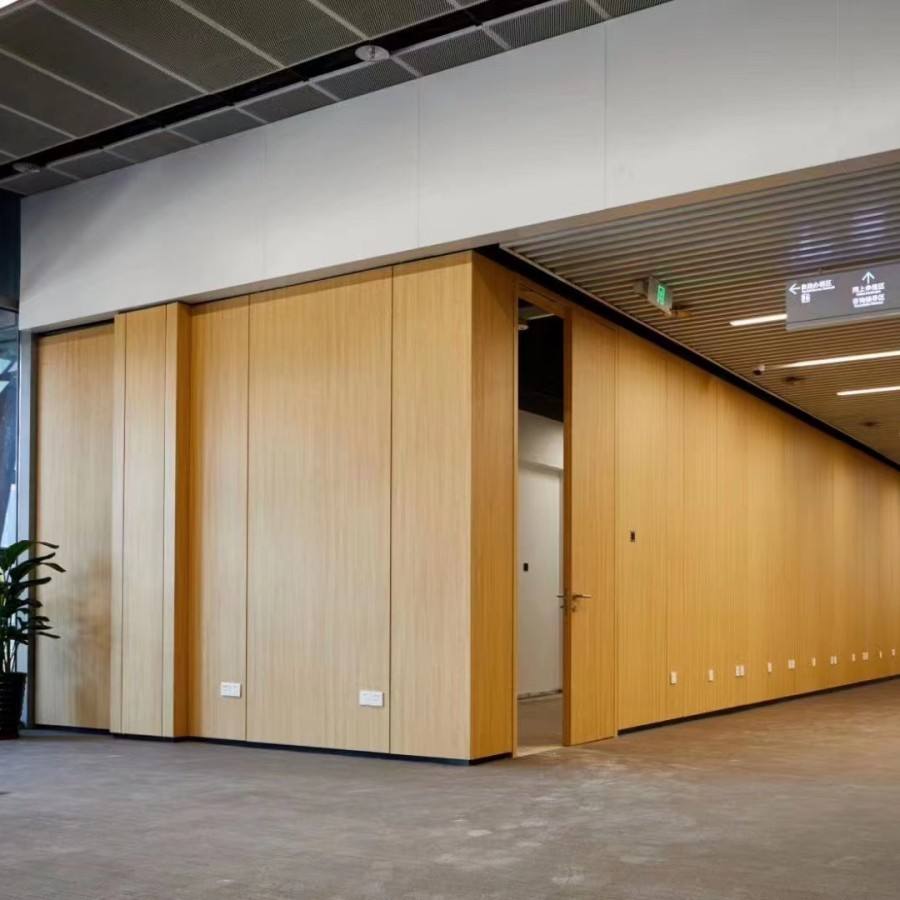

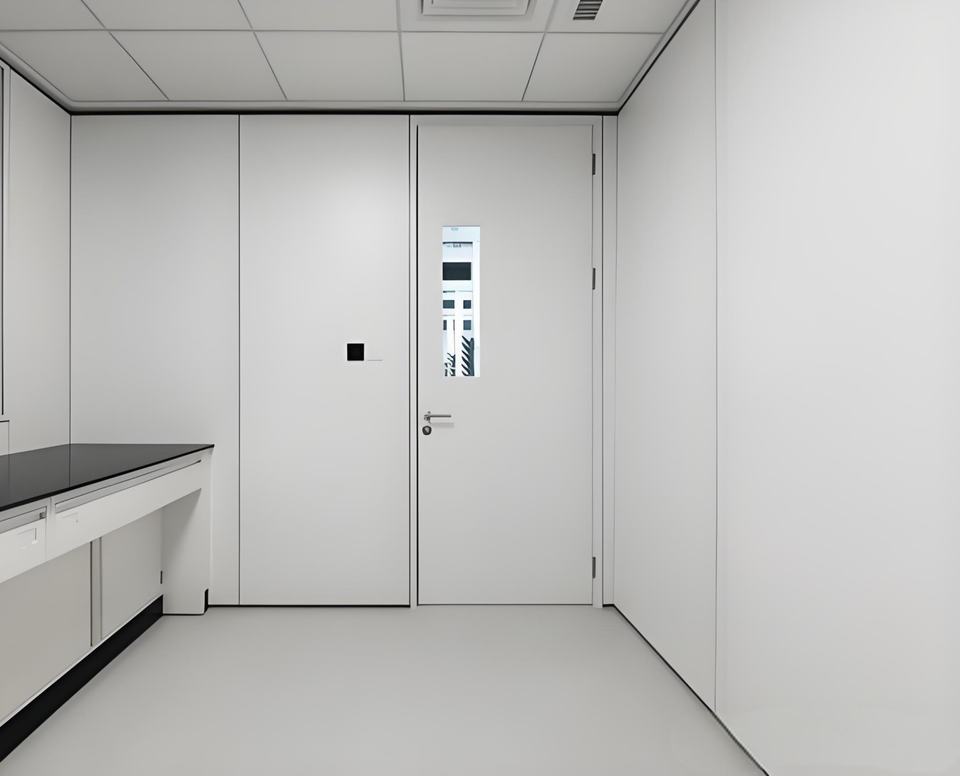

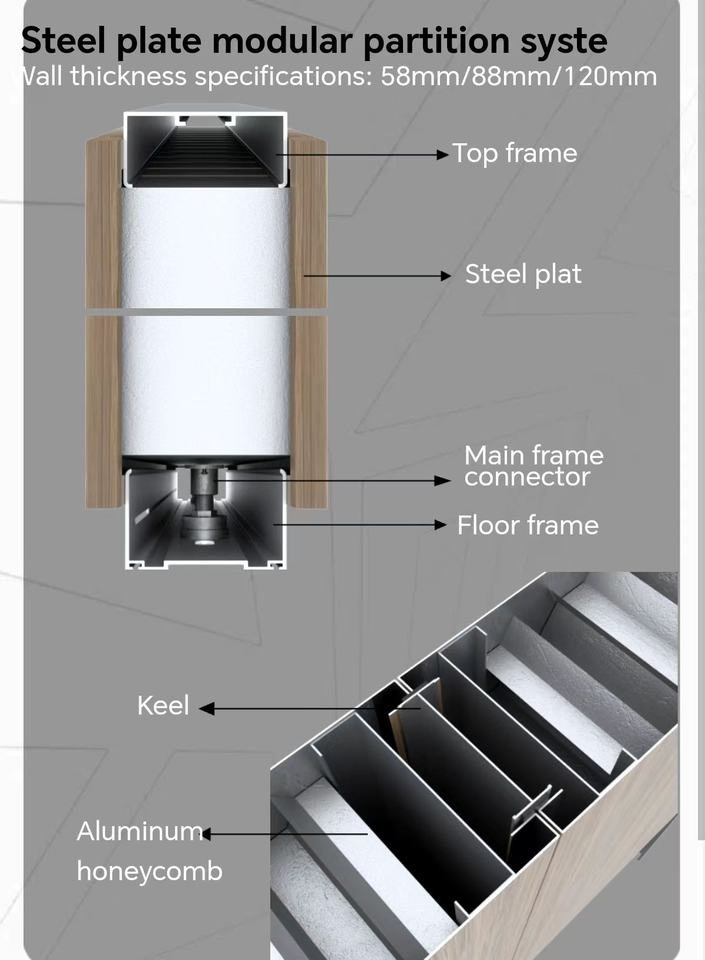

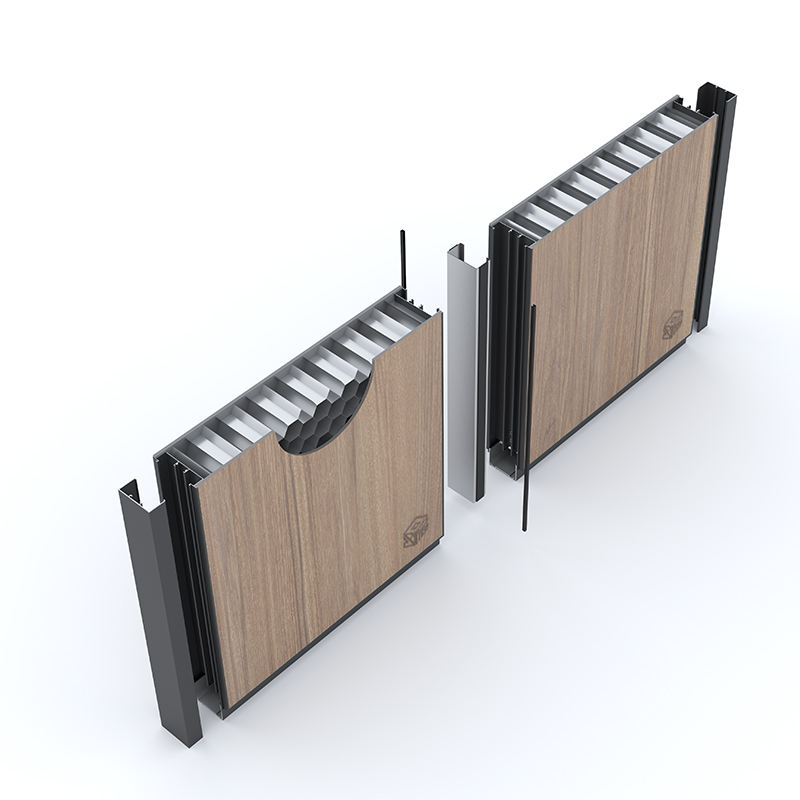

Engineered for flexible space division, these wood grain private modular metal wall partitions utilize a 0.8mm cold-rolled steel substrate with a textured wood grain powder coating. Certified to ASTM E119 for fire resistance, each panel integrates a sound-dampening mineral wool core to achieve an STC rating of 45 for acoustic privacy in office environments.
Key Specifications
| Material | 0.8mm cold-rolled steel with wood grain powder coating |
| Door Thickness | 50mm (panel thickness) |
| Fire Rating | ASTM E119, 60-minute fire resistance |
| Core | Mineral wool (density 100 kg/m³) for sound dampening |
| Finish | Wood grain powder coating (teak, walnut, oak, cherry options) |
| Max Size | 1200mm width x 3000mm height per panel |
| Warranty | 5 years |
Available Options
- Panel sizes: 600mm, 900mm, 1200mm widths; 2400mm, 2700mm, 3000mm heights
- Wood grain finishes: teak, walnut, oak, cherry, mahogany
- Integrated door panels with push-pull hardware or privacy locks
- Glass inserts: clear, frosted, or wired glass (up to 30% of panel area)
Applications
- Open-plan offices requiring reconfigurable meeting rooms
- Private phone booths or focus rooms in co-working spaces
- Executive offices with wood aesthetic in corporate headquarters
- Medical clinic consultation rooms needing acoustic separation
Customization Capabilities
Custom panel widths from 300mm to 1500mm and heights up to 4000mm can be produced, with integrated glass sections or pass-through windows. Finish can be matched to RAL or Pantone color codes for corporate branding.
Packaging & Shipping
Each panel is wrapped in polyethylene foam and corrugated cardboard, then crated in plywood for export. Flat-packed panels ship via FCL containers, with 144 square meters per 20-foot container.
Why Choose Us
- Direct factory pricing with no middlemen, reducing cost by 15-20% versus branded competitors
- Lead times of 20-25 working days for standard orders, with rush options available
- Full fire and acoustic test documentation provided with every shipment
Frequently Asked Questions
What fire certification does this partition system hold?
These modular walls have been tested to ASTM E119 standards, achieving a 60-minute fire resistance rating. A copy of the test report is supplied with each order.
Can the wood grain finish be matched to an existing office decor?
Yes, custom color matching to RAL, Pantone, or a physical sample is available. Minimum order for custom finish is 50 square meters.
Are these partitions suitable for high-traffic commercial corridors?
Designed for commercial-grade durability, the steel substrate and powder coating resist scuffs and impacts. The mineral wool core provides additional structural stability.
What is the minimum order quantity for a custom-sized panel?
Minimum order is 20 square meters for standard sizes, or 50 square meters for custom sizes or finishes. Smaller trial orders may be accommodated at higher per-unit pricing.
How are these walls packaged for international shipping?
Each panel is individually wrapped in foam and cardboard, then stacked in a plywood crate. Crates are strapped and marked for easy identification. Full container loads are shrink-wrapped.
