Product Overview

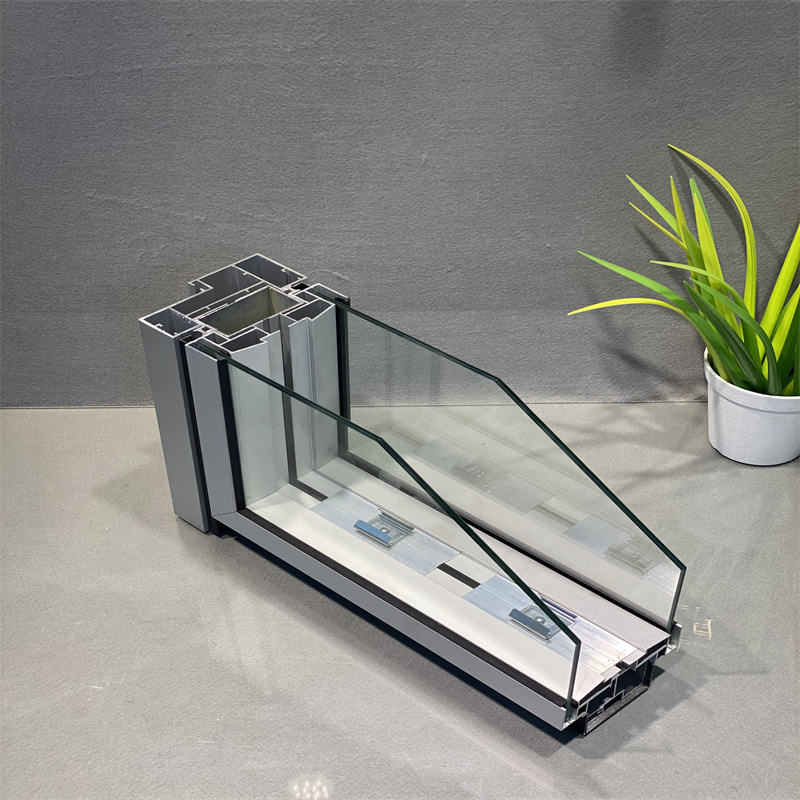

Engineered for sound attenuation in high-traffic commercial environments, this 108mm steel keel partition system integrates a 6mm + 12A + 6mm double-glazed unit with factory-installed built-in louvers. The steel keel framework provides dimensional stability for spans up to 3000mm in height, while the sealed air gap reduces sound transmission by up to 35 dB, meeting typical office and hospitality noise control requirements.

Key Specifications

Available Options

• Panel widths from 600mm to 1200mm; heights from 2000mm to 3000mm
• RAL 9016 white, RAL 9005 black, or custom RAL powder coat for steel frame
• Manual or motorized louver control; 25mm or 50mm louver blade width
• Clear, frosted, or tinted glass (6mm or 8mm) for inner and outer panes

Applications

• Open-plan office dividers requiring visual privacy with adjustable airflow
• Conference room partitions where sound isolation between meetings is critical
• Hotel corridor or lobby separation panels needing integrated light control
• Hospitality reception areas combining transparency with noise reduction

Customization Capabilities

Dimensions, louver blade angle (0–90°), glass tint levels, and frame color can be tailored per project specifications. Additional sound-dampening infill between glass panes is available for enhanced STC ratings.

Packaging & Shipping

Each glass panel is individually crated with foam edge protectors; steel keel sections are bundled and strapped. Full container loads (FCL) ship within 25 days; less-than-container loads (LCL) within 30 days from order confirmation.

Why Choose Us

• Factory-direct pricing with consistent 1.2mm steel gauge across all production runs
• ISO 9001 certified manufacturing with 100% glass quality inspection before crating
• Over 20 Years exporting steel partition systems to commercial projects in North America and Southeast Asia

Frequently Asked Questions

What is the sound reduction rating of this 108mm steel keel double glass partition?

The 6+12A+6 glass configuration with sealed air gap achieves a weighted sound reduction index (Rw) of approximately 35 dB, measured per ASTM E90 standards. This is suitable for reducing conversational noise between adjacent office zones but is not STC-rated for full acoustic separation.

Can the built-in louvers be controlled independently for each glass panel?

Yes, each glass panel’s louvers can be operated manually via a side crank or integrated into a motorized system with wall-mounted switches. Louvers are pre-installed inside the sealed air gap and are not field-adjustable without disassembling the glass unit.

Are these partitions suitable for wet areas like hotel bathrooms or pool enclosures?

This product is designed for dry interior applications. The steel keel and standard glass seals are not rated for continuous moisture exposure. For wet zones, specify an aluminum frame variant with silicone-sealed glass edges.

What is the minimum order quantity for custom RAL colors?

Custom RAL powder coat colors require a minimum order of 50 square meters per color to maintain consistent batch quality. Standard RAL 9016 and RAL 9005 are available with no MOQ.

How are the glass panels protected during overseas shipping?

Each double-glazed unit is packed in a plywood crate with 50mm foam padding on all edges. The crates are stackable and labeled with handling instructions. Steel keel sections are wrapped in VCI paper and strapped to pallets to prevent corrosion.

Get A Quote

Contact us for customized quotation, volume pricing, and project specifications. Response within 24 hours.
