Product Overview

JuSen Doors’ aluminum soundproof glass office partition system utilizes 6063-T5 aluminum alloy frames with a 1.5mm wall thickness, paired with 5mm+12A+5mm double-glazed tempered glass for acoustic insulation. Certified to EN 14351-1 and ASTM E90 standards, these partitions achieve STC ratings up to 40 dB, suiting commercial environments requiring noise control.

Key Specifications

Available Options

• Panel widths: 600mm, 900mm, 1200mm; custom sizes up to 1200mm x 3000mm
• Frame finishes: RAL colors (white, silver, black, grey) or brushed anodized

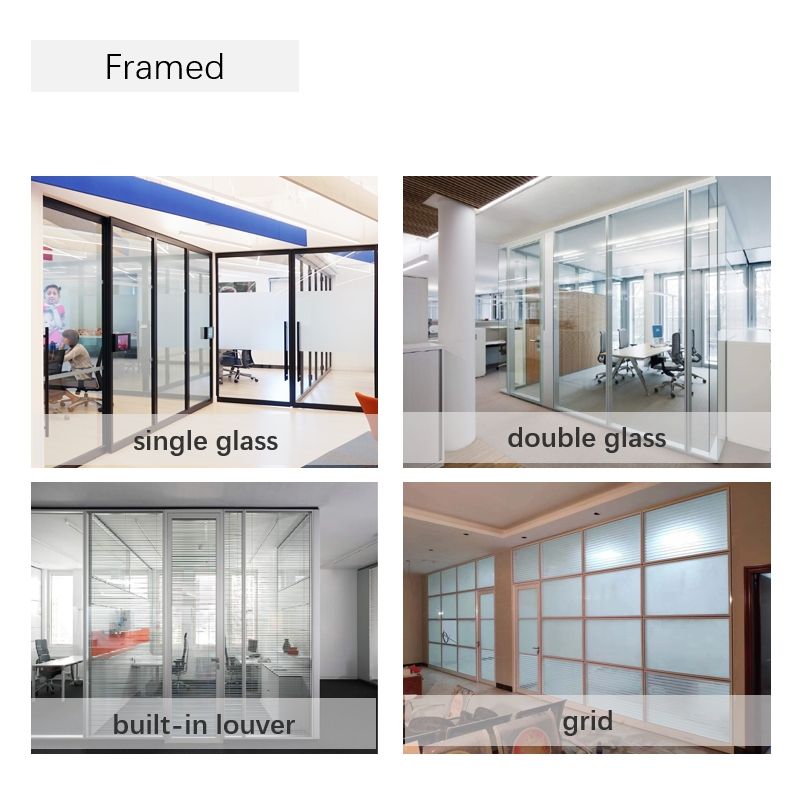

• Glass options: clear, frosted, tinted, or laminated with privacy film
• Hardware: flush handles, push-pull handles, or key-lock systems

Applications

• Open-plan office acoustic room dividers for meeting areas
• Executive office glass partitions with soundproofing for private discussions
• Reception area glass walls to separate waiting zones from workspaces
• Conference room enclosures requiring STC 35+ dB for confidential meetings

Customization Capabilities

Frame dimensions, glass thickness, and acoustic seal types can be tailored to project-specific STC requirements. RAL color matching and custom glass treatments (e.g., silk-screened logos) are available for brand consistency.

Packaging & Shipping

Each panel is wrapped in polyethylene foam and secured in plywood crates with corner protectors, shipped via FCL or LCL from Foshan port. Standard lead time is 15–20 working days after order confirmation.

Why Choose Us

• Factory-direct pricing from Foshan with 20 Years aluminum partition production
• STC 40 dB certified acoustic performance tested per ASTM E90
• Custom sizes and finishes with 5-year structural warranty

Frequently Asked Questions

What STC rating does the standard partition achieve?

Standard 5mm+12A+5mm double-glazed configuration achieves STC 35–40 dB per ASTM E90 testing. Upgrading to 6mm+12A+6mm glass with laminated interlayers can increase STC to 45 dB.

Can the partition be customized with a specific RAL color?

Yes, any RAL color is available for the aluminum frame powder coating. Minimum order quantity for custom colors is 50 square meters, with a lead time of 20 working days.

Is this partition suitable for a hotel conference room?

Yes, with STC 35+ dB and tempered glass, it meets hotel requirements for meeting room sound isolation. The aluminum frame resists corrosion in high-humidity environments.

What is the maximum panel height without a horizontal joint?

Maximum single-panel height is 3000mm. For heights above 3000mm, a horizontal mullion joint is required, which can be concealed with matching finish profiles.

How are the partitions packaged for international shipping?

Each glass panel is separated by foam interlayers in a plywood crate, with aluminum frames bundled separately in cardboard and shrink wrap. All crates are marked with handling instructions and dimensions for warehouse sorting.
