Product Overview

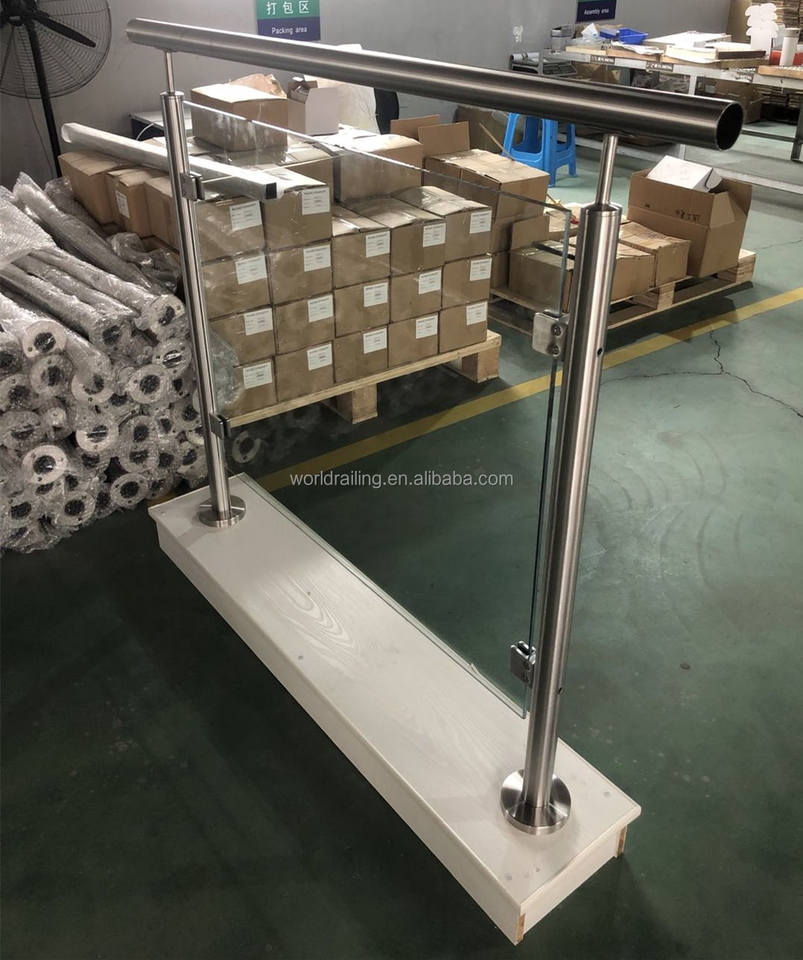

Engineered from 16-gauge stainless steel with a brushed satin finish, the YL series railing system integrates tempered glass panels secured by stainless steel clamps and a continuous handrail. Certified to EN 1991-1-1 for residential and commercial balustrade applications, this railing features a stained finish option that resists UV degradation and corrosion in coastal environments.

Key Specifications

Available Options

• Glass thickness: 8mm, 10mm, or 12mm tempered
• Finish colors: stained black, stained bronze, or clear brushed stainless
• Handrail profile: round, rectangular, or flat bar
• Post mounting: surface mount, side mount, or core-drilled

Applications

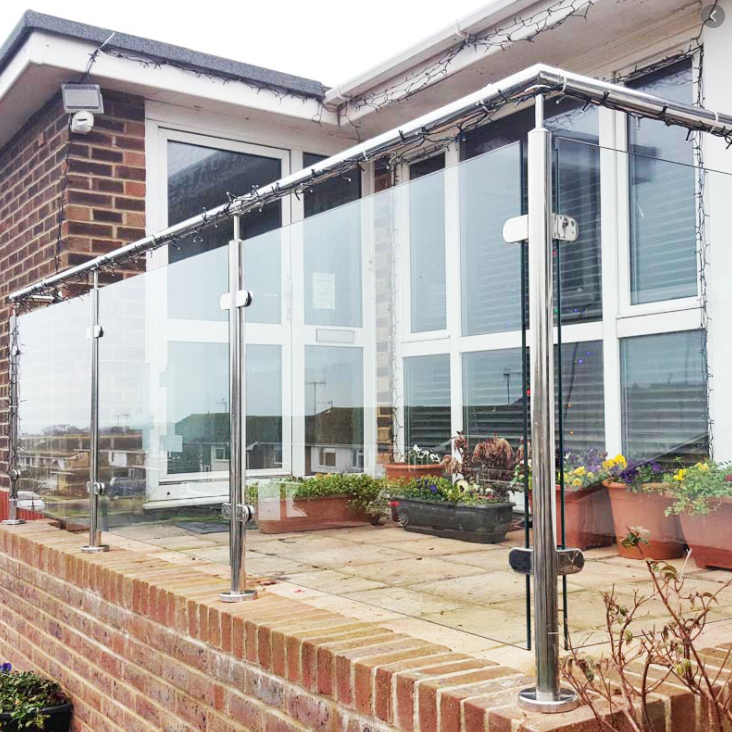

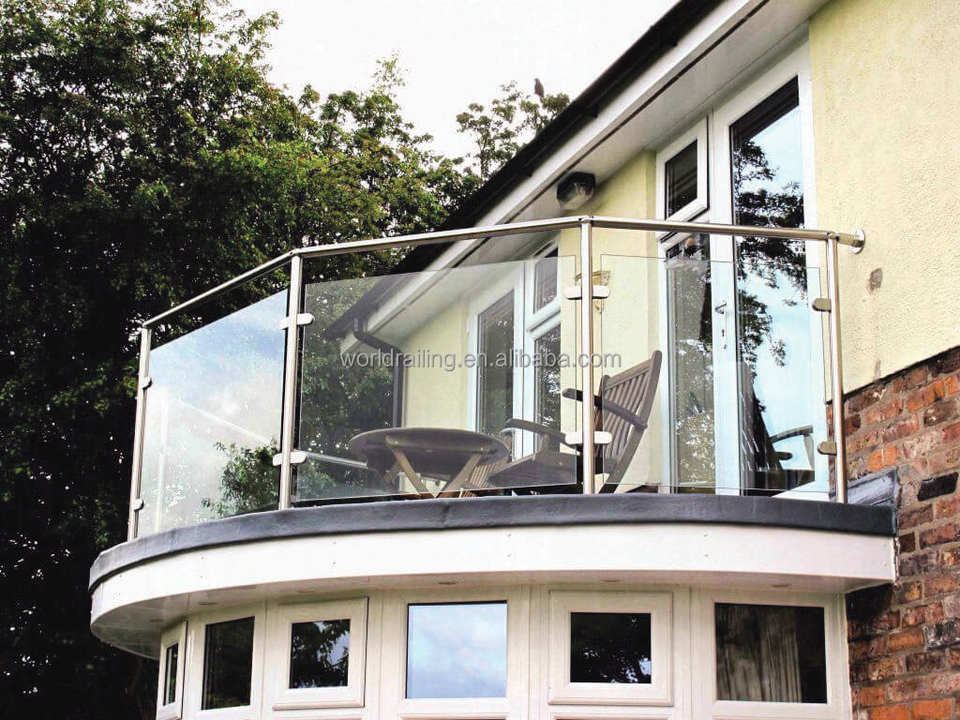

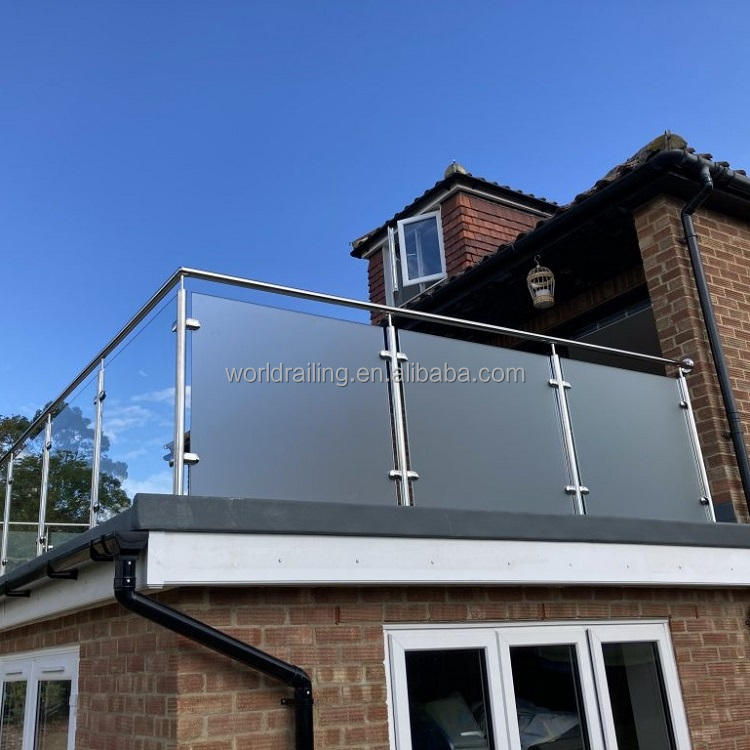

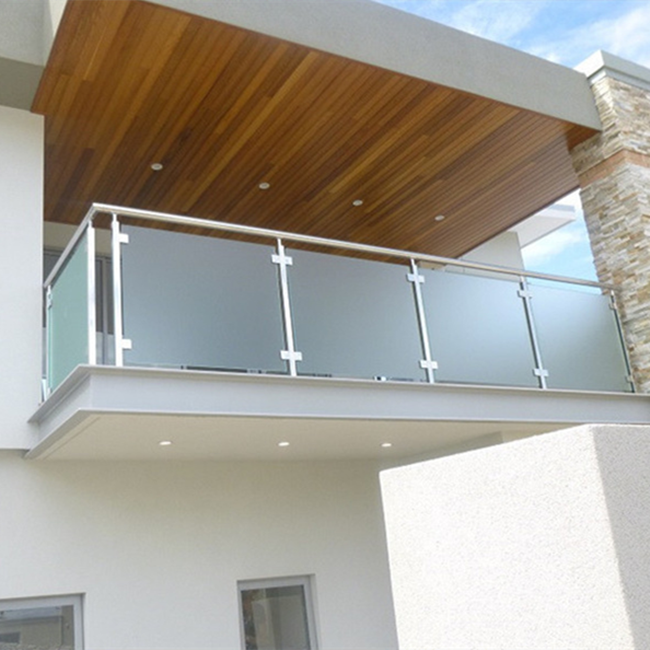

• Residential balcony glass railings with continuous handrail for high-rise apartments
• Commercial terrace balustrades in hotels and restaurants
• Rooftop deck safety barriers for office buildings
• Staircase glass railings with stainless steel handrails for interior atriums

Customization Capabilities

Custom post spacing, glass panel height (800mm–1200mm), and handrail end caps can be tailored to specific project dimensions. Stained finish color matching (RAL or custom) is available for orders over 50 linear meters.

Packaging & Shipping

Glass panels packed in plywood crates with foam separators; stainless steel posts and handrails wrapped in protective plastic and bundled. Standard lead time is 15–20 working days, with FOB or CIF shipping options available.

Why Choose Us

• Direct factory pricing with no middleman markups
• EN 12150 and EN 1991-1-1 certified components for structural safety
• 5-year structural warranty covering glass and stainless steel integrity

Frequently Asked Questions

Is the tempered glass suitable for coastal areas with salt spray?

Yes. The 10mm tempered glass is manufactured to EN 12150 with a heat-soak test to reduce nickel sulfide inclusion risk. The 304 stainless steel posts and handrails have a brushed satin finish that provides corrosion resistance in coastal environments, though regular rinsing with fresh water is recommended for long-term appearance.

Can the stained finish be matched to a specific RAL color?

Yes. For orders of 50 linear meters or more, we offer custom RAL color matching for the stained finish. The standard stained options are black (RAL 9005) and bronze (RAL 8004). Custom colors require a 15-day lead time for color sample approval before production.

What is the maximum glass panel height for balcony use?

The standard maximum glass panel height is 1200mm, with a typical infill height of 1000mm above finished floor level. For taller applications (up to 1500mm), 12mm tempered glass is required to maintain the 0.74 kN/m load rating. Consult project-specific building codes for minimum height requirements.

What is the minimum order quantity for this railing system?

Standard minimum order is 20 linear meters (approximately 10–14 panels depending on spacing). For smaller projects, we can accommodate orders as low as 10 linear meters with a 20% surcharge on unit pricing. All orders include stainless steel posts, handrails, clamps, and tempered glass panels.

How are the glass panels packaged to prevent breakage during shipping?

Each tempered glass panel is individually wrapped in polyethylene foam, then placed in a plywood crate with wooden spacers between panels. The crates are banded with steel straps and marked with handling instructions. Stainless steel components are wrapped in bubble film and packed in cardboard cartons. Shipping insurance covering glass breakage is included in FOB quotes.

Get A Quote

Contact us for customized quotation, volume pricing, and project specifications. Response within 24 hours.
