Stainless Glass Column Post | Guardrail China
balcony door. modern design. Custom sizes available. OEM/ODM from JuSen factory, China. More Than 5 Years warranty.
- Design Stylemodern
- ApplicationBalcony
- PositionBridge Railings / Handrails | Deck Railings / Handrails | Porch Railings / Handrails | Stair Railings / HandrailsShow more
- Model NumberRound or Square
- Place of OriginJiangsu | China
- WarrantyMore Than 5 Years
Product Overview
YL series stainless glass balustrades feature a 201 or 304 grade stainless steel post and frame system, paired with 12mm to 21.5mm laminated or tempered glass infill panels. The structural steel components are precision-welded and finished with a durable stained coating, ensuring corrosion resistance for continuous outdoor exposure. Each unit meets EN 14351-1 structural loading standards for safety barriers.
Key Specifications
| Material | 201 or 304 grade stainless steel (post & frame) |
| Glass Thickness | 12mm - 21.5mm (laminated or tempered) |
| Glass Type | Tempered, laminated, or heat-soaked |
| Post Spacing | 1000mm - 1500mm (customizable) |
| Finish | Stained coating (custom RAL colors) |
| Max Panel Height | 1200mm |
| Max Panel Width | 2500mm |
| Warranty | 5 years against manufacturing defects |
Available Options
- Post sizes: 40x40mm, 50x50mm, 60x60mm, 80x80mm
- Glass finishes: clear, frosted, bronze, gray, or custom tint
- Handrail options: stainless steel round or square profile, wood-grain finish
- Base mounting: floor-mounted or side-mounted with adjustable brackets
Applications

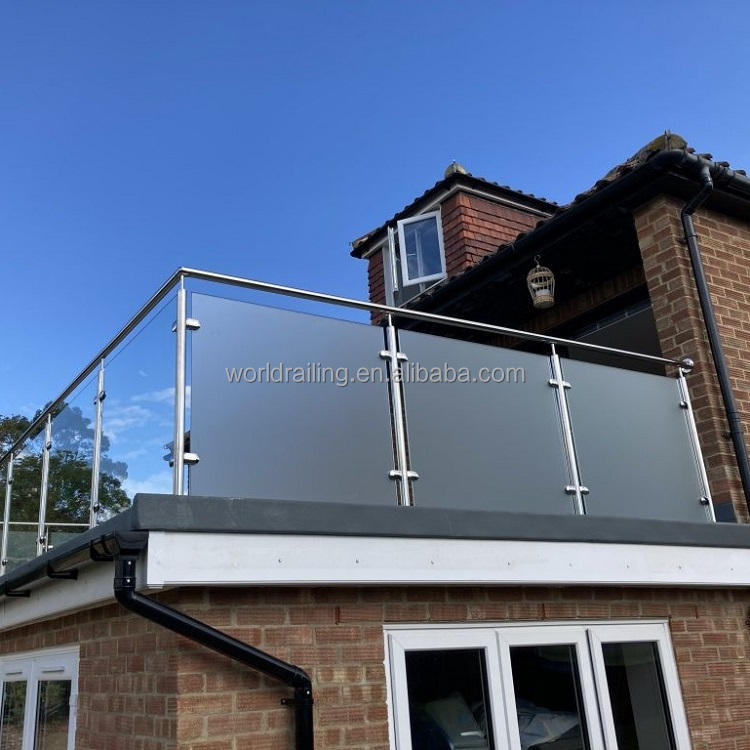

- Outdoor balcony railings for residential apartment complexes
- Commercial terrace and rooftop barriers for hotels
- Perimeter fencing for villa gardens and pool areas
- Staircase and mezzanine infill panels in retail spaces
Customization Capabilities
Post height, spacing, glass thickness, and stained coating color can be tailored per project. Custom laser-cut logos or patterns on stainless steel panels are available for branded installations.
Packaging & Shipping
Each glass panel is individually packed with reinforced cardboard and foam edge protectors, while stainless steel posts are bundled with shrink wrap and corner guards. Standard export crating for sea freight ensures damage-free delivery.
Why Choose Us
- Direct factory pricing with no middleman markup for bulk orders

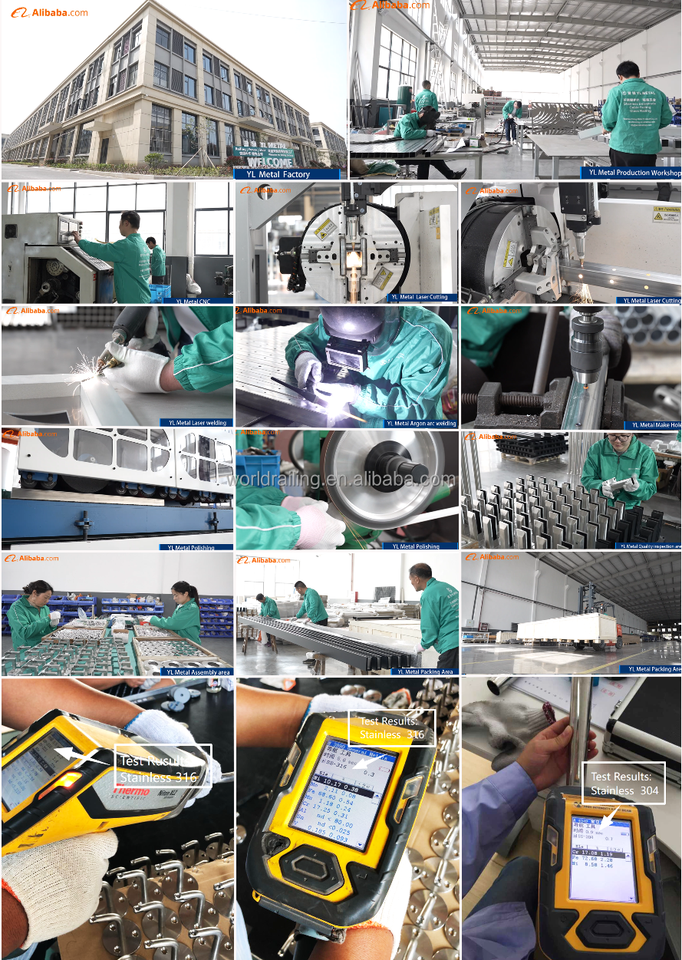

- In-house CNC cutting and welding for consistent dimensional accuracy
- Rapid prototype turnaround within 7 days for custom designs
Frequently Asked Questions
What grade of stainless steel is used for the posts and frames?
We offer 201 grade for standard indoor applications and 304 grade for coastal or high-humidity outdoor environments. Both grades are TIG-welded and pass a 72-hour salt spray test per ASTM B117.
Can the stained finish match a specific RAL color?
Yes, the stained coating can be matched to any RAL color code. A minimum order of 50 linear meters is required for custom color matching, with a lead time of 10 working days for color approval.
Is this system suitable for commercial balcony safety barriers?
This balustrade system meets EN 14351-1 loading requirements for residential and commercial barriers up to 1200mm height. For projects requiring impact resistance, we recommend 21.5mm laminated glass with interlayer PVB film.
What is the minimum order quantity for custom sizes?
For standard post spacing and glass thickness, the MOQ is 50 square meters. Custom post profiles or non-standard glass sizes require a 100 square meter MOQ.
How are the glass panels protected during international shipping?
Each glass panel is sandwiched between two layers of 5mm foam board, wrapped in bubble film, and placed in a plywood crate with internal dividers. All crates are marked with "Fragile" and "This Side Up" labels.
Get A Quote
Contact us for customized quotation, volume pricing, and project specifications. Response within 24 hours.
