Double Glazing vs Triple Glazing Windows: A Manufacturer’s Guide for Builders and Architects

Every project specification starts with a fundamental question: how much performance do you actually need? As a manufacturer that has spent over two decades producing aluminum windows for contractors, architects, and developers across different climate zones, we’ve watched this debate play out on hundreds of project drawings.

The glazing choice you make affects more than just the window’s thermal performance. It changes the frame profile, hardware specifications, installation complexity, and ultimately, your project’s bottom line. Our in-house engineering team works with clients daily to help them navigate these trade-offs based on their specific building codes, climate requirements, and budget constraints.

This guide breaks down the real differences between double and triple glazing from a manufacturing standpoint — what we build, how we build it, and what actually matters for your next project.

Understanding the Structural Difference: What We Manufacture

The physical difference is straightforward: double glazing uses two panes of glass separated by one spacer, creating a single air or gas-filled cavity. Triple glazing adds a third pane and a second spacer, creating two cavities. But this simple addition ripples through every other component of the window system.

Aluminum Frame Compatibility and Weight Loads

When we design an aluminum window system for triple glazing, the frame profiles must be deeper and the reinforcement heavier. A typical triple-glazed unit can weigh 30–50% more than its double-glazed equivalent [1]. This added weight demands stronger hinges, more robust locking mechanisms, and reinforced sash profiles.

In our aluminum processing workshops, we adjust frame designs specifically to accommodate the weight and depth of either glazing option. Our engineers calculate load distribution, wind resistance, and deflection limits for each configuration. If a client specifies triple glazing on a large sliding door, we know the bottom track needs additional reinforcement to prevent sagging over time. These are the details that don’t appear on a spec sheet but determine whether a window performs reliably ten years after installation.

Customization in Design and Profiles

The glazing choice directly affects sightlines and frame visibility. Triple glazing typically requires deeper frames, which can compromise the slim-frame aesthetics that many architects want to achieve. This is where our ODM capabilities come into play.

Because we offer full ODM customization, our design team can develop custom aluminum profiles that maintain narrow sightlines even with thicker glazing units. We’ve created bespoke profile geometries that hide the additional depth required for triple glazing, preserving the visual language of the building. When you work with a standard stockist, you’re limited to whatever profiles they carry. When you work with our factory, we can engineer the frame around your aesthetic requirements.

Thermal Performance and Energy Efficiency: The Numbers That Matter

The primary reason specifiers consider triple glazing is thermal performance. The U-value (thermal transmittance) of a window assembly determines how much heat escapes through it. Standard double glazing typically achieves U-values between 1.1 and 1.4 W/m²K, while triple glazing can reach 0.6 to 0.8 W/m²K [2].

But here’s what the marketing materials don’t always explain: the law of diminishing returns. Upgrading from single to double glazing can cut heat loss by roughly 50%. Upgrading from double to triple glazing might improve performance by another 30% — but the cost increase is often disproportionate to the energy savings in moderate climates.

Climate Considerations for Your Project Site

Where is your project located? This single question drives our glazing recommendations more than any other factor.

For projects in temperate climates — think coastal regions, southern Europe, the southern United States — high-quality double glazing with Low-E coatings and argon gas fills typically provides adequate thermal performance at a reasonable cost. Triple glazing in these regions often extends the payback period beyond the building’s practical lifespan.

For projects in severe winter climates — Scandinavia, Canada, northern China — triple glazing becomes a necessity rather than an upgrade. It prevents condensation on interior surfaces, eliminates cold spots near windows, and maintains comfortable indoor temperatures without oversized HVAC systems.

Our 20+ years of manufacturing experience means we’ve supplied windows for projects from tropical zones to sub-arctic conditions. We advise clients based on the geographical location of their projects, ensuring they don’t over-specify and waste money, or under-specify and fail compliance requirements.

Meeting Global Energy Codes and Certifications

Building regulations are tightening worldwide. Passive House standards, for example, typically mandate triple glazing to achieve the required U-values below 0.8 W/m²K [3]. If your project targets a specific green building certification, the glazing specification may already be decided for you.

Our strict quality control from raw materials to final production ensures that the thermal breaks and seals in our aluminum frames meet the standards required for whatever glazing you choose. We test our assemblies to verify that the complete window unit — not just the glass — achieves the targeted U-value. A thermally broken frame with a high-quality double-glazed unit can outperform a poorly constructed frame with triple glazing.

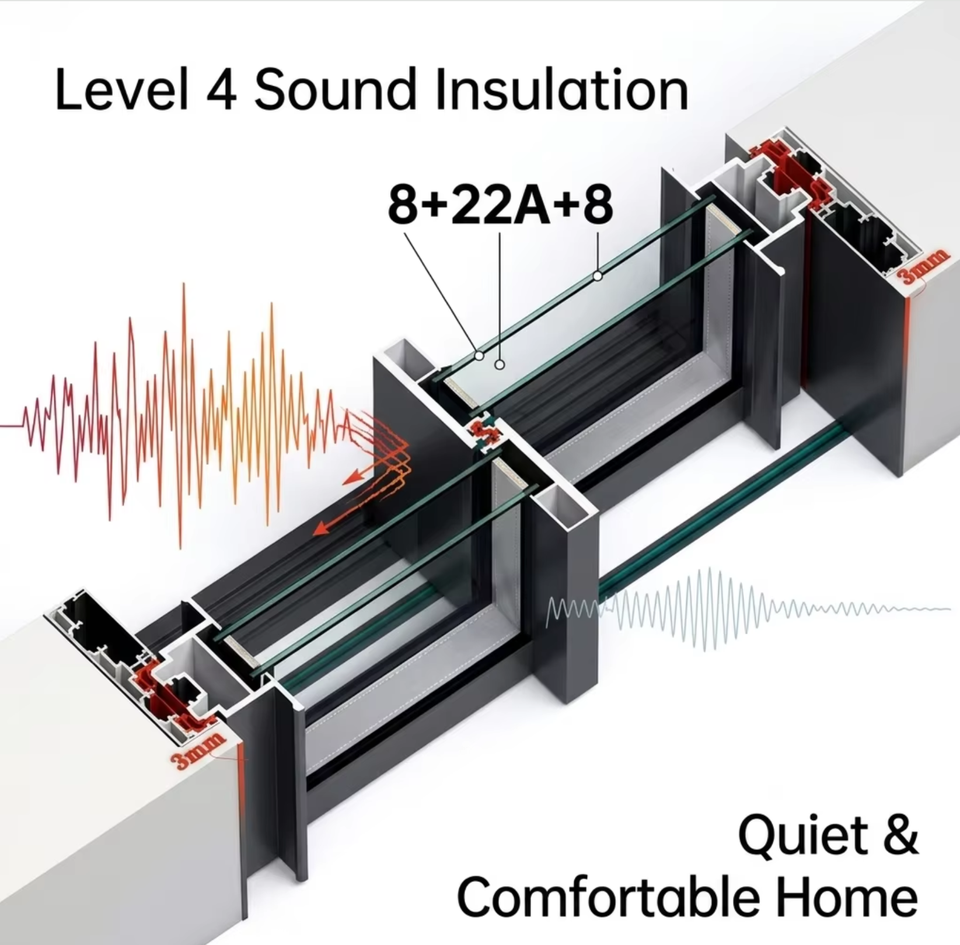

Acoustic Insulation: Noise Reduction for Urban and Commercial Spaces

Thermal performance isn’t the only reason to consider triple glazing. In urban environments, noise pollution is a significant concern for residential and commercial buildings alike. Triple glazing generally offers superior sound attenuation because the additional pane and air gap disrupt sound wave transmission.

However, the relationship between glazing configuration and acoustic performance isn’t linear. The width of the air gaps and the thickness of the glass panes often matter more than the sheer number of panes. Asymmetric glazing — using different glass thicknesses in the same unit — can achieve excellent acoustic performance with just two panes.

Tailoring Glass Specifications for Noise

Our engineering team customizes the combination of glass thicknesses and interlayer materials to achieve specific Sound Transmission Class (STC) ratings. For a project near a busy highway, we might recommend a double-glazed unit with a 6mm outer pane, a wide air gap, and a laminated inner pane with PVB interlayer. This configuration can outperform a standard triple-glazed unit for noise reduction while being lighter and more cost-effective.

The point is: acoustic performance is an engineering problem, not a simple “more panes equals better” equation. We model the acoustic behavior of different configurations and recommend the optimal solution for your specific noise source.

Application in Specific Building Types

We supply windows to villa real estate developers and hotel projects where acoustic comfort directly impacts property value and guest satisfaction. A hotel room facing a busy street needs different acoustic treatment than a villa in a quiet suburb. Our engineering support team simulates acoustic performance for each project, considering the noise source — traffic, aircraft, railway — and recommends either high-specification double glazing or triple glazing based on the measured requirements.

Cost Analysis, Weight, and Structural Load: ROI for Developers

Let’s address the practical realities. Triple glazing is significantly more expensive. The glass itself costs more, the frames need to be heavier, the hardware is more robust, and installation requires more labor. On a large development project, these costs multiply quickly.

The weight penalty is also substantial. Triple-glazed units can weigh nearly 50% more than double-glazed equivalents [4]. This affects the wall structure — you may need reinforced window openings — and the logistics of getting the units to the installation site.

Calculating the Payback Period

The energy savings from triple glazing versus double glazing depend heavily on local energy prices and climate. In most temperate regions, the utility savings take decades to recoup the initial cost difference. For a developer building to sell, the investment in triple glazing may not add equivalent value to the property.

For standard projects in moderate climates, high-quality double glazing delivers the best return on investment. We provide customized shop drawings and formal quotations within 24 hours, allowing developers to accurately compare the cost difference between double and triple glazing options upfront. This transparency ensures your budget is allocated efficiently from the start.

Logistics and Installation Complexity

Heavier units mean more complex on-site installation. Triple-glazed windows may require mechanical lifting equipment for upper floors, increasing installation time and cost. Shipping costs are also higher due to the additional weight.

Our comprehensive after-sales support includes shipping damage protection, which gives you confidence when ordering large quantities. Additionally, our flexible MOQs allow you to test a specific glazing configuration on a smaller scale — perhaps a single building or floor — before committing to a full-scale bulk supply for the entire construction project.

Our Manufacturing Capabilities: How We Ensure Quality in Both Options

Whether you choose double or triple glazing, the quality of the seal and the spacer system determines the lifespan of the window. A poorly sealed unit will develop condensation between the panes, fogging the glass and destroying the thermal performance. This is where manufacturing quality becomes critical.

Precision Engineering and Quality Control

Our factory operates its own wood drying, spray finishing, and aluminum processing workshops. This vertical integration means we control the manufacturing process from start to finish. We ensure frame tolerances are precise for the specific glazing unit, preventing seal failure and the dreaded “fogged window” problem.

The spacer system — the component that separates the glass panes — must be perfectly aligned. The desiccant inside the spacer must be properly activated. The sealant must be applied consistently. These are details that separate a window that lasts 20 years from one that fails in five. Our quality control protocols verify these parameters on every production run.

OEM and ODM Flexibility for Glazing Configurations

We are not a standard stockist. As an OEM/ODM manufacturer, we build the window around the glazing requirement, not the other way around. Need a specific spacer width to achieve a target U-value? Need a specific frame color to match your double-glazed units? Need a custom profile to accommodate triple glazing without compromising aesthetics?

Our in-house design and engineering team handles these requirements daily. We’ve produced windows for projects where the glazing specification was fixed by the architect, and we’ve advised clients who weren’t sure which configuration they needed. Either way, we execute the production with the same precision.

Making the Right Choice for Your Next Project

Here’s our practical guidance based on decades of manufacturing experience:

Choose double glazing if:

• Your project is in a temperate climate with mild winters
• Your budget is constrained and you need to maximize ROI
• The building has standard HVAC systems that compensate for envelope performance
• Your local building codes don’t mandate triple glazing
• You’re working with limited structural capacity in the walls

Choose triple glazing if:

• Your project is in a severe winter climate with extended heating seasons
• You’re targeting Passive House or similar high-performance certifications
• The site has extreme noise exposure that double glazing can’t adequately address
• Your clients specifically demand the highest thermal performance available
• The building is designed with large glazing areas that need maximum insulation

The best choice depends on your building’s location, orientation, and budget — not on which option sounds more impressive on a spec sheet. As a manufacturer that supplies both configurations, our interest is in helping you make the right decision for your specific project.

We invite you to discuss your project specifics with our engineering team. We’ll provide honest recommendations based on your requirements, not a one-size-fits-all sales pitch. Send us your project details, and we’ll respond with a tailored recommendation and formal quotation within 24 hours.

Get a Free Custom Quote

—

Frequently Asked Questions

Is triple glazing worth the extra cost for a standard residential villa?

Usually not, unless you’re building in an extreme climate. For a standard villa in a temperate region, high-quality double glazing with Low-E coatings and argon gas fills delivers excellent thermal performance at a significantly lower cost. The energy savings from triple glazing in such climates typically take decades to offset the initial price difference. We generally recommend double glazing for standard villas to maximize ROI, but we can supply triple glazing if your local building code requires it.

Can you retrofit triple glazing into existing aluminum frames?

Rarely. The frames are designed for specific glass thicknesses, and retrofitting triple glazing usually requires deeper profiles and stronger hardware than existing frames can accommodate. If you’re upgrading an existing building, we recommend new frames. We can manufacture custom aluminum frames that match your existing aesthetic while accommodating the thicker glazing unit.

What is the lead time for custom-sized triple glazing windows?

As a manufacturer with fast production lead times, we handle custom sizes efficiently. The lead time depends on the quantity and the specific aluminum profile used. Triple glazing requires additional assembly time because of the extra pane and spacer, but we’ll provide a clear production schedule within our 24-hour quotation. For bulk orders, we can often stage production to match your construction timeline.

Do you offer ODM services for unique framing profiles that fit triple glazing?

Yes, we offer full ODM customization. Our in-house design team can develop a new aluminum profile or adapt an existing one to support the weight and depth of triple glazing while maintaining your design language. We’ve created slim-profile systems that accommodate triple glazing for architectural projects where aesthetics are critical.

How do I decide which glazing to use for a commercial office building?

It depends on your HVAC system and curtain wall design. Commercial buildings often have significant internal heat gains from occupancy, lighting, and equipment, which changes the thermal calculus. We often supply double glazing with specific Low-E coatings for commercial projects to balance solar heat gain and visible light transmission, reducing cooling loads. We recommend consulting with our engineers to model the building’s energy performance before making a decision.

Comparison Table: Double vs Triple Glazing

References

[1] Efficient Windows Collaborative. “Window Technologies: Comparing Glazing Options.” https://efficientwindows.org/glazing-types

[2] International Energy Agency. “Energy Efficient Windows: A Guide for Building Professionals.” https://www.iea.org/reports/energy-efficient-windows

[3] Passive House Institute. “Window Certification Criteria for Passive Houses.” https://passivehouse.com/02_informations/02_certification/02_certification.htm

[4] Lawrence Berkeley National Laboratory. “Windows and Glazing: Thermal Performance and Weight Considerations.” https://windows.lbl.gov/window-thermal-performance
