Product Overview

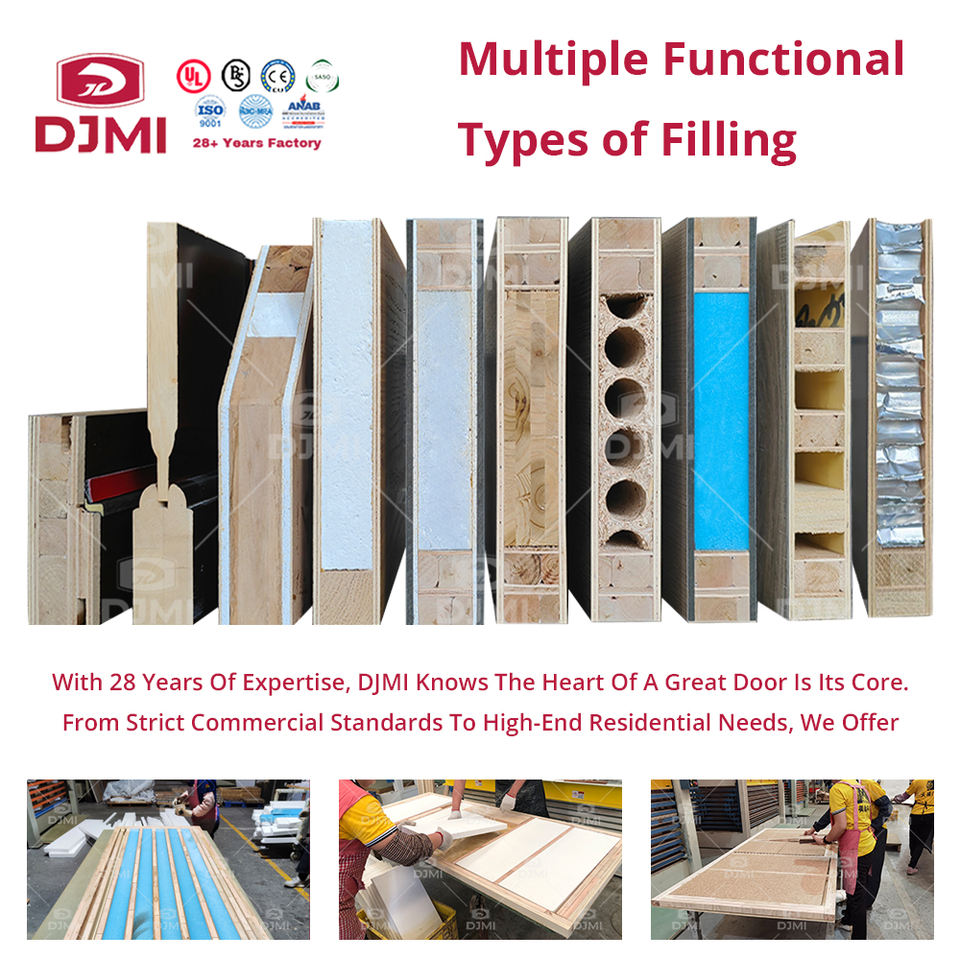

Engineered with multi-layer cross-laminated solid wood cores, these fire-rated wooden doors meet UL 10C and BS 476 Part 22 standards for 2-hour fire resistance. Constructed from kiln-dried hardwood veneers bonded with intumescent seals, each door achieves a 45-minute positive pressure fire rating with neutral pressure testing. The 45mm thick door slab incorporates a fire-retardant treated wood core and perimeter smoke seals for commercial applications.

Key Specifications

Available Options

• Custom sizes from 600 mm x 2000 mm up to 1200 mm x 2500 mm

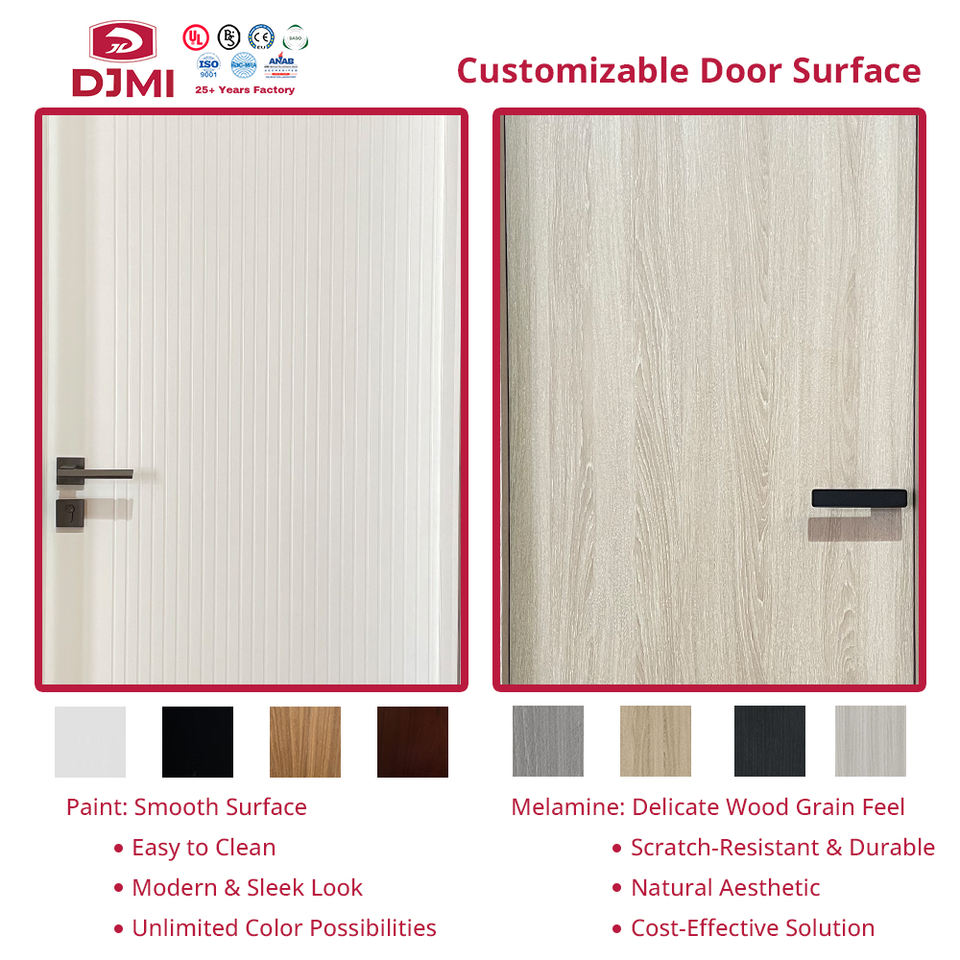

• Wood veneer finishes: oak, mahogany, cherry, teak, walnut, maple

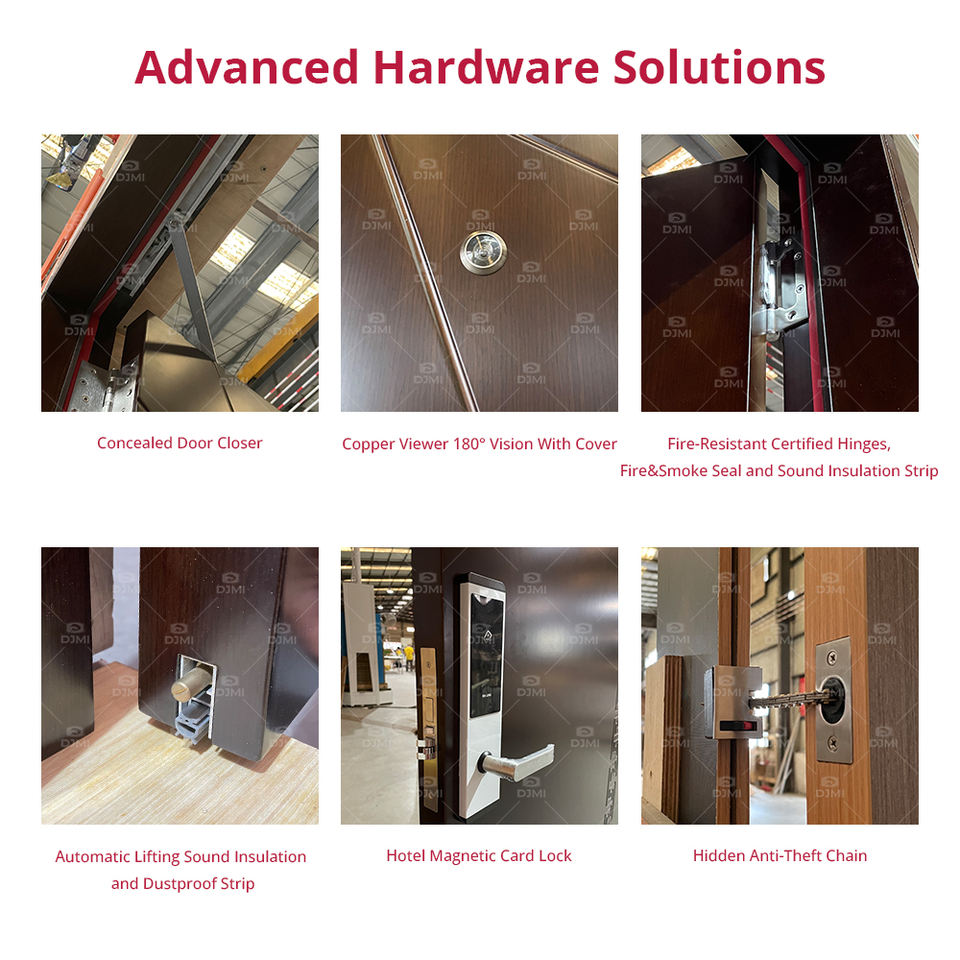

• Fire-rated hardware: self-closing hinges, panic bars, electromagnetic hold-open devices
• Fire-rated glass vision panels (wired glass or ceramic glass up to 100 mm x 300 mm)

Applications

• Stairwell enclosures in high-rise office buildings requiring 2-hour fire separation
• Corridor doors in hospitals and healthcare facilities with smoke compartment requirements
• Fire-rated exit doors in educational institutions and assembly occupancies
• Service room access doors for mechanical, electrical, and elevator machine rooms

Customization Capabilities

Doors can be manufactured to non-standard dimensions within the maximum size envelope, with custom veneer species, grain orientation, and RAL color matching. Fire-rated glass cutouts, louvers, and acoustic seals can be integrated per project specifications.

Packaging & Shipping

Each door is individually wrapped in moisture-resistant kraft paper with edge protectors, stacked on pallets with corner guards and strapped for container loading. FCL shipments use 20ft or 40ft containers with layered loading to prevent warping during transit.

Why Choose Us

• Factory-direct pricing with UL and BS certification documentation provided with every order
• Third-party fire test reports available for specific size and configuration combinations
• Custom lead times of 25–35 working days for non-standard sizes and finishes

Frequently Asked Questions

What fire certifications do these doors carry and how are they tested?

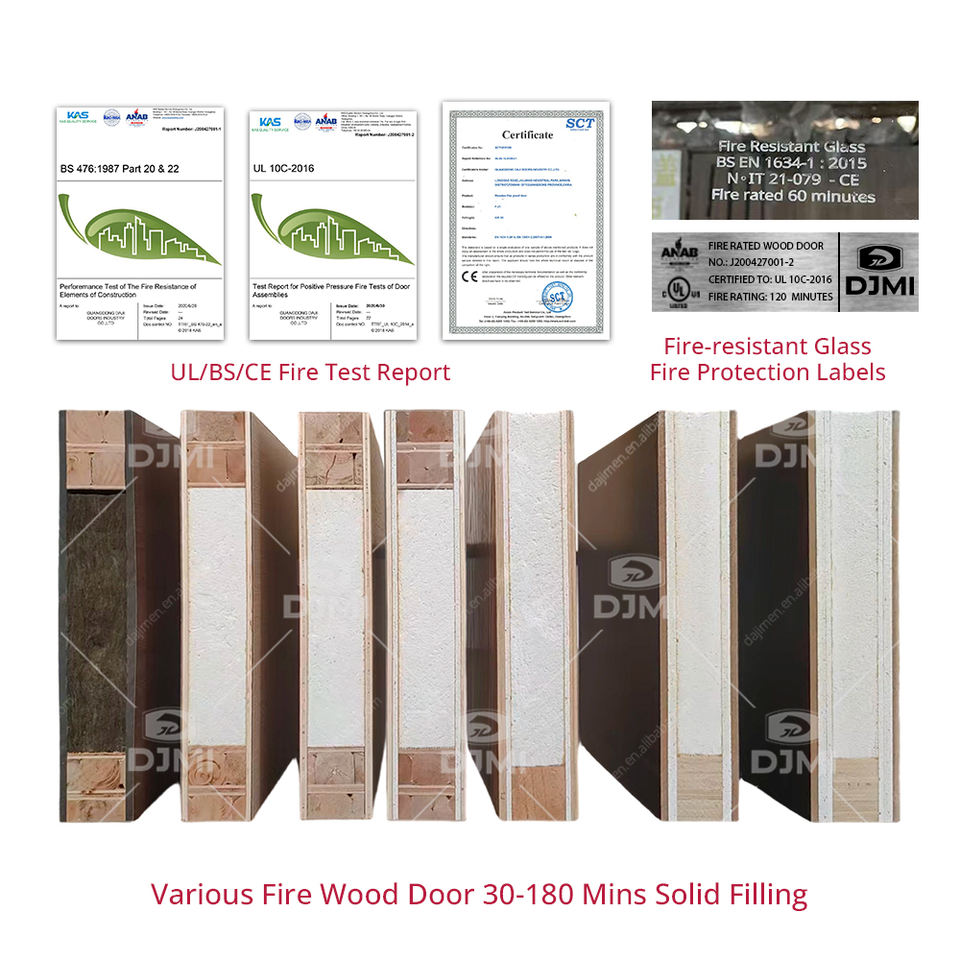

These doors are certified to UL 10C (positive pressure fire test) and BS 476 Part 22 (120-minute integrity and insulation). Testing is conducted on full-size door assemblies including frame and hardware, with hose stream test after furnace exposure. Certificates and test reports are issued per production batch.

Can I order these doors with a specific wood species not listed in standard options?

Yes, custom veneer species are available upon request. Minimum order quantity for non-standard veneers is 50 doors per species. Lead time increases by 10–15 working days for sourcing and matching grain patterns.

Are these doors suitable for exterior stairwell applications exposed to weather?

These fire wood doors are designed for interior commercial use only. For exterior applications requiring fire rating, we recommend our aluminum-clad fire-rated door series which combines wood core with weather-resistant aluminum facing.

What is the minimum order quantity for a project requiring multiple sizes?

Standard minimum order is 20 doors per size and finish combination. For mixed-size projects with at least 100 total doors, we can accommodate up to 5 different sizes with no additional setup charge. Smaller quantities are available at a 15% surcharge.

How are these doors packaged to prevent damage during ocean freight?

Doors are packed in reinforced cardboard sleeves with foam edge protectors, then stacked horizontally on wooden pallets with 8–12 doors per pallet depending on size. Each pallet is stretch-wrapped and banded with steel straps. Container loading follows a pre-planned stowage diagram to avoid shifting.
