Aluminum Slim Frame | Sliding Door | JuSen
aluminum moderndesign style door. modern design. Custom sizes available. OEM/ODM from JuSen factory, China.
- Design Stylemodern
- ApplicationModernDesign Style
- Place of OriginChina
- Door Materialaluminum
- Door Typesliding door
- Opening Methodsliding
- Certificationce
Product Overview

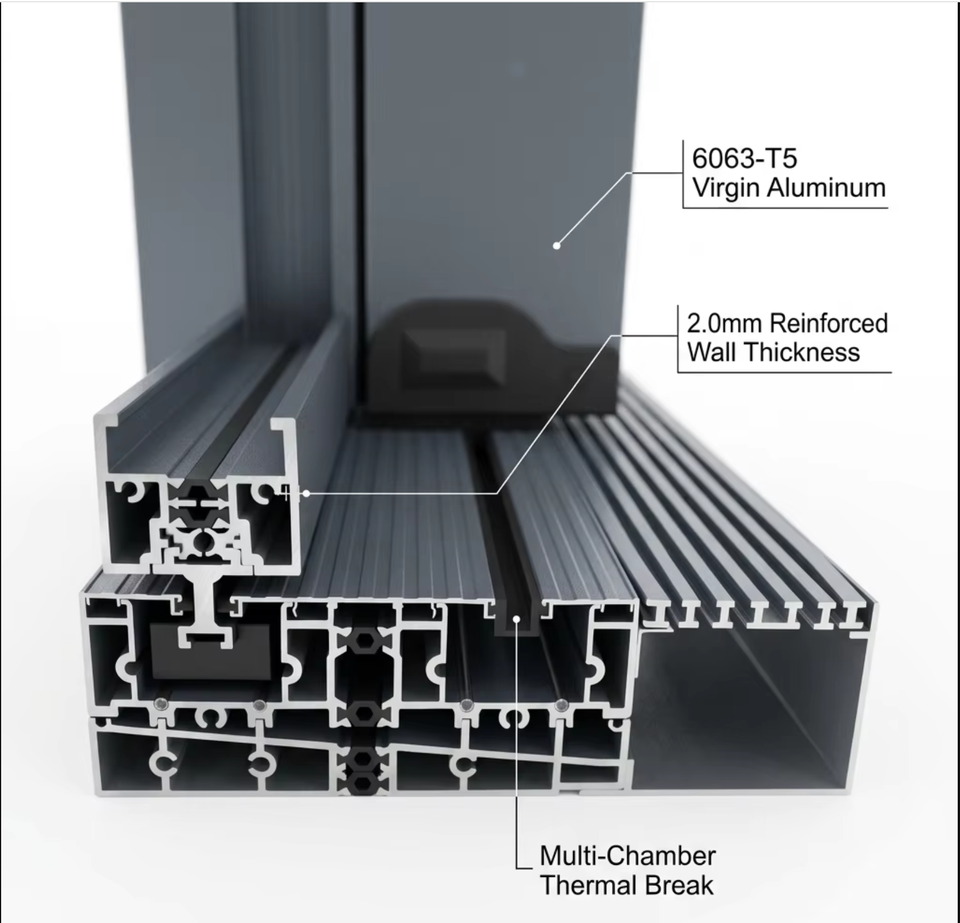

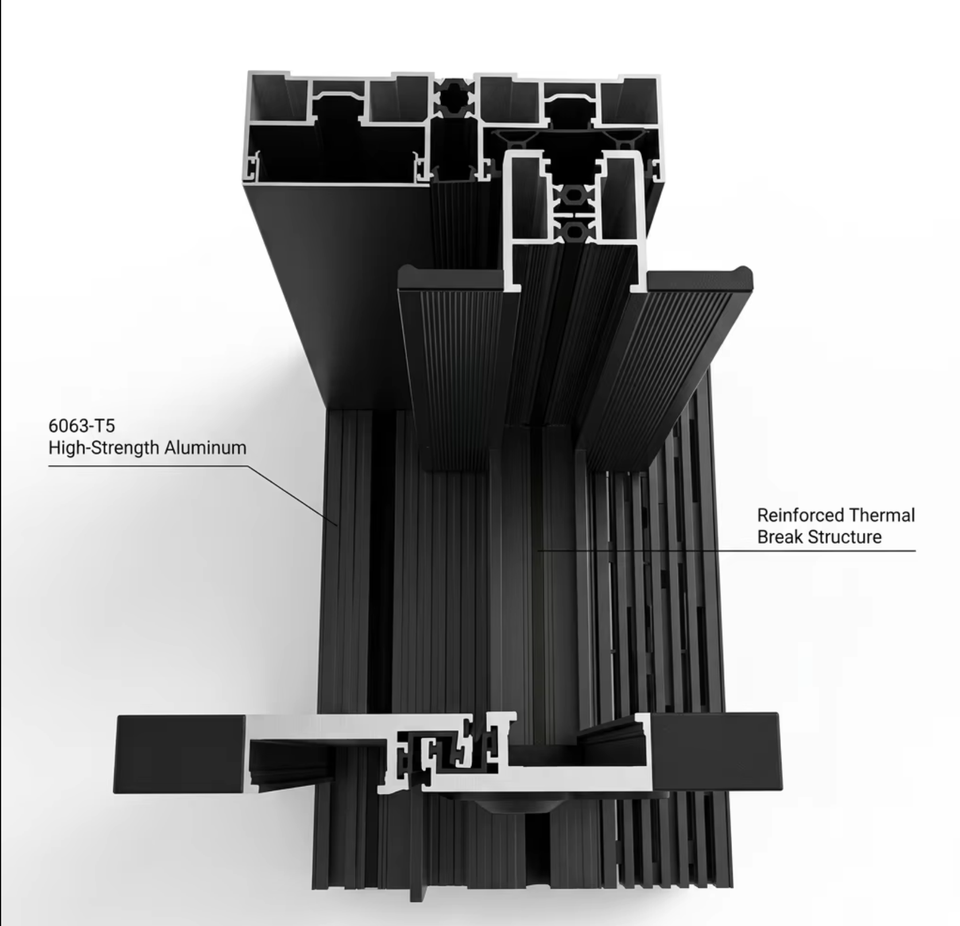

Engineered from 6063-T5 aluminum alloy with a slim 35mm frame profile, this sliding door system integrates a tempered glass panel for seamless interior-exterior transitions. Certified to EN 14351-1 for air permeability and water tightness, the industrial-grade track system supports panels up to 2.5m in height for residential and commercial balcony applications.
Key Specifications
| Material | 6063-T5 aluminum alloy frame |
| Door Thickness | 35mm frame profile |
| Fire Rating | Not applicable (standard sliding door) |
| Core | Tempered glass panel (5mm or 6mm) |
| Finish | Powder-coated RAL colors or anodized silver |
| Max Size | 2500mm (W) x 3000mm (H) |
| Warranty | 5 years against manufacturing defects |
Available Options
- Size: Custom widths from 800mm to 2500mm, heights from 2000mm to 3000mm
- Finish: 50+ RAL colors, anodized silver, or wood-grain foil
- Hardware: Stainless steel sliding rollers, single or double track, optional lock set
- Glass: Clear, frosted, or low-E tempered glass; 5mm or 6mm thickness
Applications
- Residential balcony enclosures in high-rise apartments
- Office partition walls for natural light flow
- Retail storefront entrances with minimal sightlines
- Hotel terrace or patio access doors
Customization Capabilities
Frame width can be adjusted from 30mm to 45mm, with custom RAL color matching and glass type selection. Track length can be extended up to 6m for multi-panel configurations.
Packaging & Shipping
Each door is disassembled and packed in foam-lined wooden crates to prevent transit damage, with separate boxes for hardware and glass. Standard shipping via 20ft or 40ft container, with FOB or CIF terms available.
Why Choose Us
- Direct factory pricing with no middleman markup
- EN 14351-1 certified production for European-standard performance
- Custom RAL color matching with 10-day lead time for small orders
Frequently Asked Questions
What aluminum alloy grade is used in the frame?
All frames are extruded from 6063-T5 aluminum alloy, offering a tensile strength of 180 MPa and corrosion resistance for outdoor balcony exposure.
Can the glass panel be replaced with a different type?
Yes, the standard configuration uses 5mm tempered glass, but 6mm laminated or low-E glass can be specified for enhanced thermal insulation or safety requirements.
Is this door suitable for high-wind coastal areas?
With the industrial-grade track system and optional wind load reinforcement, the door can withstand wind pressures up to 2.0 kPa, making it suitable for coastal zones when properly installed.
What is the minimum order quantity for custom sizes?
Custom sizes are available with a minimum order of 20 units per specification, though smaller quantities can be accommodated for sample orders.
How is the door packaged for international shipping?
Each door is wrapped in protective film, foam-padded, and packed in a wooden crate. Glass panels are shipped in separate reinforced boxes with corner protectors.
Get A Quote
Contact us for customized quotation, volume pricing, and project specifications. Response within 24 hours.
Quality Certifications & Standards
Frequently Asked Questions
What is the MOQ for this door?
Can it be custom-sized and branded?
What is the production lead time?
Which certifications apply?
Which ports do you ship from?
Ready To Order Aluminum Slim Frame | Sliding Door | JuSen?
Send us your sizes, colors and quantities. Our team replies with a specification sheet, sample plan and factory-direct quotation — usually within 24 hours.
