Aluminum Casement Door Tempered Glass – Villa Entry Exterior

Product Overview

Engineered for villa and residential entry applications, this modern aluminum casement door features a 6063-T5 aluminum alloy frame with a minimum wall thickness of 2.0 mm for structural rigidity. Tempered glass panels, meeting ASTM C1048 safety standards, are integrated with a multi-point locking system to provide enhanced security and resistance against forced entry. The hinged casement design allows for outward or inward opening, facilitating natural ventilation without compromising the door’s thermal and acoustic performance.

Key Specifications

Available Options

• Size: Custom widths from 800 mm to 1200 mm; heights from 2000 mm to 2400 mm
• Finish: 200+ RAL powder coat colors, or anodized finishes in silver, bronze, and black
• Hardware: Multi-point locking system (HOPPE or similar), stainless steel hinges, optional handle finishes (matte black, satin chrome)

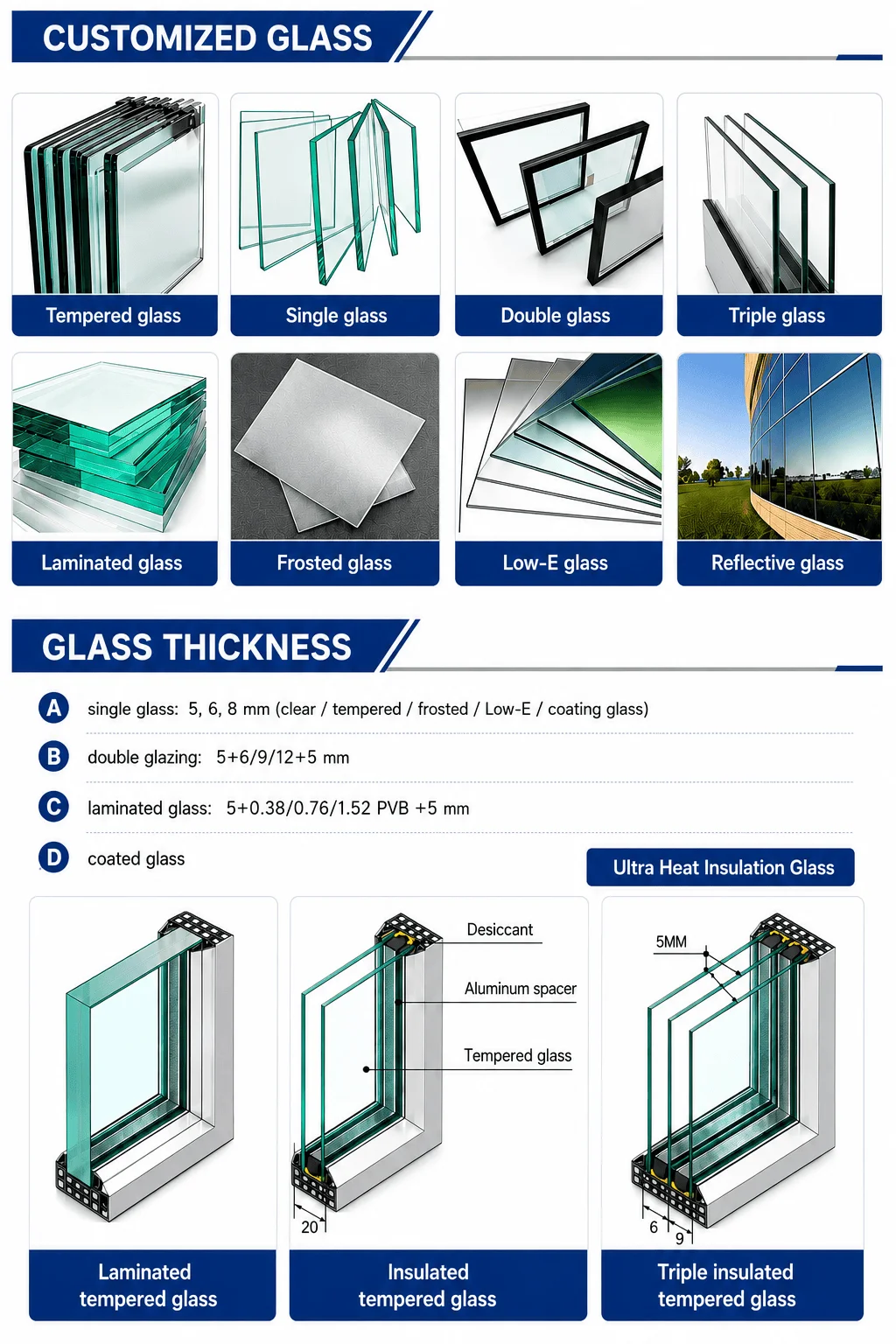

• Glass: 5 mm + 12A + 5 mm double-glazed tempered glass; optional Low-E coating or argon gas fill for improved insulation

Applications

• Primary entry doors for private villas and luxury residences
• Rear or side entrance doors in residential projects requiring natural light and ventilation
• Garden or patio access doors in high-end housing developments
• Entrance doors for boutique hotels or resort villas

Customization Capabilities

Frame dimensions, glass specifications, hardware configurations, and finish colors can be tailored to match project-specific architectural requirements. Custom sizes up to 1200 mm x 2400 mm are available with standard lead times.

Packaging & Shipping

Each door is individually wrapped in EPE foam and secured in a plywood crate with protective corner guards. Shipping is via FCL (full container load) or LCL (less than container load) with standard export packing ensuring zero damage during transit.

Why Choose Us

• Factory-direct production with 14 JuSen Doors experience

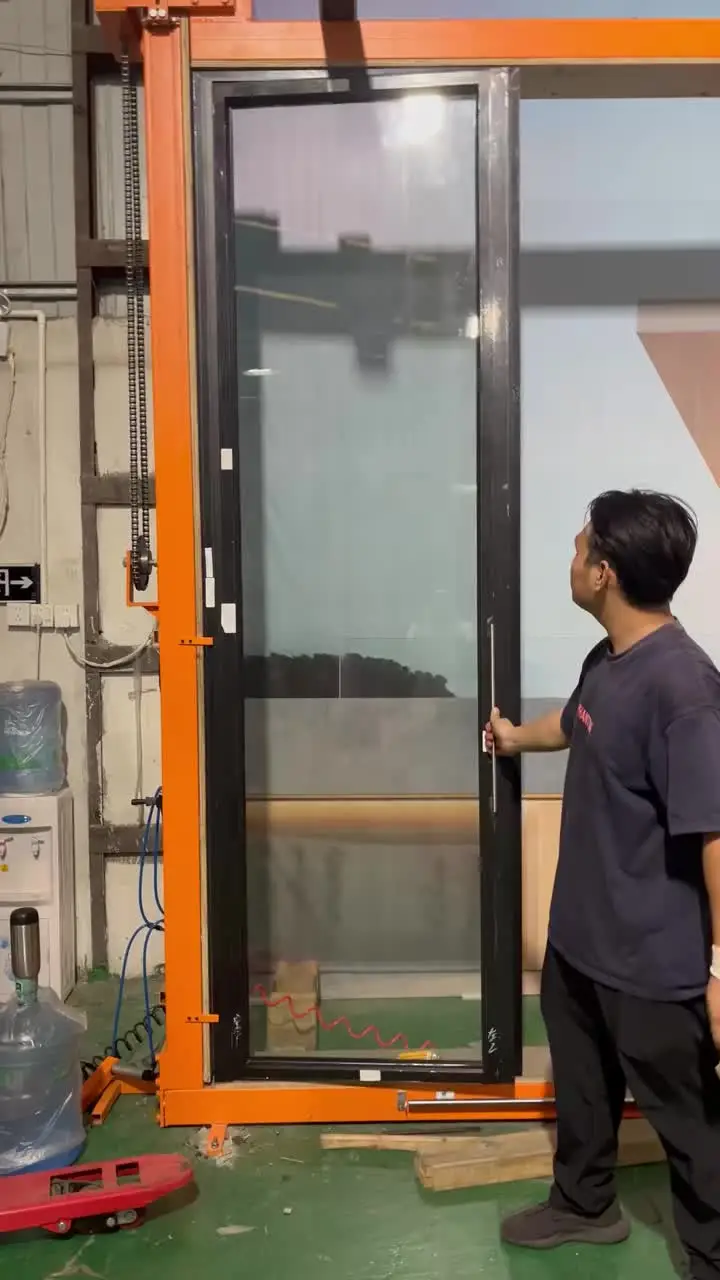

• Strict quality control: each door undergoes dimensional, hardware function, and glass impact tests before shipment
• Flexible MOQ of 50 units per order for custom specifications

Frequently Asked Questions

What is the standard glass thickness used in this casement door?

The standard configuration uses 5 mm tempered glass for each pane, with a 12 mm air gap (5+12A+5) for double glazing. For enhanced thermal performance, Low-E coating or argon gas fill can be added, increasing the overall U-value to approximately 1.8 W/m²K.

Can the door be customized to fit non-standard openings?

Yes, the frame can be manufactured to any width between 800 mm and 1200 mm, and height between 2000 mm and 2400 mm. Custom sizes require a minimum order of 50 units and a lead time of 25-30 days after design approval.

Is this door suitable for coastal environments with high salt exposure?

The 6063-T5 aluminum frame with anodized finish provides corrosion resistance in coastal areas. Powder-coated finishes are also available but may require periodic maintenance. We recommend anodized finishes for direct seaside installations.

What locking system is included, and can it be upgraded?

JuSen Doorsludes a multi-point locking system with three locking points (top, middle, bottom). Upgrades to HOPPE or similar European multi-point systems with anti-pick cylinders are available at an additional cost.

What is the typical lead time for a sample order?

For a standard size and finish sample, lead time is 15-20 working days. Custom samples may require 25-30 working days. All samples are shipped via express courier with full packaging protection.

Get A Quote

Contact us for customized quotation, volume pricing, and project specifications. Response within 24 hours.
