Door Frame & Sliding Track Systems

Precision engineered frame & rail solutions for residential, commercial and hospitality projects — manufactured in our 28,000 m² facility to architectural tolerances.

002 — Applications

Engineered for every architectural context.

06 / Application Verticals

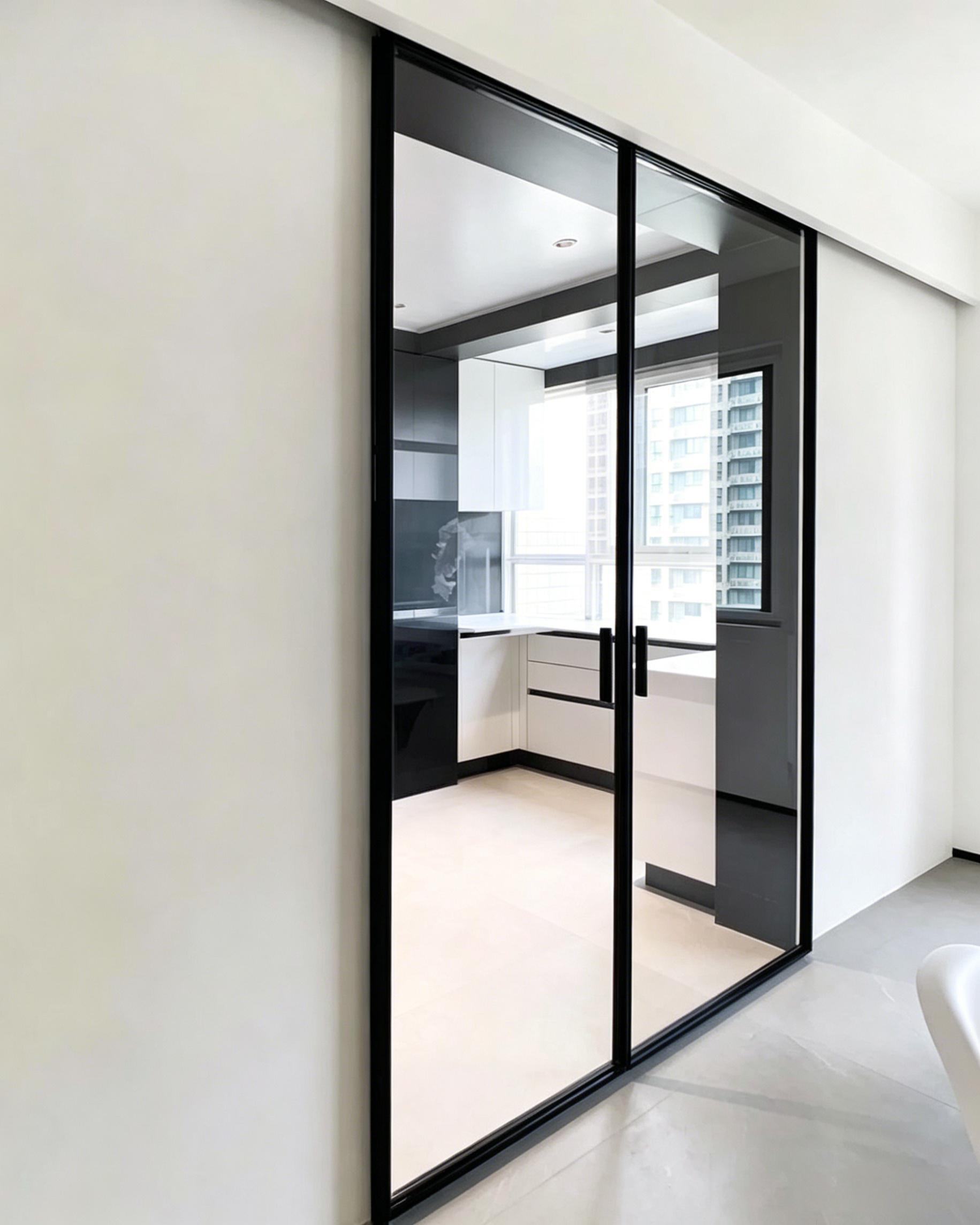

Residential Sliding Doors
Residential Sliding Doors

Frameless and minimal-frame systems for premium homes.

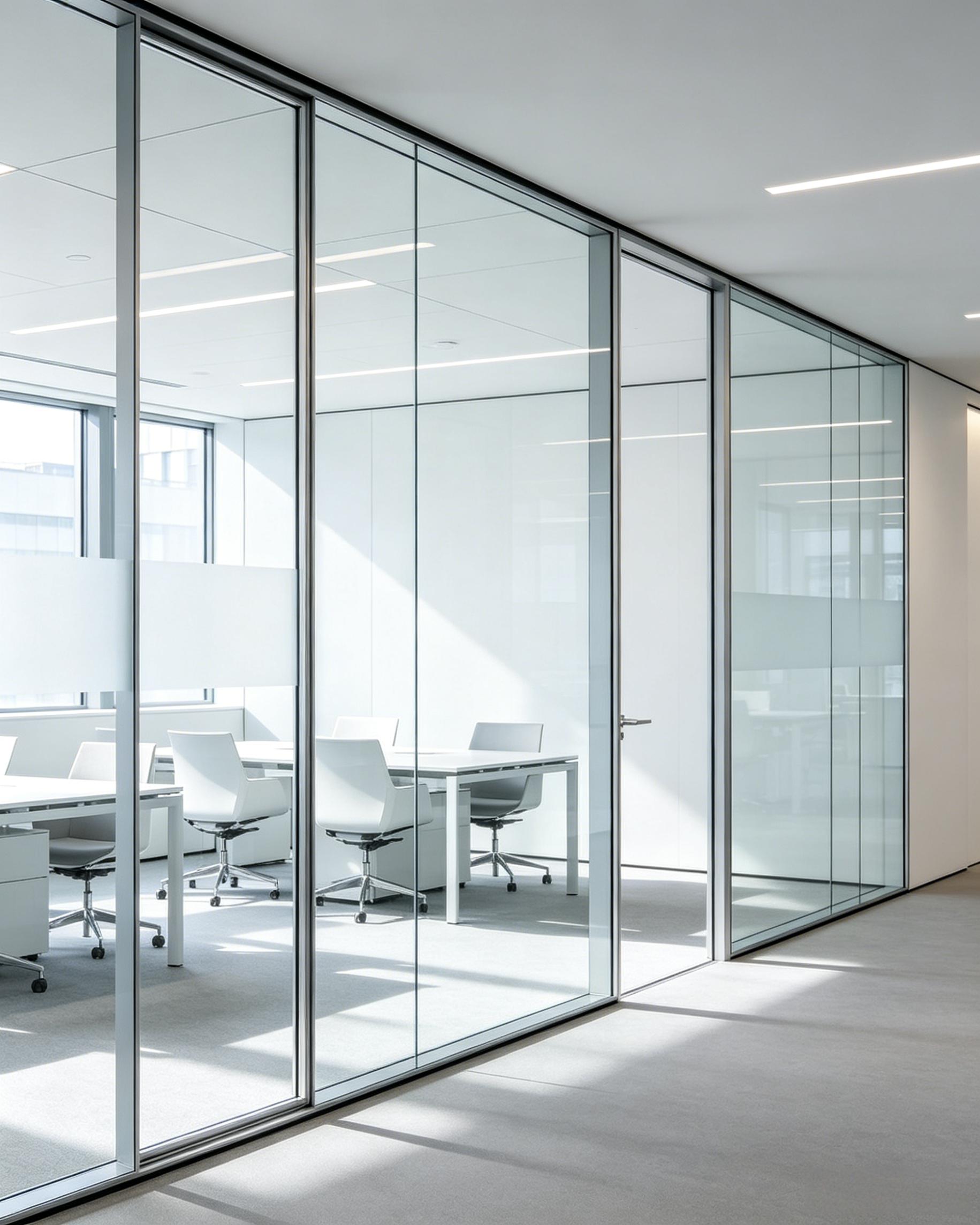

Commercial Office Partitions
Commercial Office Partitions

Acoustic-rated glass partitions with concealed rails.

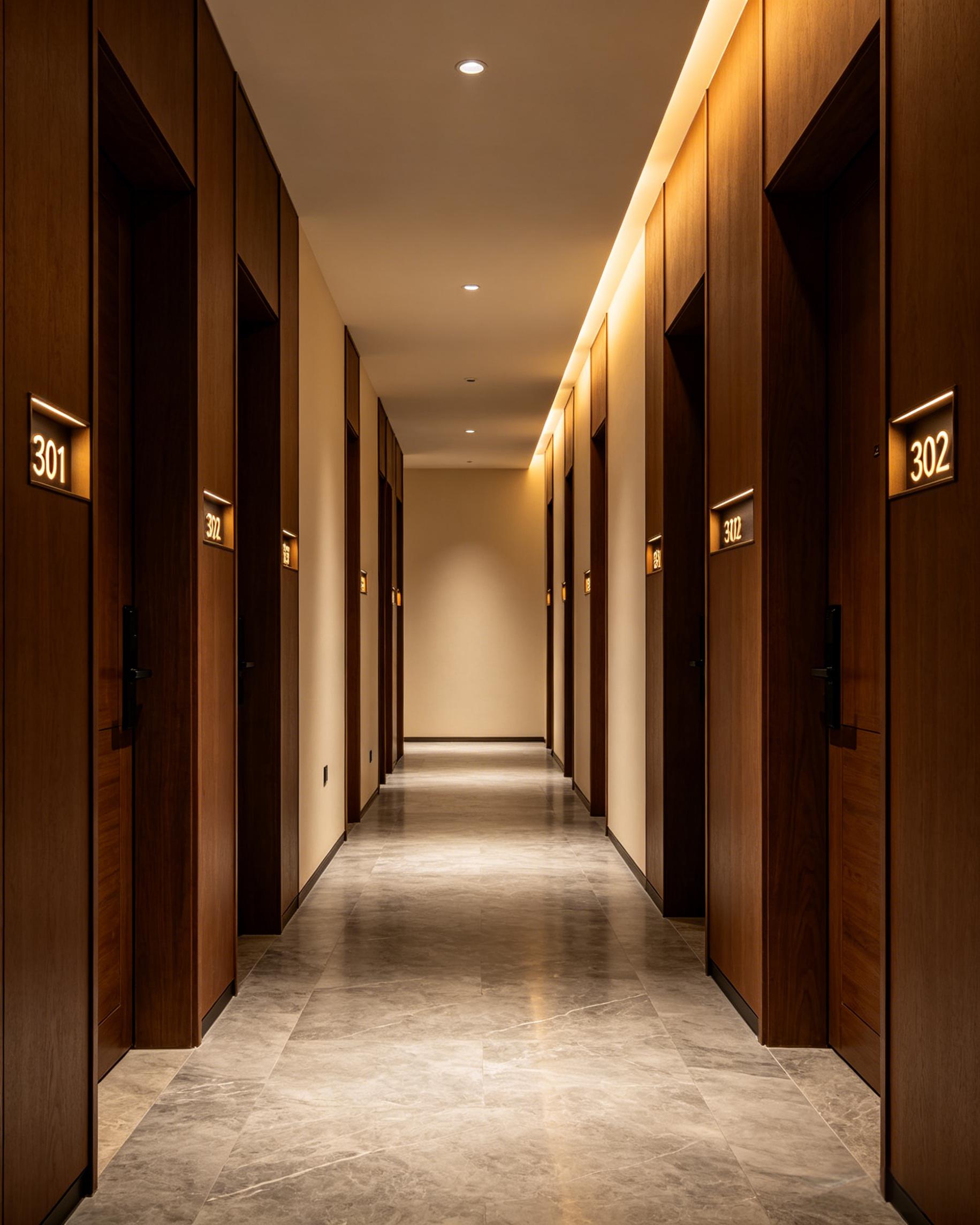

Hotel Door Systems

Hotel Door Systems

Hospitality-grade hardware with whisper-soft motion.

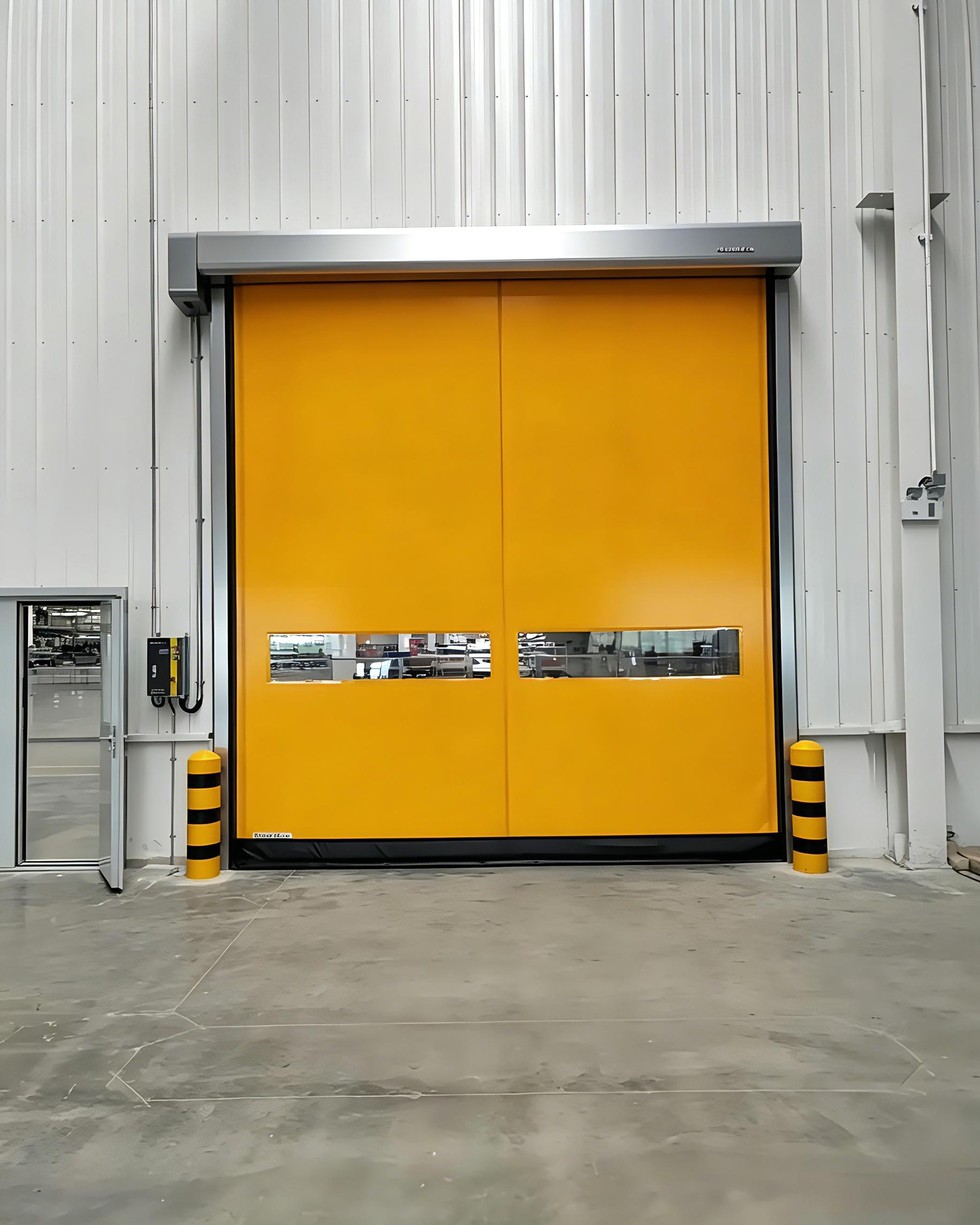

Heavy Duty Industrial Doors

Heavy Duty Industrial Doors

Engineered for 500kg+ panels and high-cycle environments.

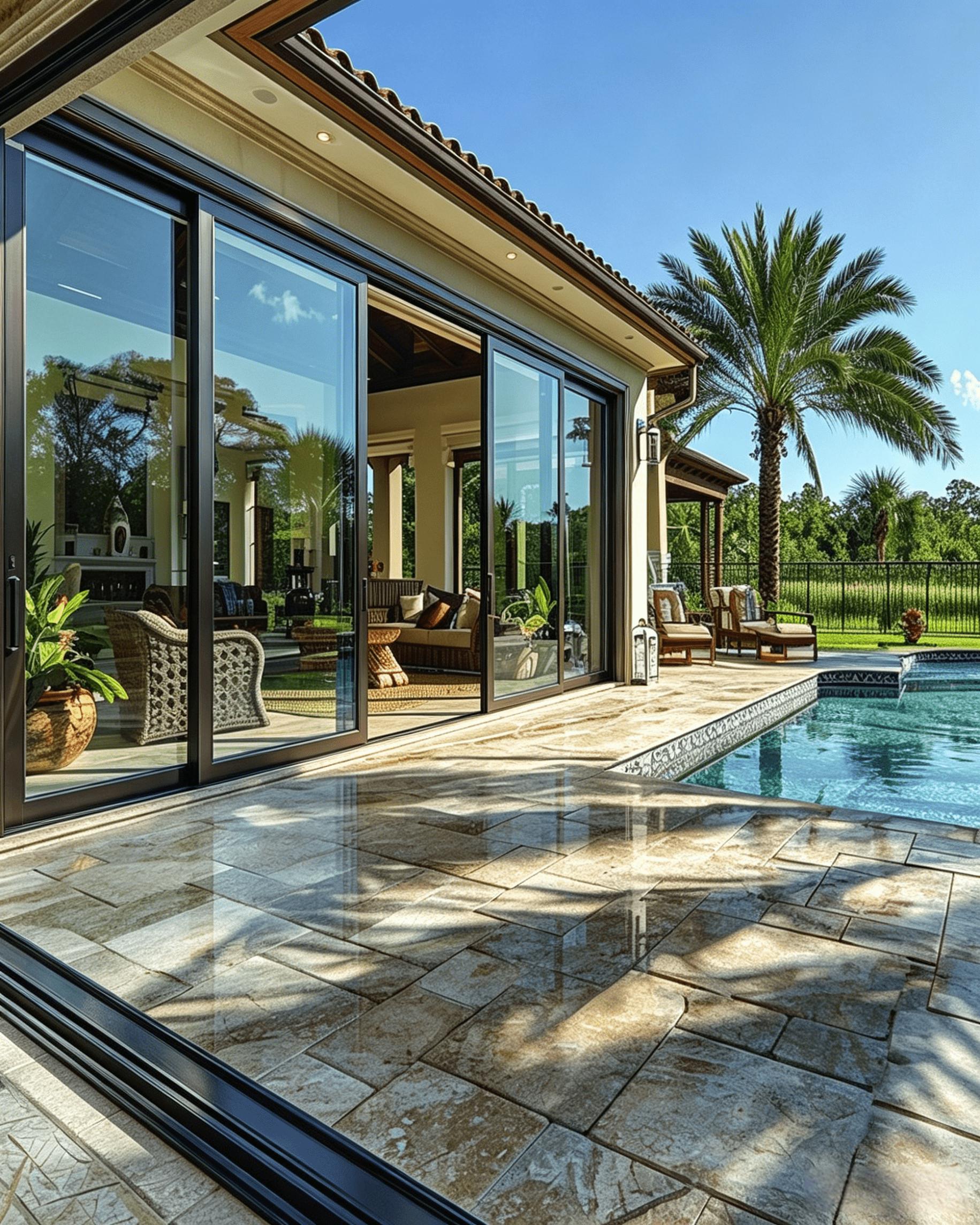

Luxury Villa Systems

Luxury Villa Systems

Floor-to-ceiling architectural sliding solutions.

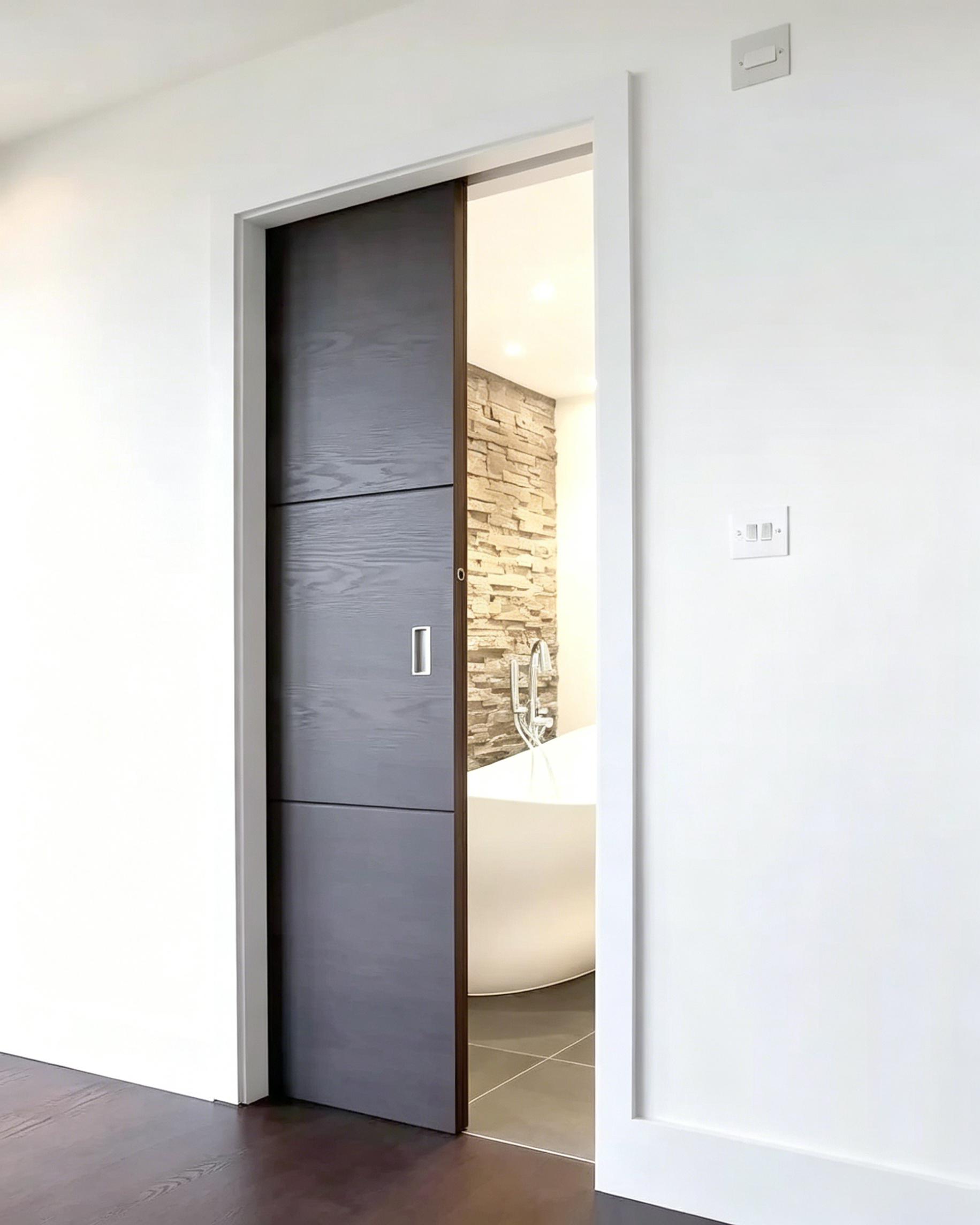

Pocket Door Solutions

Pocket Door Solutions

Concealed in-wall cassette systems for clean interiors.

003 — System Catalogue

Six core track systems. Infinite configurations.

Each system is manufactured from extruded aluminum or cold-rolled steel, finished in our in-house anodizing line, and validated through cycle-testing prior to dispatch.

TR/84

Concealed Sliding Track

Ceiling-recessed rail with invisible mechanism for minimal architectural lines.

LOAD≤ 120 kg
SPAN≤ 3000 mm
CYCLE200,000+
TR/85

Heavy Duty Rail System

Industrial-grade twin-roller assembly for oversized and security panels.

LOAD≤ 580 kg
SPAN≤ 6000 mm
CYCLE500,000+
TR/86

Pocket Door Frame System

Pre-assembled in-wall cassette with steel reinforced jambs.

WALL100-150 mm
DOOR≤ 1100 mm
FINISHDrywall ready
TR/84

Barn Door Hardware

Architectural exposed-track barn system in matte black & brushed steel.

TRACKSolid steel
LOAD≤ 180 kg
LENGTHCustom
TR/85

Aluminum Frame Track

Thermal-break extruded profile for premium glass door applications.

PROFILE6063-T5
ANODIZE25 µm
GLASS8-12 mm
TR/86

Soft Close Track System

Hydraulic dual-action damper for silent end-of-travel closure.

DAMPBi-directional
SPEEDAdjustable
NOISE< 25 dB
004 — Technical Structure

The anatomy of precise motion.

DRAWING — AX/CS-2400
SCALE — 1:5 / METRIC
REV — 04 / 2024

System Layers

Cross-section component reference for AX/TR-9000 series.

L.01
Top Track Profile
6063-T5 ALUMINUM
L.02
Roller Assembly
SEALED BEARINGS
L.03
Anti-jump Bracket
STAINLESS 304
L.04
Door Panel Carrier
ADJUSTABLE ±5MM
L.05
Soft-close Damper
HYDRAULIC DUAL
L.06
Floor Guide
CONCEALED CHANNEL

FIG. 02 — CONCEALED RAIL CROSS-SECTION

SHEET 1/4

005 — Engineering Advantages

Built on tolerances, not compromises.

01
Precision Manufacturing
CNC-machined to ±0.05 mm tolerance across all extruded aluminum profiles and rail assemblies.
02
Heavy Load Capacity
Validated rail systems supporting oversized sliding panels up to 500 kg per assembly.
03
Silent Sliding Technology
Sealed bearing carriers tested below 25 dB under full operational sliding conditions.
04
Corrosion Resistance
Marine-grade anodizing with 1000-hour salt spray resistance for harsh environments.
05
OEM / ODM Customization
In-house tooling for bespoke profiles, surface finishes and branded packaging.
06
International Project Experience
Delivered to hospitality, residential and commercial projects across 42 countries.
006 — Installation Process
standard installation cycle - typically
completed in 4-6 working hours per opening.

From shop floor
to specification.

Step 01
Step 02
Step 03
Step 04
Step 05

Frame Positioning

Wall opening surveyed and aluminum frame plumbed to laser reference.

Rail Installation

Track fastened to engineered substrate using calibrated torque sequence.

Door Hanging

Carriers seated and panels hung onto rail with anti-jump engagement.

Alignment
Adjustment

Vertical and lateral micro-adjustment via integrated cam mechanism.

Final Testing

Cycle test, soft-close calibration and acoustic verification handed-over.

007 — Selected Projects

Specified by global architects.

42 Countries
1,200+ Projects
Since 2008
088 - INQUIRY

Technical questions,
answered.

For project-specific engineering enquiries, our specification team responds within 24 hours.

CONTACT SPECIFIER
q.01 What is the best track system for heavy doors?
+
Our heavy-duty aluminum track system (Model HD-800) is designed for doors up to 800kg per panel, featuring reinforced extruded aluminum and precision ball bearings for smooth operation even under heavy loads.
q.02 Can concealed tracks support large panels?
+
Yes, our concealed track systems are engineered to support panels up to 1200mm wide and 300kg weight, with structural reinforcement required in the ceiling/substrate to ensure load-bearing capacity.
q.03 Are your systems soft-close compatible?
+
All our track systems are compatible with both hydraulic and mechanical soft-close dampers, which can be integrated during manufacturing or retrofitted to existing installations.
q.04 Do you provide OEM customization?
+
We offer full OEM customization including custom track lengths, finish colors, branding engraving, and bespoke hardware configurations to meet project-specific requirements.
q.05 What materials are available?
+
Our track systems are available in extruded aluminum (standard), stainless steel (for corrosive environments), and carbon steel (for ultra-heavy applications), with finishes including anodized, powder-coated, and brushed metal.
q.06 Can you provide installation drawings?
+
Yes, our engineering team provides detailed 2D and 3D installation drawings, including shop drawings, anchor point layouts, and assembly instructions, typically within 48 hours of request.
Build your next door system project with precision engineering.
Get a Quote
Get a Quote
